C H A P T E R 2
Setting Up the
VelociCalc
The Model 9600 Series VelociCalc
powered in one of two ways: four (4) size AA batteries or the optional
AC/DC power supply.

Installing the Batteries

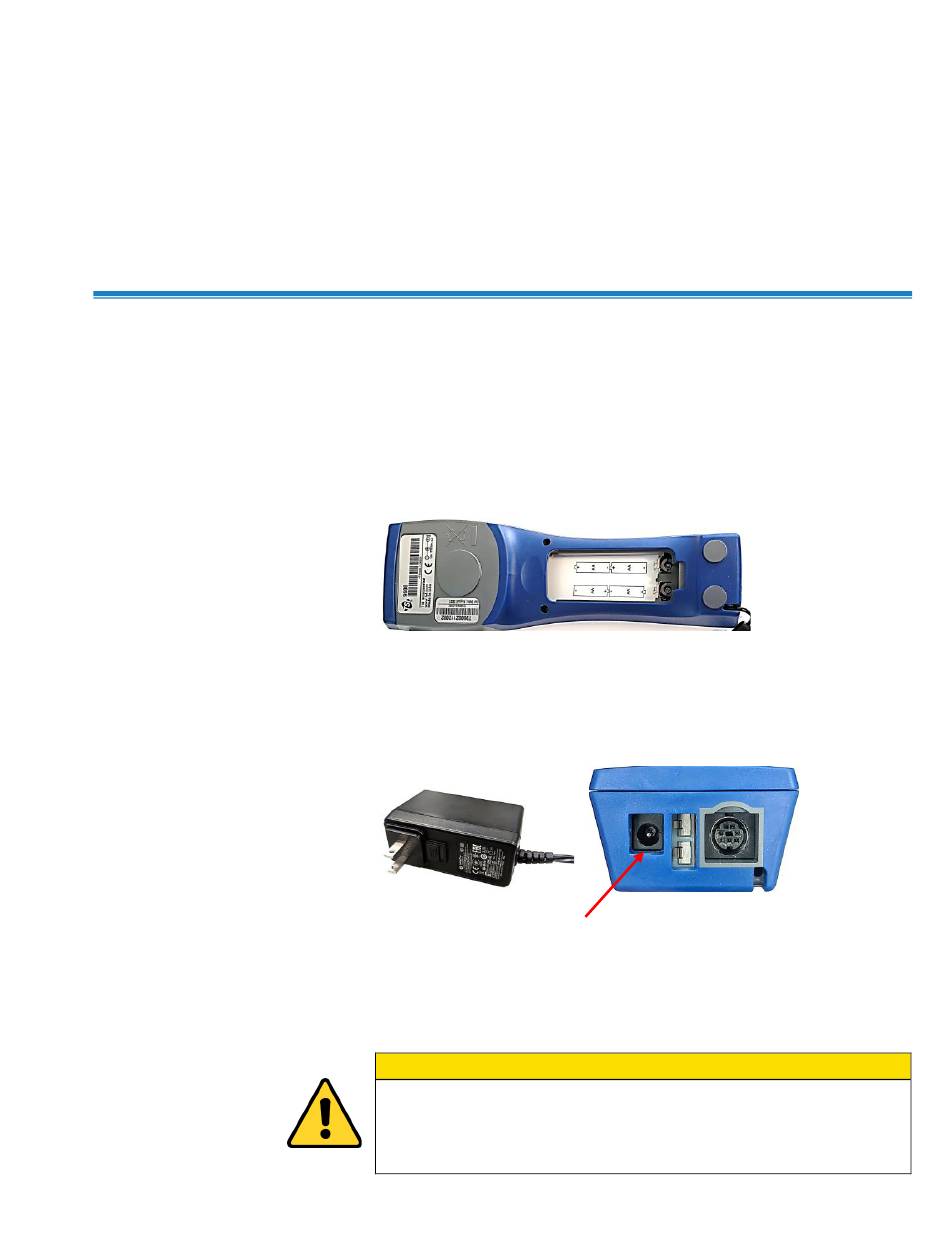

Insert four (4) size AA batteries as indicated by the diagram located
on the inside of the battery compartment.

Using the AC/DC Power Supply

The optional AC/DC power supply (800122) can be used to power the
instrument. Be sure to provide the correct voltage and frequency,
which is marked on the back of the AC/DC power supply.
AC/DC Power Supply Input
When the AC/DC power supply is connected, the instrument will
automatically turn ON. To turn the instrument off, disconnect the
AC/DC power supply. If batteries are installed, press the power button
for 3 seconds.
Use only the approved AC/DC power supply (TSI
) and DO NOT substitute another adapter or use a computer
800122
to supply power. Use of an incorrect power supply can cause the
measurements to be inaccurate.
Meter
®
®
M e t e r
®
Air Velocity Meter can be
