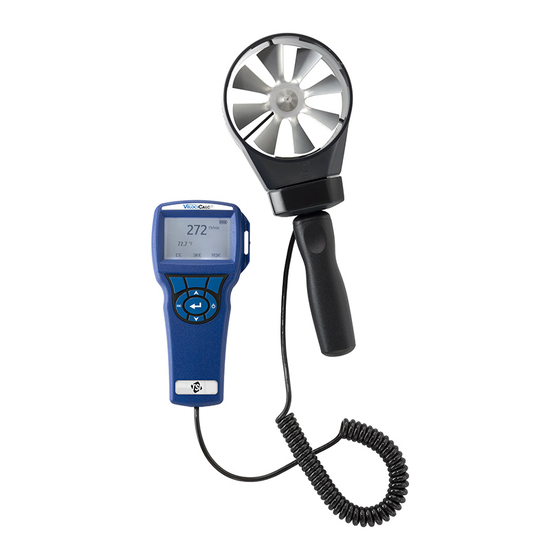

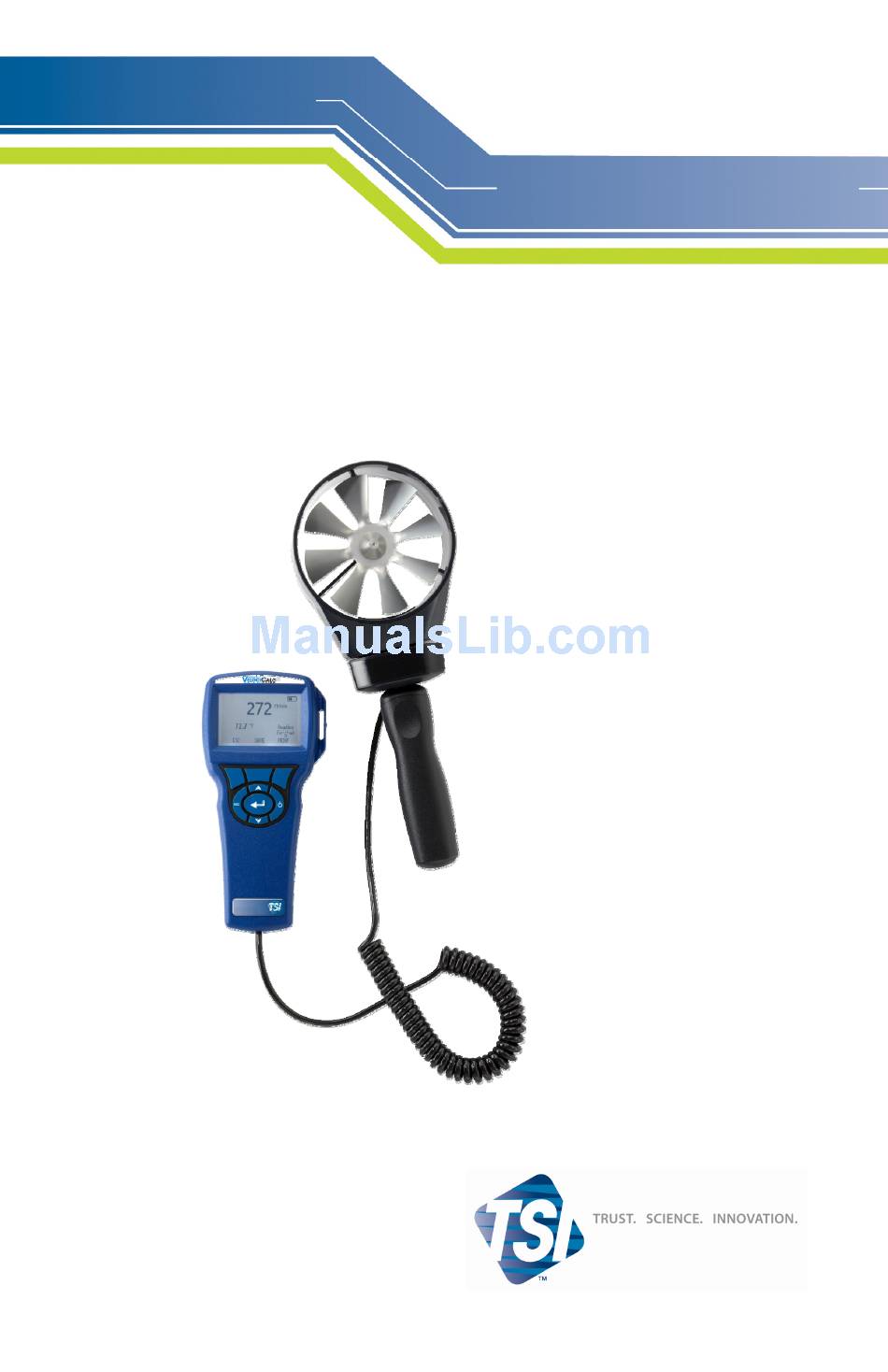

- Page 1 ENERGY AND COMFORT Ventilation Testing ® ELOCI Air Velocity Meter Model 5725 Operation and Service Manual...
- Page 2 Copyright© TSI Incorporated / June 2007 / All rights reserved. Address TSI Incorporated / 500 Cardigan Road / Shoreview, MN 55126 / USA Fax No. (651) 490-3824 LIMITATION OF WARRANTY AND LIABILITY (effective July 2000) Seller warrants the goods sold hereunder, under normal use and service as described in the operator's manual, shall be free from defects in workmanship and material for twenty-four (24) months, or the length of time specified in the operator's manual, from the date of shipment to the customer.
-
Page 3: Table Of Contents
CONTENTS CHAPTER 1 UNPACKING AND PARTS IDENTIFICATION .... 1 CHAPTER 2 SETTING-UP..............3 Supplying Power to the Model 5725..........3 Installing the Batteries ...............3 Using the Optional AC Adapter ..........3 Attaching the Handle ..............3 Using the Optional Articulating Extension ......... 3 Connecting to a Computer..............3... -
Page 5: Chapter 1 Unpacking And Parts Identification
Chapter 1 Unpacking and Parts Identification Carefully unpack the instrument and accessories from the shipping container. Check the individual parts against the list of components below.. If anything is missing or damaged, notify TSI immediately. 1. Carrying case 2. Instrument 3. -
Page 7: Chapter 2 Setting-Up
Connect the end labeled “COMPUTER” to the computer USB port and the other end to the data port of the Model 5725. Then run the LogDat2 downloading software. Within the LogDat2 software, either select... - Page 8 LogDat2™ Downloading Software. Caution: This symbol is used to indicate that the data port of the Model 5725 is not intended for connection to a public telecommunications network. Connect the USB data port only to another USB port. Chapter 2...
-
Page 9: Chapter 3 Operation
Chapter 3 Operation Keypad Functions ON/OFF Key Press to turn the Model 5725 on and off. During the power up sequence the display will show the following: Model Number, Serial Number, Software Revision and Last Date Calibrated. Arrow ( ) Keys Press to scroll through choices while setting a parameter. -
Page 10: Menus
Menus DISPLAY SETUP Display setup menu is where you will setup the desired parameters to be displayed on the running screen. With a parameter highlighted you can then use the ON soft key to have it show up on the running screen or select the OFF soft key to turn off the parameter. -
Page 11: Delete Data
LogDat2 CD-ROM. To download data from the Model 5725, connect the supplied computer interface USB cable to the Model 5725 and to a computer USB port. Then run the LogDat2 software. Within the LogDat2 software, either select the tests to be downloaded or double-click on a test to open it. -
Page 13: Chapter 4 Maintenance
If the instrument case or storage case needs cleaning, wipe it off with a soft cloth and isopropyl alcohol or a mild detergent. Never immerse the Model 5725. If the enclosure of the Model 5725 or the AC adapter becomes broken, it must be replaced immediately to prevent access to hazardous voltage. -
Page 15: Chapter 5 Troubleshooting
Chapter 5 Troubleshooting Table 5-1 lists the symptoms, possible causes, and recommended solutions for common problems encountered with the Model 5725. If your symptom is not listed, or if none of the solutions solves your problem, please contact TSI. Table 5-1: Troubleshooting the Model 5725... -
Page 17: Appendix A Specifications
Appendix A Specifications Specifications are subject to change without notice. Velocity: Range: 50 to 6,000 ft/min (0.25 to 30 m/s) ±1.0% of reading ±4 ft/min (±0.02 m/s Accuracy: Duct Size: Range: 0 to 173.6 ft (0 to 16 m Volumetric Flow Rate: Range: Actual range is a function of actual velocity and duct area Temperature:... - Page 18 Power Requirements: Four AA-size batteries (included) or AC adapter (optional) 9 VDC, 300 mA, 4-18 watts (input voltage and frequency vary depending on which adapter is used) Appendix A...
- Page 19 TSI Incorporated – 500 Cardigan Road, Shoreview, MN 55126 U.S.A Tel: +1 800 874 2811 E-mail: info@tsi.com Website: www.tsi.com Tel: +44 149 4 459200 E-mail: tsiuk@tsi.com Website: www.tsiinc.co.uk France Tel: +33 491 95 21 90 E-mail: tsifrance@tsi.com Website: www.tsiinc.fr Germany Tel: +49 241 523030 E-mail: tsigmbh@tsi.com Website www.tsiinc.de Sweden...
