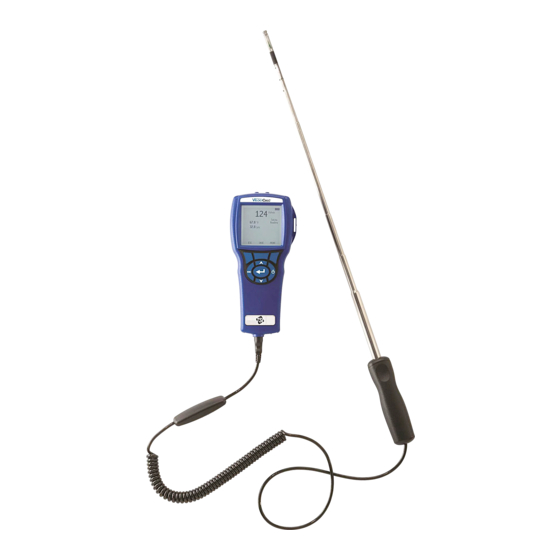

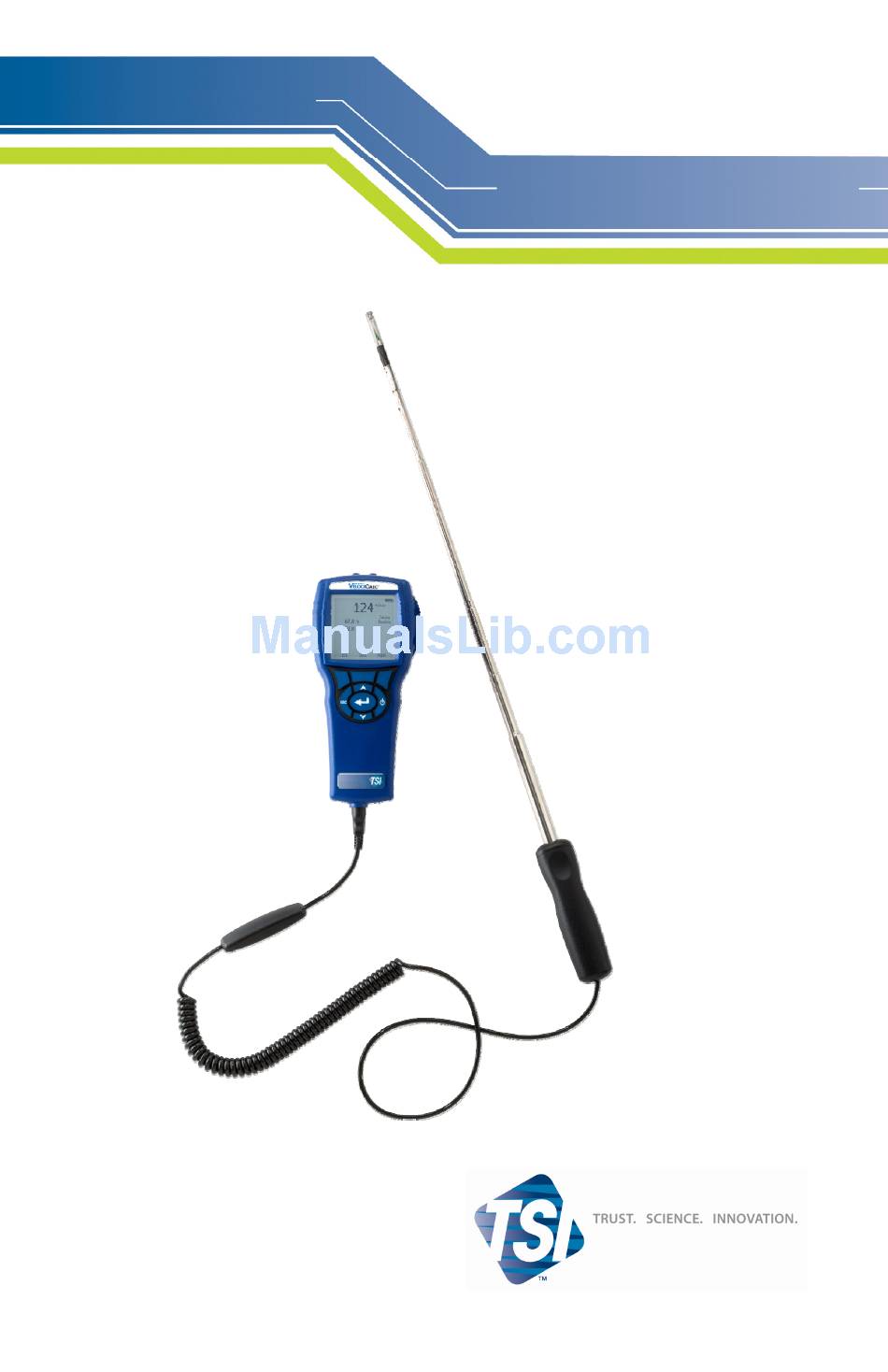

- Page 1 ENERGY AND COMFORT Ventilation Testing ® ELOCI Air Velocity Meter Model 9555 Series Operation and Service Manual...
- Page 2 Officer of Seller. Service Policy Knowing that inoperative or defective instruments are as detrimental to TSI as they are to our customers, our service policy is designed to give prompt attention to any problems. If any malfunction is discovered, please contact your nearest sales office or representative, or call Customer Service department at (800) 874-2811 (USA) or (1) 651-490-2811 (International).
-
Page 3: Table Of Contents
CONTENTS CHAPTER 1 UNPACKING AND PARTS IDENTIFICATION .... 1 CHAPTER 2 SETTING-UP..............3 Supplying Power to the Model 9555 Series ........3 Installing the Batteries ...............3 Using the Optional AC Adapter ..........3 Using The Telescoping Probe ............3 Extending The Probe..............3 Retracting The Probe .............. -
Page 5: Chapter 1 Unpacking And Parts Identification
Unpacking and Parts Identification Carefully unpack the instrument and accessories from the shipping container. Check the individual parts against the list of components below. If anything is missing or damaged, notify TSI immediately. 1. Carrying case 2. Instrument 3. Static pressure tip 4. -
Page 7: Chapter 2 Setting-Up
Chapter 2 Setting-up Supplying Power to the Model 9555 Series The Model 9555 V Air Velocity Meter can be powered in one of ELOCI two ways: four size AA batteries or the AC adapter. Installing the Batteries Insert four AA batteries as indicated by the diagram located on the inside of the battery compartment. -
Page 8: Connecting The Optional Bluetooth Portable Printer
Bluetooth devices. Select the device ”Handy700”. If the Model 9555 has previously been connected to a TSI printer, then it should automatically reconnect to that printer. If the printer prints question marks (??????), asterisks (******), or random characters, reset it by turning it off and then on again. -
Page 9: Chapter 3 Operation
Chapter 3 Operation Keypad Functions ON/OFF Key Press to turn the Model 9555 on and off. During the power up sequence the display will show the following: Model Number, Serial Number, Software Revision and Last Date Calibrated. Arrow ( ) Keys Press to scroll through choices while setting a parameter. -
Page 10: Menus
Time Constant The time constant is an averaging period. It is used to dampen the display. If you are experiencing fluctuating flows, a longer time constant will slow down those fluctuations. The display will update every second, but the displayed reading will be the average over the last time constant period. -
Page 11: Actual/Standard Setup
NOTE: The horn numbers are the models of the horns. For example, 100 refers to a horn model number AM 100. Only horns with Model numbers as follows can be used with this function: AM 100, AM 300, AM 600 and AM 1200. If a horn model number is chosen, the instrument will return to measuring mode and use a preprogrammed curve to calculate flow rate from velocity. -
Page 12: Delete Data
Help Function. This utility provides all the necessary information to guide you in all aspects of software operation. The software is shipped on a CD-ROM. Updates are available from the TSI website at http://software.tsi.com. To download data from the Model 9555, connect the supplied computer interface USB cable to the Model 9555 and to a computer USB port. -
Page 13: Chapter 4 Maintenance
To maintain a high degree of accuracy in your measurements, we recommend that you return your Model 9555 to TSI for annual recalibration. Please contact one of TSI’s offices or your local distributor to make service arrangements and to receive a Return Material Authorization (RMA) number. -
Page 15: Chapter 5 Troubleshooting
Table 5-1 lists the symptoms, possible causes, and recommended solutions for common problems encountered with the Model 9555. If your symptom is not listed, or if none of the solutions solves your problem, please contact TSI. Table 5-1: Troubleshooting the Model 9555 Symptom... -
Page 17: Appendix A Specifications
Appendix A Specifications Specifications are subject to change without notice. Velocity (TA Probe): Range: 0 to 9999 ft/min (0 to 50 m/s) 1&2 Accuracy ±3% of reading or ±3 ft/min (±0.015 m/s), whichever is greater Resolution: 1 ft/min (0.01 m/s) Velocity (Pitot Tube): Range 250 to 15500 ft/min (1.27 to 78.7 m/s) - Page 18 Static / Differential Pressure: Range -15 to +15 in. H O (-28.0 to +28.0 mm Hg, -3735 to +3735 Pa) Accuracy: ±1% of reading ±0.005 in. H O (±1 Pa, ±0.01 mm Hg) ±0.02%/°F (±0.03%/°C) Resolution: 0.001 in. H O (1 Pa, 0.01 mm Hg) Barometric Pressure: Range: 20.36 to 36.648 in.
-
Page 19: Power Requirements
Power Requirements: Four AA-size batteries (included) or AC adapter (optional) 7.2 VDC, 300 mA, 4-18 watts (input voltage and frequency vary depending on which adapter is used) Temperature compensated over an air temperature range of 40 to 150°F (5 to 65°C). The accuracy statement of ±3.0% of reading or ±3 ft/min (±0.015 m/s), whichever is greater, begins at 30 ft/min through 9999 ft/min (0.15 m/s through 50 m/s). -
Page 21: Appendix B Dip Switch Settings
Appendix B DIP Switch Settings To access the DIP switch, remove the batteries from the battery compartment. On the inside of the battery compartment, there is a window with a single DIP switch (see Figure B-1). The table below shows the functions for the switch. - Page 22 Tel: +91 80 41132470 E-mail: tsi-india@tsi.com China Tel: +86 10 8260 1595 E-mail: tsibeijing@tsi.com Contact your local TSI Distributor or visit our website www.tsi.com for more detailed specifications. P/N 1980565 Rev D Copyright © 2007 by TSI Incorporated Printed in U.S.A.
