D u c t T r a v e r s e P r o c e d u r e ( 9 6 5 0 , 9 6 5 0 - N B )
•

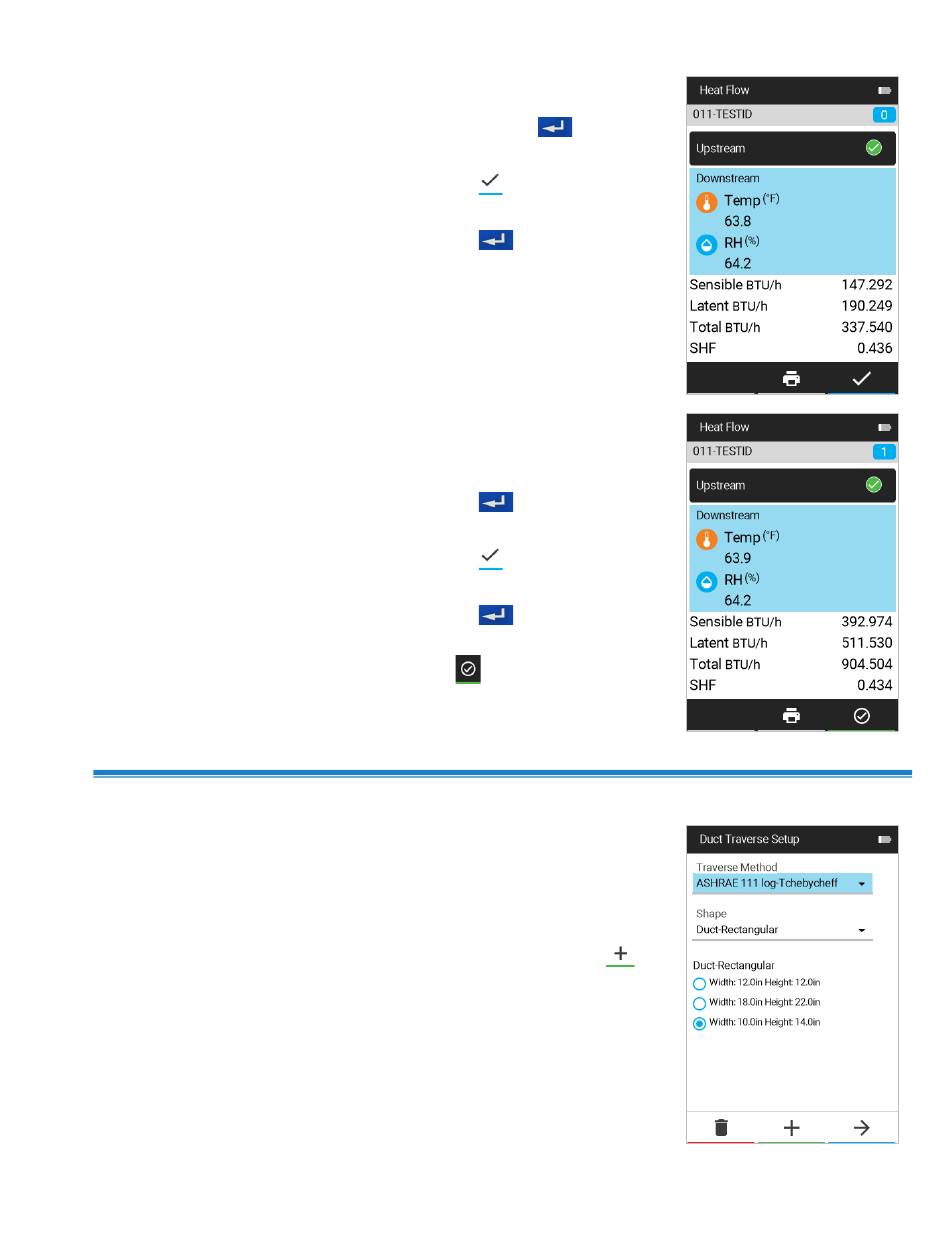

Upstream measurements of Flow,
Temperature, and Humidity are
displayed. Press
these upstream measurements.
o Press
to accept the
upstream readings
o Press
to retake
upstream readings
•
After upstream measurement has
been accepted, place probe
downstream of the coil.
o Press
to capture these
upstream measurements.
o Press
to accept the
upstream readings
o Press
to retake
upstream readings
•
Press to save and close the
test ID.
After connecting any TA Probe or
Pitot tube and selecting Workflows
from the Main Menu, select Duct
Traverse to view the Duct
Traverse Setup screen.
To add a new duct size press
Operation and Service Manual
to capture
.
37
