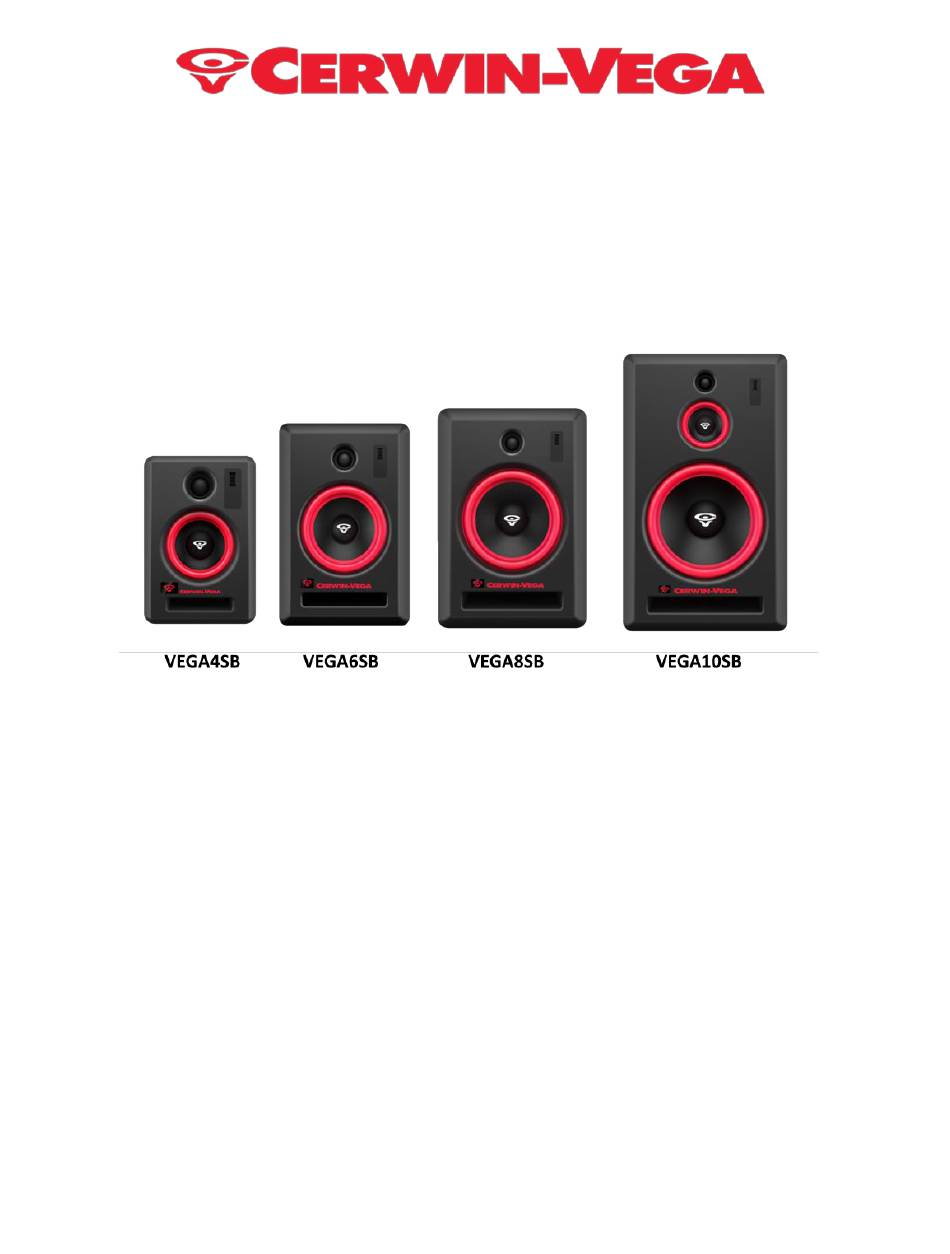

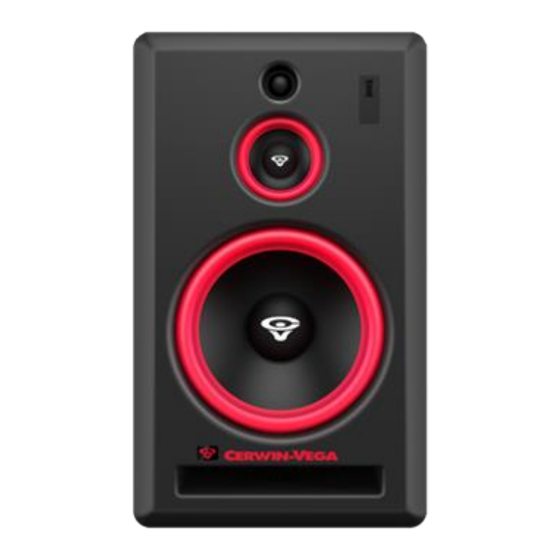

VEGA SERIES WIRED / WIRELESS MONITORS
FOR PROFESSIONAL AND HOME USE
WITH EMBEDDED BLUETOOTH AND SKAA PRO HIGH-SPEED WIRELESS TECHNOLOGIES
REV: D
INTRODUCTION
You are in good company for your purchase of Cerwin Vega Professional and Home Products, so congrats! And thank you
for joining the growing family of Cerwin Vega owners who have high standards for their brand's merchandise, quality, and
functionality.
We take pride in offering our cutting-edge VEGA Studio Monitors. Two years were spent on the design and development
and we think that anyone may utilize and quickly appreciate using them.
We hope you enjoy your Cerwin-Vega Monitors for a very long time to come!
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the VEGA Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cerwin-Vega VEGA Series

Summary of Contents for Cerwin-Vega VEGA Series

  • Page 1 We take pride in offering our cutting-edge VEGA Studio Monitors. Two years were spent on the design and development and we think that anyone may utilize and quickly appreciate using them. We hope you enjoy your Cerwin-Vega Monitors for a very long time to come!

  • Page 2: Warranty

    INDEX INTRODUCTIONS Page MANUALS PURPOSE Page 3 IMPORTANT SAFETY INSTRUCTIONS Page 4 KEY FEATURES & SPECS Page 5 - 6 WARRANTY REGISTRATION Page 41 INITIAL OUT OF THE BOX CONFIGURATION & SKAA CMD APP Page 7 CONNECTIONS CONNECTIONS - THREE MODES OF AUDIO INPUT CONNECTIONS TO HUB MONITORS Page 8 CONNECTIONS - BLUETOOTH CELLPHONE CONNECTIONS to MONITOR USING BLUETOOTH MODE...
  • Page 3 Eleven Engineering (Canada) and have integrated their SKAA Pro Technology into all of our VEGA Series Monitors. The specialists out there may always use our embedded SKAA Pro technology to get accurate sound and wireless real-time music mixing without noticeable audio delays.
  • Page 5 Some Key Features: Connectivity: Wired: RCA, XLR Combo TRS connections on the HUB for universal direct line connectivity for any environment. Wireless: HUB has BT 5.0+ and SKAA Pro Technology Wireless: SAT have SKAA Pro Receiver Technology. Amplifier: DSP controlled Class “D” amplifier topology: runs cooler and with clean sound. Custom active 2way electronics (VEGA4S, VEGA6S &...
  • Page 6 SPECS: VEGA4S VEGA6S VEGA8S VEGA10S 4" 6" 8" 10" 2-Way Monitor 2-Way Monitor 2-Way Monitor 3-Way Monitor FREQUENCY 60Hz-20kHz 45Hz - 20kHz 40Hz - 20kHz 30Hz - 20kHz (+3 / 10 dB) (+3 / 10 dB) (+3 / 10 dB) (+3 / 10 dB) RESPONSE: AMPLIFIER:...
  • Page 7 Initial Out of the Box Configuration: • The Hub, out of the box, is configured as the LEFT speaker • The Satellite, out of the box, is configured as the RIGHT speaker. This configuration can be changed using the SKAA cmd app and using a SKAA approved transmitter depending upon which type of phone you have.
  • Page 8 Three modes of audio input connections to our HUB monitors: please see figure 1 Below: (1) Audio Input Mode Selection Button, each button press will advance to the next connection type (Bluetooth, Analog input and then SKAA mode). (2) Bluetooth Receive Mode: when selected, the BT LED will light up and the HUB will then transmit audio automatically via a SKAA Pro mode to the SAT.
  • Page 9 TRIM EQ On the rear panel of the HUB speaker, you’ll find two TRIM EQ knobs which enable you to boost or cut the High Frequencies and Low Frequencies produced by the speaker by small degrees in order to compensate for the acoustics of the room you’re listening in.
  • Page 10 The TRIM EQ will not automatically migrate between the HUB and SATELLITE in this configuration, so it’s advisable to put a masking tape note on the HUB reminding you not to change the TRIM EQ since doing so may result in the HUB and SATELLITE having different TRIM EQs.
  • Page 11 SKAA Bonding Mode Selection: HUB & SAT See figure 2 below and bonding button “5”. The VOL control knob does double duty for functions. • If you rotate the knob left or right you can control the volume level of the speaker. •...
  • Page 12 Computer Wireless Connections using SKAA Mode: assuming your computer has a SKAA transmitter! Desktop or Laptop (Windows / MacOS / Linux, assuming USB “A” ports, see figure 3 below, bottom right side. To connect to the HUB using SKAA. a. Obtain or buy an Ursula SKAA Transmitter (not included) and connect to your computers standard USB “A” port.
  • Page 13 Cellphone Connections to Monitor using Bluetooth Mode: Android / Apple please see figure 4 below. To connect to the VEGA Monitors using BT Mode: assumption both iPhone and Android have built in Bluetooth. 1. On the HUB press the mode input selector button to put the HUB into BT mode (BT LED will be lit). 2.
  • Page 14 Cellphone Wireless Connections using SKAA Mode: Android / Apple, please see figure 5 below. To connect to the VEGA Monitors using SKAA Mode. 1. For Android phone if your phone USB input connection is a type “C” then obtain a CASSANDRA (type C) SKAA Transmitter (not included and sold separately, see page 26).
  • Page 15 Direct Wired connection: see figure 6 below. XLR or TRS Connection: Connect your wired connections to your HUB using either the XLR Inputs for left and right or the built in TRS connectors for left and right connection. Select the Analog mode via the input connection button and cycle button presses until the Analog mode LED is illuminated.
  • Page 16 RCA Line in Connection: see figure 7 below. Connect your wired connection to your Monitor HUB using the low-level line RCA inputs. Select the Analog mode via the input mode connection button and cycle the button presses until the Analog mode LED is illuminated.
  • Page 17 SKAA® RECEIVER USER’S GUIDE Each SKAA receiver uses a Green List to remember your favorite audio sources (SKAA transmitters). A Green glowing Indicator on your receiver means you are listening to a favorite, or hunting for one. You can also explore to find new transmitters—an Amber Indicator means you are exploring for transmitters which are not on your Green List.
  • Page 18 4. Once all of the indicators stop flashing (turn solid Red), power off all of the receivers QUESTIONS AND ANSWERS Question Answer How does the You can store up to 10 SKAA transmitters on your Green List. These are your “favorite” audio sources. Green List work? Every time you add a transmitter, it is assigned the first open spot on the Green List.
  • Page 19 Question Answer (Continued) (Continued) How do I select Say you want to put your receiver on a high shelf where you can’t reach the Bond Button easily. First, set transmitters if I can’t up your Green List: add all of the transmitters you’ll want to use. Then 4click the Bond Button to reach my Bond enter Red Mode.
  • Page 20 SKAA cmd app Directions on how to use:...
  • Page 21 SKAA cmd app Directions on how to use (continued):...
  • Page 22 SKAA cmd app Directions on how to use (continued):...
  • Page 23 SKAA cmd app Directions on how to use (continued):...
  • Page 24 SKAA cmd app Directions on how to use (continued):...
  • Page 25 SKAA cmd app Directions on how to use (continued):...
  • Page 26 SKAA cmd app Directions on how to use (continued):...
  • Page 27 VEGA STUDIO MONITOR ACCESSORIES V10SG example shown above MONITOR NOISE ISOLATION PAD VEGA STUDIO MONITOR GRILLE (WITH REMOVABLE TOP HALF TILT MONITOR DOWNWARD OPTION) (WITH NON-MARRING SECURE MAGNETIC LOCK MOUNT) MODEL ISOLATION PAD PART NUMBER MODEL GRILLE PART NUMBER VEGA4SB V4SPAD VEGA4SB V4SG VEGA6SB V6SPAD VEGA6SB V6SG...
  • Page 28 ACCESSORIES (CONTINUED) SKAA Transmitter adapters can be obtained from the SKAA Store: https://www.skaastore.com Ursula USBA Used on Desktop/Laptop Computers, NAS Devices & Game Consoles. Lightning Used on iOS smartphones, tablets and computers. Cassandra USBC Used on iOS and Android smartphones, tablets, computers, PC’s.
  • Page 29 ACCESSORIES (CONTINUED) VEGA STUDIO MONITOR – HUB (SINGLE) VEGA STUDIO MONITOR – SAT (SINGLE) You can purchase additional HUBs separately as required. You can purchase additional SATs separately as required. Please see our website: www.cerwinvega.com for costing Please see our website: www.cerwinvega.com for costing and availability.

  • Page 30: Use Cases

    USE CASES...
  • Page 31 USE CASES (CONTINUED)
  • Page 32 USE CASES (CONTINUED)
  • Page 33 USE CASES (CONTINUED)
  • Page 34 USE CASES (CONTINUED)
  • Page 35 USE CASES (CONTINUED)
  • Page 36 USE CASES (CONTINUED)
  • Page 37 USE CASES (CONTINUED)
  • Page 38 USE CASES (CONTINUED)
  • Page 39 USE CASES (CONTINUED)
  • Page 40 USE CASES (CONTINUED)
  • Page 41 USE CASES (CONTINUED)
  • Page 42 USE CASES (CONTINUED)
  • Page 43 If at any time your Cerwin-Vega home product malfunctions as a result of faulty materials or workmanship, Cerwin-Vega or one of Cerwin-Vega's Authorized Service Centers in the United States of America will repair the defect(s) or replace the merchandise, as it deems appropriate at its sole discretion based upon the information presented below.
  • Page 44 OF PROFITS OR BUSINESS OR DAMAGES RESULTING FROM USE OR PERFORMANCE OF THE MERCHANDISE, WHETHER IN CONTRACT OR IN TORT, EVEN IF CERWIN-VEGA!, INC. OR ITS AUTHORIZED REPRESENTATIVE HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES, AND CERWIN-VEGA!, INC. SHALL NOT BE LIABLE FOR ANY EXPENSES, CLAIMS, OR SUITS ARISING OUT OF OR RELATING TO ANY OF THE FOREGOING.FOR MERCHANDISE PURCHASED FROM AN AUTHORIZED...

  • Page 45: Customer Service

    CUSTOMER SERVICE How do you get Warranty service? In order to obtain warranty service, contact your original dealer or distributor, or an Authorized Cerwin-Vega! Service Center first. If, for some reason, you have trouble locating a service representative, contact Cerwin-Vega’s Customer Service...
  • Page 46 WARNINGS FCC Warnings This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
  • Page 47 WARNINGS IC WARNING This radio transmitter has been approved by Industry Canada. This Class B digital apparatus complies with Canadian standard ICES-003. This device complies with Industry Canada License exempt RSS standard(s). Operation is subject to the following two conditions. (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device.

This manual is also suitable for:

Vega4sbVega6sbVega8sbVega10sbVega6sb-hubVega10sb-pr ... Show all
