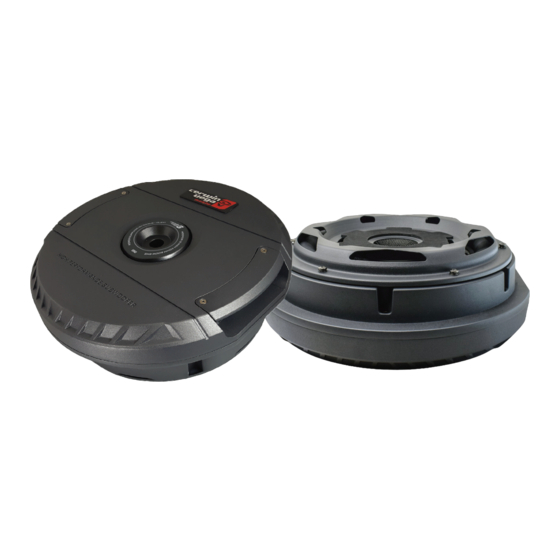

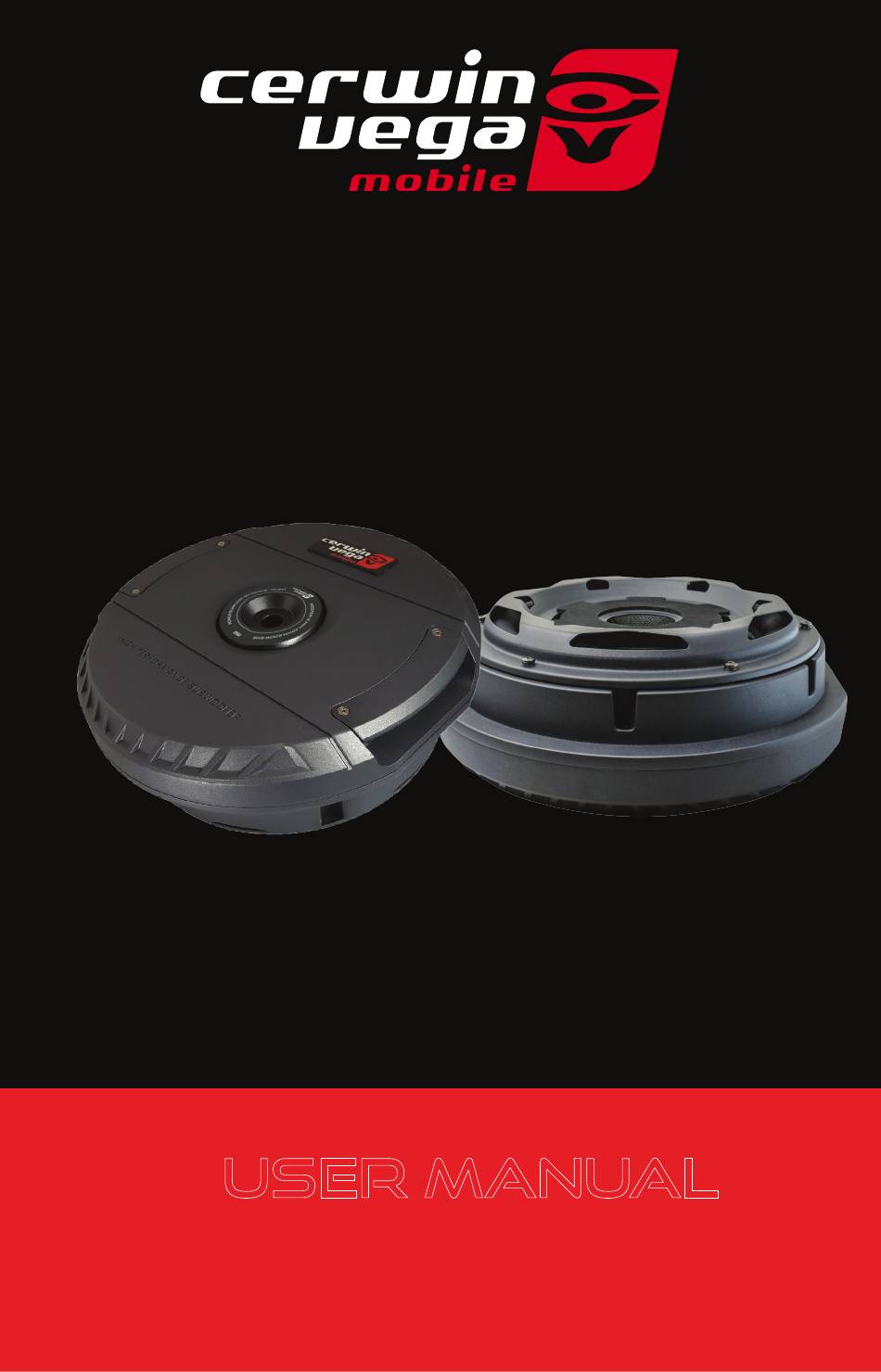

- Page 1 VEGA SERIES PASSIVE SPARE TIRE SHALLOW SUBWOOFER VS12SH USER MANUAL...
- Page 2 If you require additional assistance, please contact the Cerwin Vega Mobile Technical Support Department during business hours at 213-261-4161. Specifications MODEL: VS12SH 300 WRMS/600 WMAX Power 90dB Sensitivity 20Hz - 500Hz...
- Page 3 Installation This is a VERY simple install and can fit into virtually any car made in the last 10 years. WITHOUT removing your spare tire. Follow the instructions to a SUPER easy install! 1. Remove the trunk liner. Typically it is NOT screwed or bolted down. It should simple pull out as shown below in Figure 1 The trunk: Shown is a hatchback,.
- Page 4 NO NEED TO FLIP OVER THE SPARE TIRE 2. IF your spare tire is Deep Side DOWN then you simply need to unbolt the sparetire and drop the VS12SH in so it can sit inside of it. (See Figure 3) Figure 3 8mm or 10mm Mounting Bolt 2.
- Page 5 CERWIN VEGA REPLACEMENT ABS NUT (included) CONNECTING WIRING HARNESS 1. The VS12SH should be mounted into the spare tire area at this point. 2. Plug the speaker wire connector into the port in the handle area of the enclosure. Figure 5...
- Page 6 Warranty Thank you for purchasing a Cerwin Vega Mobile product and we hope to provide you with countless hours of listening enjoyment. Please take a brief moment to register your new product. By registering your new product, you will receive benefits such as: - Important product notifications that may pertain to your purchase.
- Page 7 Notes...
- Page 8 ©2021 CVDA Inc. All Rights Reserved. (a division of CV & DA Holdings, Inc.)
