Chapter 2: Jumpers and Connectors

Internal Connectors

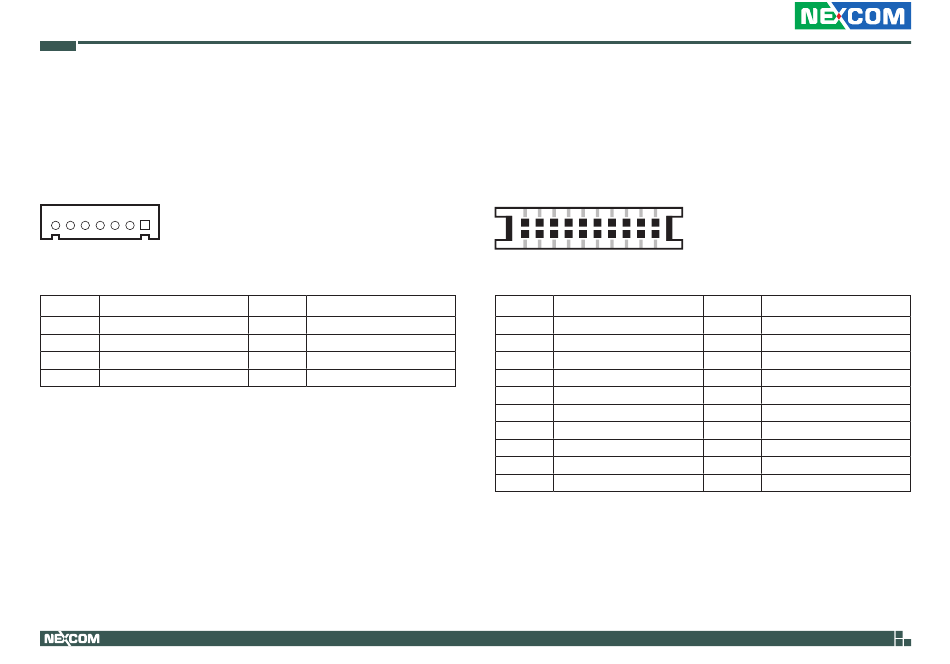

CCFL Panel Backlight Connector

Connector type: 1x7 7-pin header JST, 2.5mm pitch
Connector location: J4
7 1
Pin Definition
1 VCC5
3 12V
5 GND
7 BKLEN
Copyright © 2019 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 12V
4 BKCTRL
6 GND

LVDS Channel A

Connector type: 2x10 20-pin header, 1.25mm pitch
Connector location: CN2
1
2
Pin Definition
1 NC
3 VDD
5 LVDS_DAT3P
7 LVDS_DAT3N
9 GND
11 LVDS_CLK1P
13 LVDS_CLK1N
15 GND
17 LVDS_DAT2P
19 LVDS_DAT2N
22
19
20
Pin Definition
2 NC
4 LVDS_DAT0P
6 LVDS_DAT0N
8 VDD
10 LVDS_DAT1P
12 LVDS_DAT1N
14 GND
16 +12V
18 +12V
