Chapter 3: System Setup

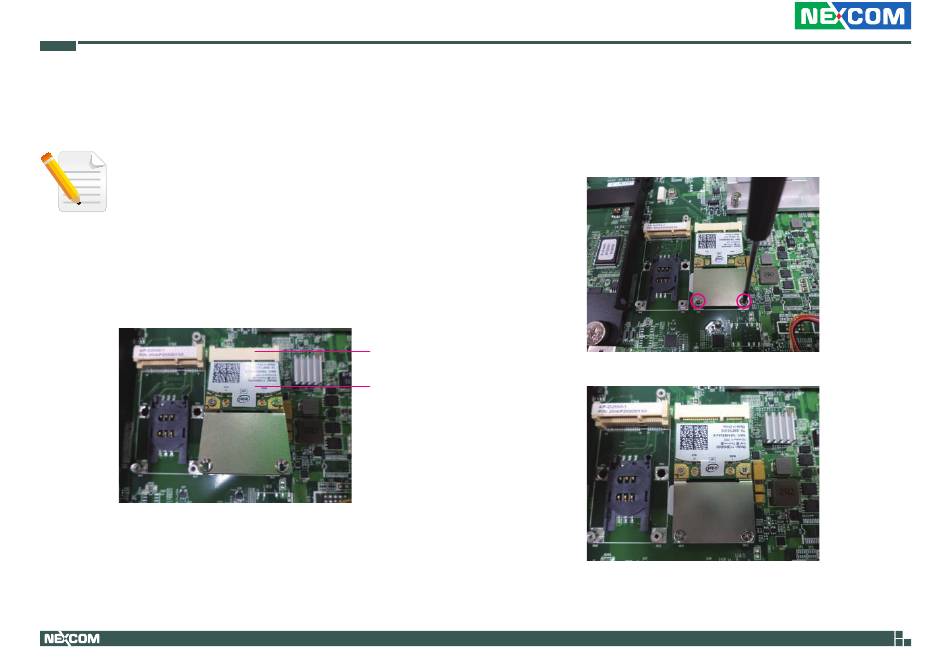

Installing the Half-Size Mini PCIe Module

Before installing a Mini PCIe module, please remove the

chassis cover and heat sink first.

1. Insert the Mini PCIe module into the Mini PCIe slot at a 45 degrees

angle until the gold-plated connector on the edge of the module

completely disappears inside the slot.

2. Secure the module with mounting screws.

Mini PCIe Slot

Mini PCIe

Module
