HRX-OM-X071
Chapter 9 Documents
9.2

Outline dimensions

9.2.1 HRR050-A-20-
9.2 Outline dimensions
9-6
For Option Y(With feet and no Rack Mounting bracket), refer to [6.4 Option Y(With
feet and no Rack Mounting bracket).

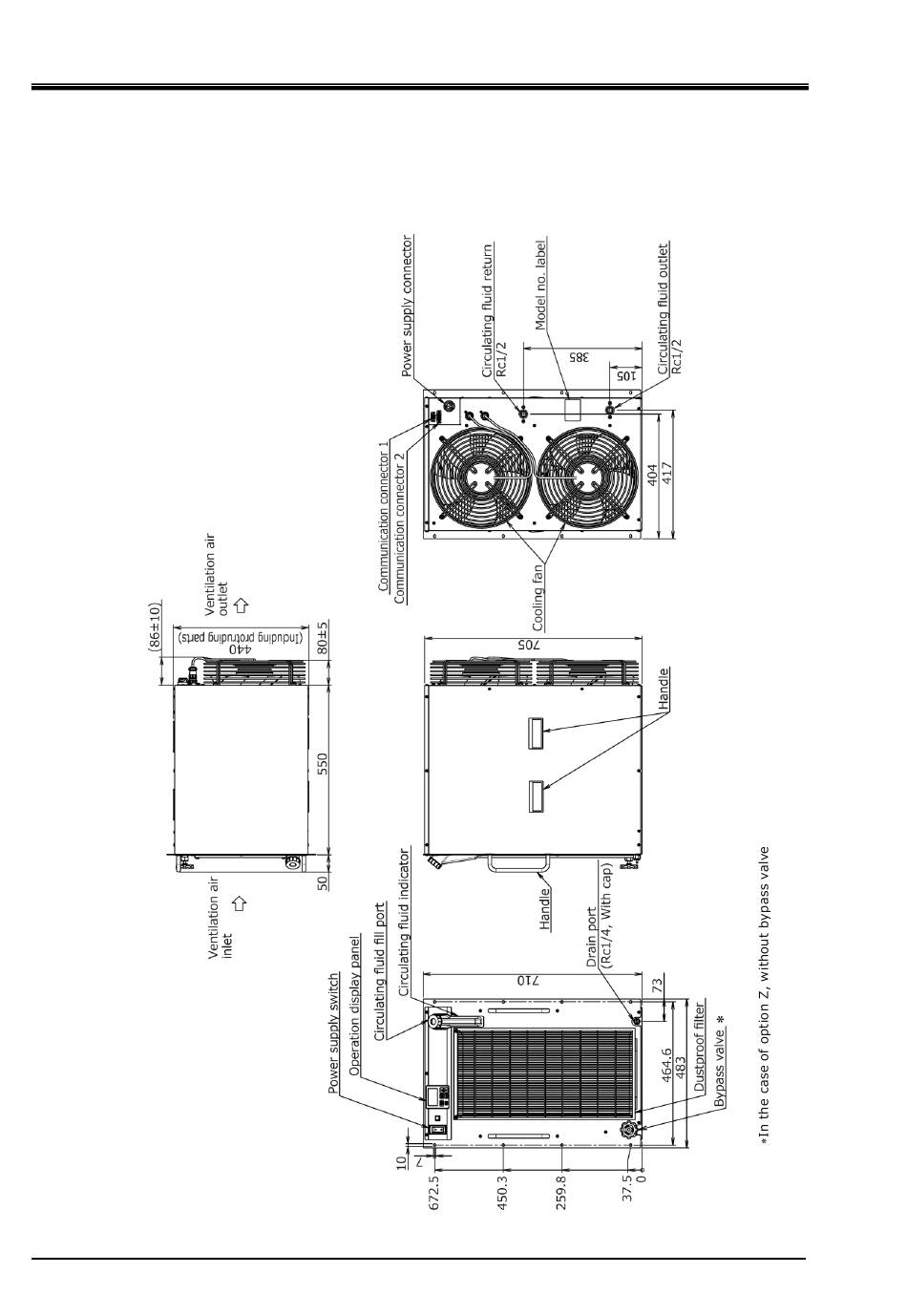

Fig. 9-1 Outline dimensions (HRR050-A-20-)
HRR Series
