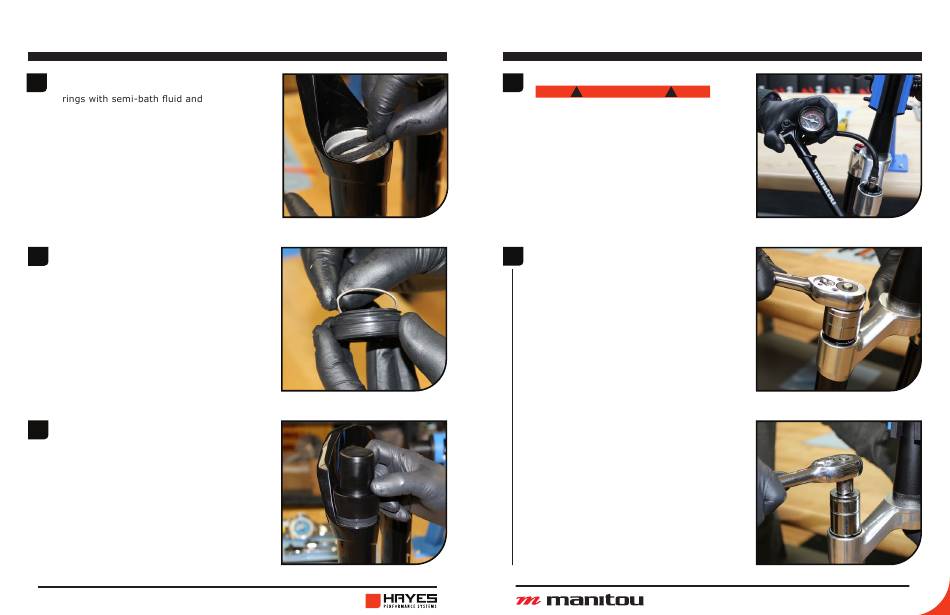

CASTING REMOVAL & SERVICE
Remove old foam wiper rings.
7
Thoroughly saturate new foam
install into fork casting.
Remove springs from outer lip of
8
new leg seals. Clean casting seal
press area with Isopropyl alcohol.
Using the Manitou 34/37mm Seal
9
Press, press in the dust seals.
Reinstall springs onto seals.
8
MATTOC / JUNIT 34 / CIRCUS 34 SERVICE GUIDE

AIR SPRING SERVICE

Mattoc / JUNIT Pro:
1
! WARNING !
MAKE SURE THE AIR IS
RELEASED FROM THE FORK.
Remove IRT air cap. Depress IRT
Schrader Valve with a 2mm hex
a few times to ensure all air is
released.
Mattoc Expert / Comp, JUnit 34
Expert, Circus Pro:
Skip to Step 2.
Mattoc / JUNIT Pro:
2
Using a standard cassette tool
and 1" socket loosen IRT cap until
threads are free from leg.
Mattoc Expert / Comp, JUnit 34
Expert, Circus Pro:
Using a 24mm socket, loosen IVA
cap until threads are free from leg.
