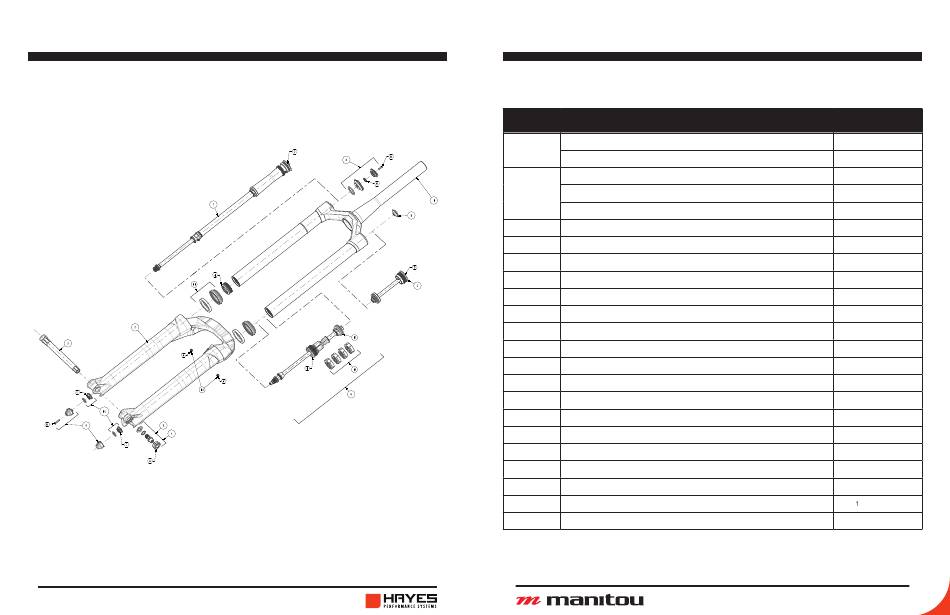

MATTOC PRO exploded view & PARTS
44
MATTOC / JUNIT 34 / CIRCUS 34 SERVICE GUIDE
MATTOC PRO exploded view & PARTS
ITEM # PART DESCRIPTION
CROWN-STEER ASSY, 440S, M31XO 8, MY14 PRO POLISH-CLEAR
1
CROWN-STEER ASSY, 370S, M31XO 8, MY24 PRO POLISH-CLEAR
CASTING, 29" MY24 MATTOC GLOSS BLACK
2 CASTING, 27 5" MY24 MATTOC GLOSS BLACK
CASTING, 29" MY24 MATTOC PRO LE SILVER-GRAY
3 AXLE, HEXLOCK SL2, 110 ALUMINUM WITH HARDWARE
4 AXLE HARDWARE, HEXLOCK SL2
5 IRT ASSY M31XO 8, 29.85 MY24 MATTOC
6 DORADO AIR SPRING ASSY (INCLUDES TRAVEL SPACERS)
7 CARTRIDGE ASSY, MC2 34MM 150 M31X0.8, W/ KNOBS
8 KNOBS, MC2/IRT, ALUMINUM
9 REBOUND KNOB/ AIR VALVE CAP
10 FOOT-NUT, Ml2Xl.5 SHAFT (2PC)
11 SEALS, 34MM, SKF W/ FOAM RINGS
12 AIR PISTON, SEAL ONLY OUAD-RING (31.00 LEG)
13 TRAVEL ADJUST SPACER KIT
14 BLEED SCREW, 2PC
REF DECAL KIT, MY24 MATTOC PRO/EXPERT/COMP
REF REBUILD KIT, MY24 MATTOC
REF REBUILD KIT, DAMPER CARTRIDGE, MY24+ MC2 (HNBR)
REF FENDER & HOSE-GUIDE KIT
REF FENDER KIT
REF HOSE GUIDE KIT
KIT NUMBER
141-39022-K038
141-39022-K039
141-39011-K007
141-39022-K008
141-39022-K042
141-33147-K005
141-33147-K006
141-39012-K010
141-39022-K009
141-39022-K012
141-39022-K018
141-32155-K0l6
141-39022-K017
141-39022-K020
141-32155-K0I2
141-36713-K032
141-36713-K035
141-39022-K023
141-39021-K021
141-39022-K041
141-36103-K001
141-36 03-K002
141-36103-K003
