Manitou MATTTOC PRO Service Manual page 10

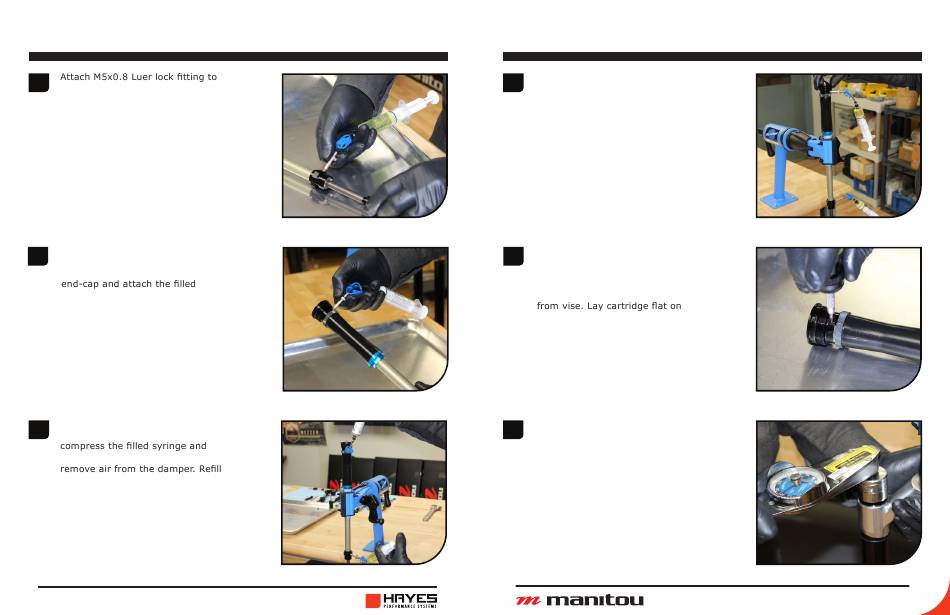

MC2 Sealed DAMPER SERVICE
7
both syringes (141-30695-K020).
Fill one syringe with 3wt Damper oil
(141-34078-K016).
Attach the empty syringe M5x.8
8
adapter to top-cap bleed port.
Remove bleed-screw from damper
syringe M5x.8 adapter to end-cap
bleed port.
Holding the damper end-cap
9
up-right in vise simultaneously
retract the empty syringe to
the syring as needed until oil is
drawn into the upper syringe.
18
MATTOC / JUNIT 34 / CIRCUS 34 SERVICE GUIDE
MC2 Sealed DAMPER SERVICE
Closing the bleed hose clamp on
10
both syringes cycle the damper
SLOWLY to draw air to the top
of the damper. Open bleed hose
clamps and repeat step 10 until no
air bubbles are present in oil drawn
into upper syringe.
Fully extend damper shaft and
11
add oil from bottom syringe until
bladder is slightly expanded.
Closing the bleed hose clamp on
both syringes remove cartridge
bench. Remove lower syringe and
replace bleed screw. Some oil may
discharge from bleed port when
removing syring. Remove upper
syringe and replace bleed screw.
Install Damper cartridge into
12
stanchion. Using standard cassette
lock-ring tool Torque to 200-220
LB-in [22.6-25 Nm].
MATTOC / JUNIT 34 / CIRCUS 34 SERVICE GUIDE
19
