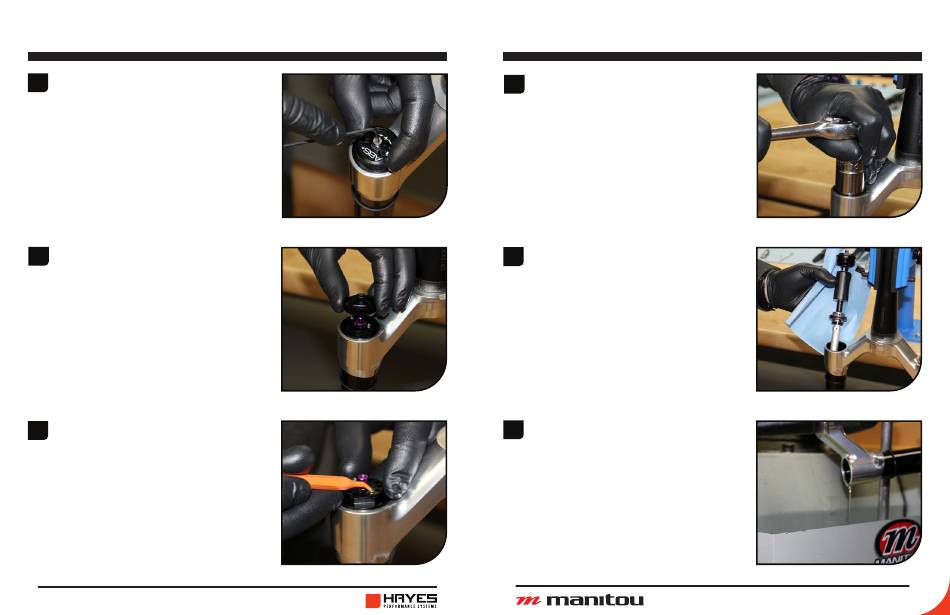

ABS+ DAMPER SERVICE

Using a 2mm Hex wrench remove
1
the screw of the ABS+ knob.
Note: Be sure to hold the knob
still while removing the screw. The
damper adjuster may be damaged
if the knob is over torqued.
Note: Small detent balls and
springs are located below ABS+
knob.
2
Knob can be removed by hand.
Remove detent balls and springs
3
from the ABS+ top cap.
26
MATTOC / JUNIT 34 / CIRCUS 34 SERVICE GUIDE
ABS+ DAMPER SERVICE
Use 24mm socket to unthread the
4
damper top cap from the stanchion.
Remove damper assembly from the
5
stanchion. Inspect damper piston
seal for any damage.
Tip out used damper oil from top
6
of stanchion into drain pan. Cycle
damper shaft serval times to cycle
out old oil from damper.
