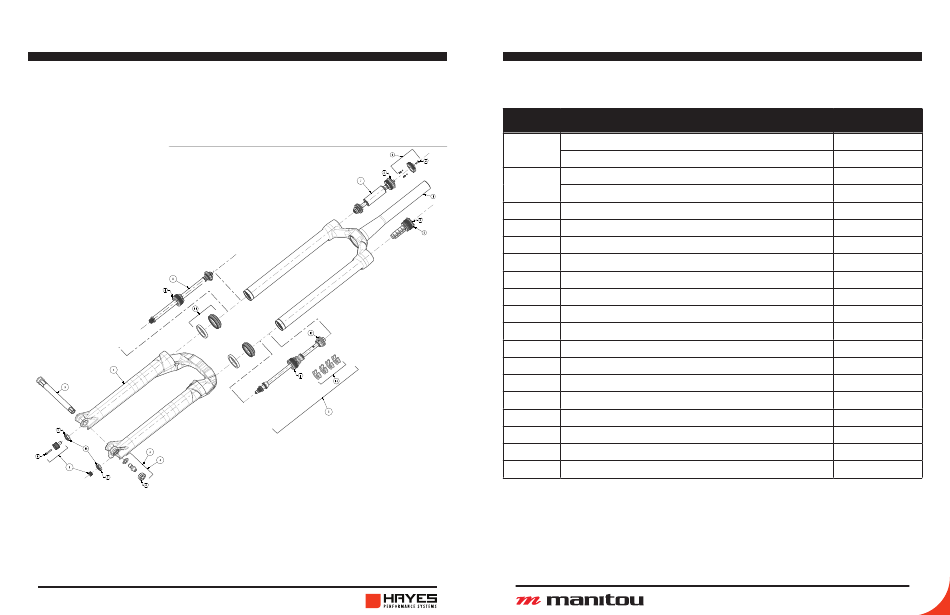

MATTOC COMP exploded view & PARTS
48
MATTOC / JUNIT 34 / CIRCUS 34 SERVICE GUIDE
MATTOC COMP exploded view & PARTS
ITEM # PART DESCRIPTION
CROWN-STEER ASSY, 44OS, M31X0.8, MY24 MATTOC MATTE BLK
1
CROWN-STEER ASSY, 37OS, M31X0.8, MY24 MATTOC MATTE BLK
CASTING, 29" MY24 MATTOC GLOSS BLACK
2
CASTING, 27.5" MY24 MATTOC GLOSS BLACK
3 AXLE, HEXLOCK SL, 110 ALUMINUM (WITH HARDWARE)
4 AXLE HARDWARE, HEXLOCK SL
5 IVA ASSY M31X0.8, 29.09
6 EXPERT AIR SPRING ASSY (INCLUDES TRAVEL SPACERS)
7 COMPRESSION DAMPER ASSY, ABS+ ENDURO, M31X0.8, 29.5
8 REBOUND ASSY, 29.09 LEG M31.5X0.8 MY24 MATTOC COMP
9 KNOBS, MY24 MATTOC COMP
10 FOOT-NUT, M12X1.5 SHAFT (2PC)
11 SEALS, 34MM, TSS W/ FOAM RINGS
12 AIR PISTON, SEAL ONLY QUAD-RING (29.09 LEG)
13 TRAVEL ADJUST SPACER KIT
REF DECAL KIT, MY24 MATTOC EXPERT/COMP
REF REBUILD KIT, MY24 MATTOC
REF FENDER & HOSE-GUIDE KIT
REF FENDER KIT
REF HOSE GUIDE KIT
KIT NUMBER
141-39022-K005
141-39022-K006
141-39022-K007
141-39022-K008
141-33147-K002
141-33147-K003
141-32668-K008
141-39022-K011
141-39022-K015
141-39022-K016
141-36683-K015
141-39022-K017
141-34000
141-32156-K011
141-30159-K012
141-39022-K023
141-39022-K021
141-36103-K001
141-36103-K002
141-36103-K003
