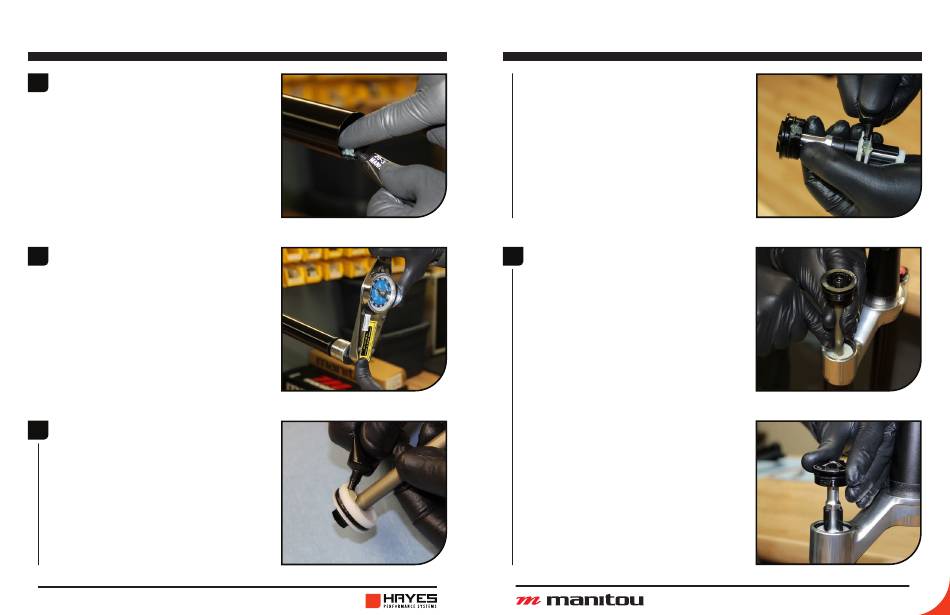

AIR SPRING SERVICE
Add Slickoleum™ grease to the
8
stanchion threads before inserting
the air spring assembly. Spread
grease across entire thread
surface.
Install air spring assembly into
9
stanchion. Using a 26mm crow's
foot and Manitou cassette tool OR
1" Socket and Standard cassette
tool torque to 40-45 LB-IN [4.5-
5.1 Nm]. If rod is bottomed, attach
shock pump to valve and draw the
rod out until fully extended.
Mattoc / JUNIT Pro:
10
Liberally apply Slickoleum™ grease
to the IRT piston seal, outer piston
surface, and IRT shaft. Apply
Slickoleum™ grease to the threads
of the stanchion.
12
MATTOC / JUNIT 34 / CIRCUS 34 SERVICE GUIDE
AIR SPRING SERVICE
Mattoc Expert / Comp, JUnit 34
Expert, Circus Pro:
Liberally apply Slickoleum™ grease
to the IVA piston seal and outer
piston surface. Apply Slickoleum™
grease to the threads of the
stanchion.
Mattoc / JUNIT Pro:
11
Insert IRT piston into stanchion.
Apply even pressure to piston
surface as you work the piston seal
past the stanchion threads.
Mattoc Expert / Comp, JUnit 34
Expert, Circus Pro:
Insert IVA Piston into the stanchion.
MATTOC / JUNIT 34 / CIRCUS 34 SERVICE GUIDE
13
