MC2 Sealed DAMPER SERVICE

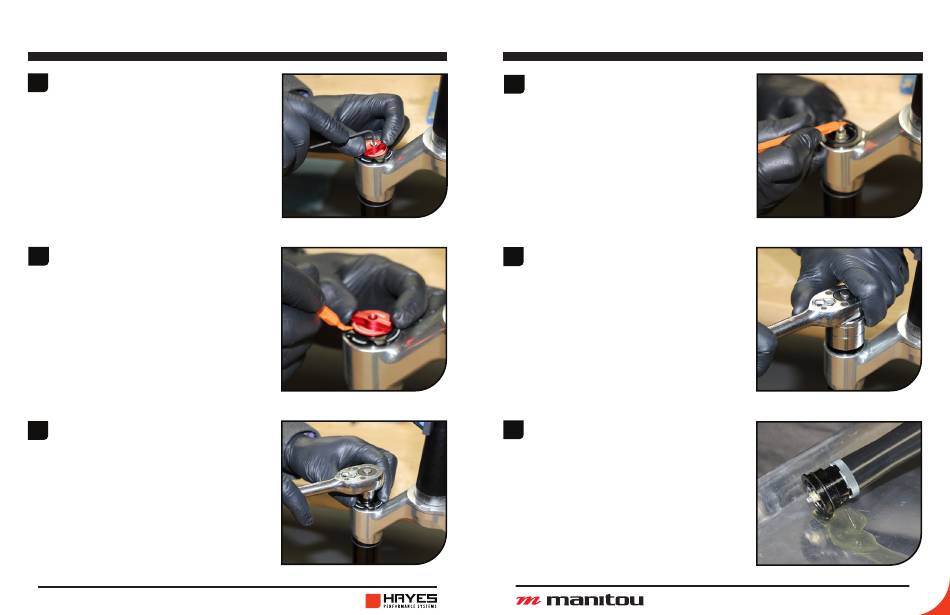

Using a 2mm Hex wrench remove
1
the screw of the red "LO-SPEED"
MC2 knob.
Note: Be sure to hold the knob
still while removing the screw. The
damper adjuster may be damaged
if the knob is over torqued.
Use a non-marring pick or pliers
2
with non-marring barrier to remove
the red "LO-SPEED" compression
knob by lifting straight up.
With a 11mm socket, unthread the
3
exposed nut and remove the black
"HI-SPEED" adjustment knob.
Note: Be sure to hold the knob
still while removing the nut. The
damper adjuster may be damaged
if the knob is over torqued.
16
MATTOC / JUNIT 34 / CIRCUS 34 SERVICE GUIDE
MC2 Sealed DAMPER SERVICE
Remove the v-seal that was under
4
the black "HI-SPEED" adjustment
knob.
Use a standard cassette tool and
5
1" socket to unthread the damper
top-cap from the stanchion.
Remove damper assembly from the
stanchion. Inspect damper shaft
and bladder for any damage.
Pull damper shaft to full extension.
6
Remove bleed-screw on side of
top-cap. Place damper top-cap
over catch pan. Cycle damper shaft
several times to cycle out old oil
from damper.
