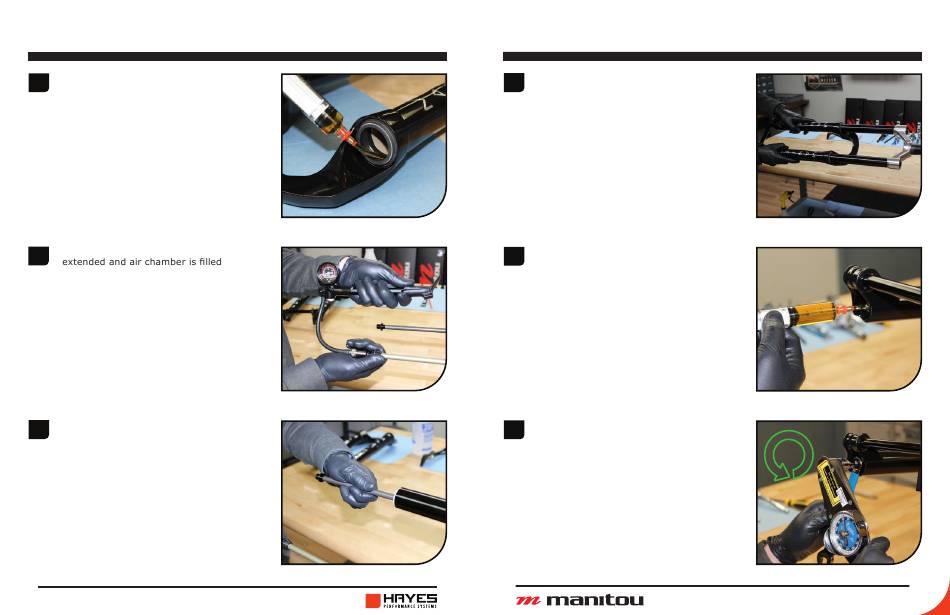

mattoc pro CASTING INSTALLation

Apply a light coating of semi-bath
1
(85-0022) to the inner diameter of
the oil seal/dust wiper.
Make sure the spring shaft is fully
2
with air (30 PSI).
Fully extend the damper shaft.
3
20
MATTOC / JUNIT 34 / CIRCUS 34 SERVICE GUIDE
mattoc pro CASTING INSTALLation
Slide casting onto the stanchion
4
assembly. Only slide the casting
down about halfway at this point.
Take care that the seal lips do not
fold over upon installation.
Insert 14cc of semi-bath (85-0022)
5
into each casting leg. Once the
semi-bath is in the legs slide the
casting the rest of the way onto
the stanchion assembly until the
damper and spring shaft adapters
pass thru the end of the casting.
Some manual alignment may be
needed.
Thread the lock-nut onto the
6
damper shaft adapter. Holding the
lock-nut with a 14mm box wrench,
use an 8mm Hex wrench to tighten
the rebound damper adapter to
35–40 in-lb [3.95–4.5 Nm] by
turning them counter-clockwise.
Do not overtighten, doing so can
damage the threads.
