mattoc pro CASTING INSTALLation

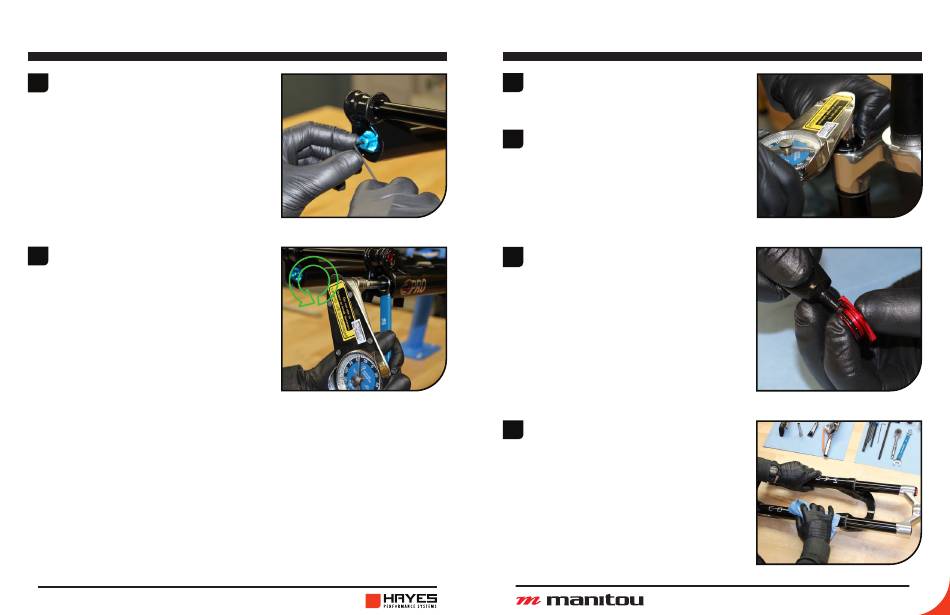

Install the rebound knob using a
7
2mm Hex wrench. Add a small drop
of blue Loctite to the screw before
installation to prevent the screw
from backing out during riding.
Note: Be sure to hold the knob
still while removing the screw. The
damper adjuster may be damaged
if the knob is over torqued.
Thread the other lock-nut onto the
8
spring shaft adapter. Holding the
lock-nut with a 14mm box wrench,
use an 8mm socket tighten the
compression rod adapter to 35–40
in-lb [3.95–4.5 Nm] by turning
them counter-clockwise. Do not
overtighten, doing so can damage
the threads.
22
MATTOC / JUNIT 34 / CIRCUS 34 SERVICE GUIDE

mattoc pro Compression Knob Installation

Clean the adjuster knobs with
1
isopropyl and replace v-seal into
top-cap counter-bore.
Install the black "HI-SPEED"
2
adjustment knob onto adjuster
hex. With a 11mm socket, thread
on the lock nut and torque to 4-6
in-lb [0.5-0.7 Nm] Note: Be sure to
hold the knob still while installing
the nut. The damper adjuster may
be damaged if the knob is over
torqued.
3 Lubricate o-ring seal on red "LO-
SPEED" adjustment knob with
Slickoleum™ Grease an install onto
adjuster hex. With a 2mm hex,
thread on the screw and torque to
4-6 in-lb [0.5-0.7 Nm] Note: Be
sure to hold the knob still while
installing the screw. The damper
adjuster may be damaged if the
knob is over torqued.
Clean fork and use a shock pump
4
to set to desired pressure. Lightly
pull the casing away from the CSA
as you add air.
