travel change

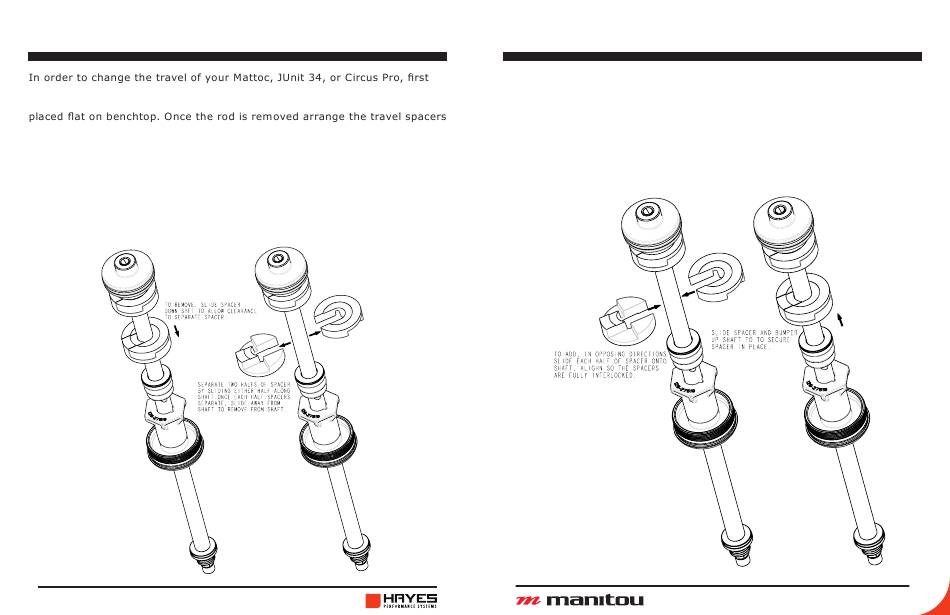

remove the compression rod assembly. For travel change on new forks,
bath oil may be preserved by removing stanchion assembly while fork is
into the desired amount of travel using the charts on the following pages.
increasing travel
Increasing Travel: Each spacer removed increase travel & axel-to-crown by 10mm.
Note: Mattoc Pro / Expert and Circus Pro use a two piece spacer. (use note below about
seperating them). Mattoc Comp, JUnit Pro / Expert use a once piece spacer that clips
onto the comp rod.
34
MATTOC / JUNIT 34 / CIRCUS 34 SERVICE GUIDE
travel change
decreasing travel
Decrease Travel: Each spacer added decreases travel & Axel-To-Crown by 10mm.
Note: Mattoc Pro / Expert and Circus Pro use a two piece spacer. (use note below about
seperating them). Mattoc Comp, JUnit Pro / Expert use a once piece spacer that clips
onto the comp rod.
MATTOC / JUNIT 34 / CIRCUS 34 SERVICE GUIDE
35
