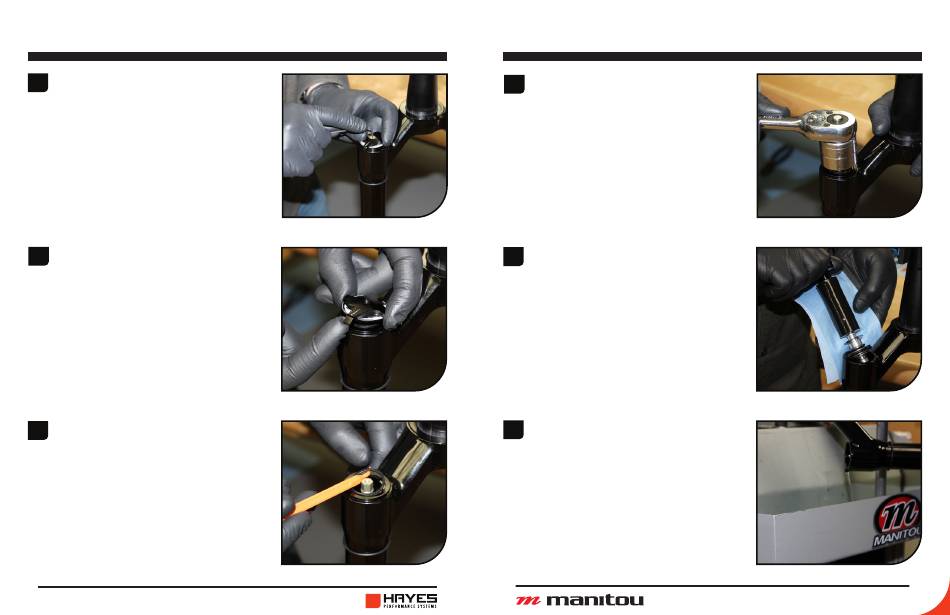

VTT6 DAMPER SERVICE

Using a 2mm Hex wrench remove
1
the screw of the VTT6knob.
Note: Be sure to hold the knob
still while removing the screw. The
damper adjuster may be damaged
if the knob is over torqued.
Use a non-marring pick or pliers
2
with non-marring barrier to remove
the black VTT knob by lifting
straight up.
Remove the v-seal that was under
3
the black VTT adjustment knob.
24
MATTOC / JUNIT 34 / CIRCUS 34 SERVICE GUIDE
VTT6 DAMPER SERVICE
Use a standard cassette tool and 1"
4
socket to unthread the damper top-
cap from the stanchion.
Remove damper assembly from the
5
stanchion. Inspect damper piston
seal for any damage.
Tip out used damper oil from top
6
of stanchion into drain pan. Cycle
damper shaft serval times to cycle
out old oil from damper.
