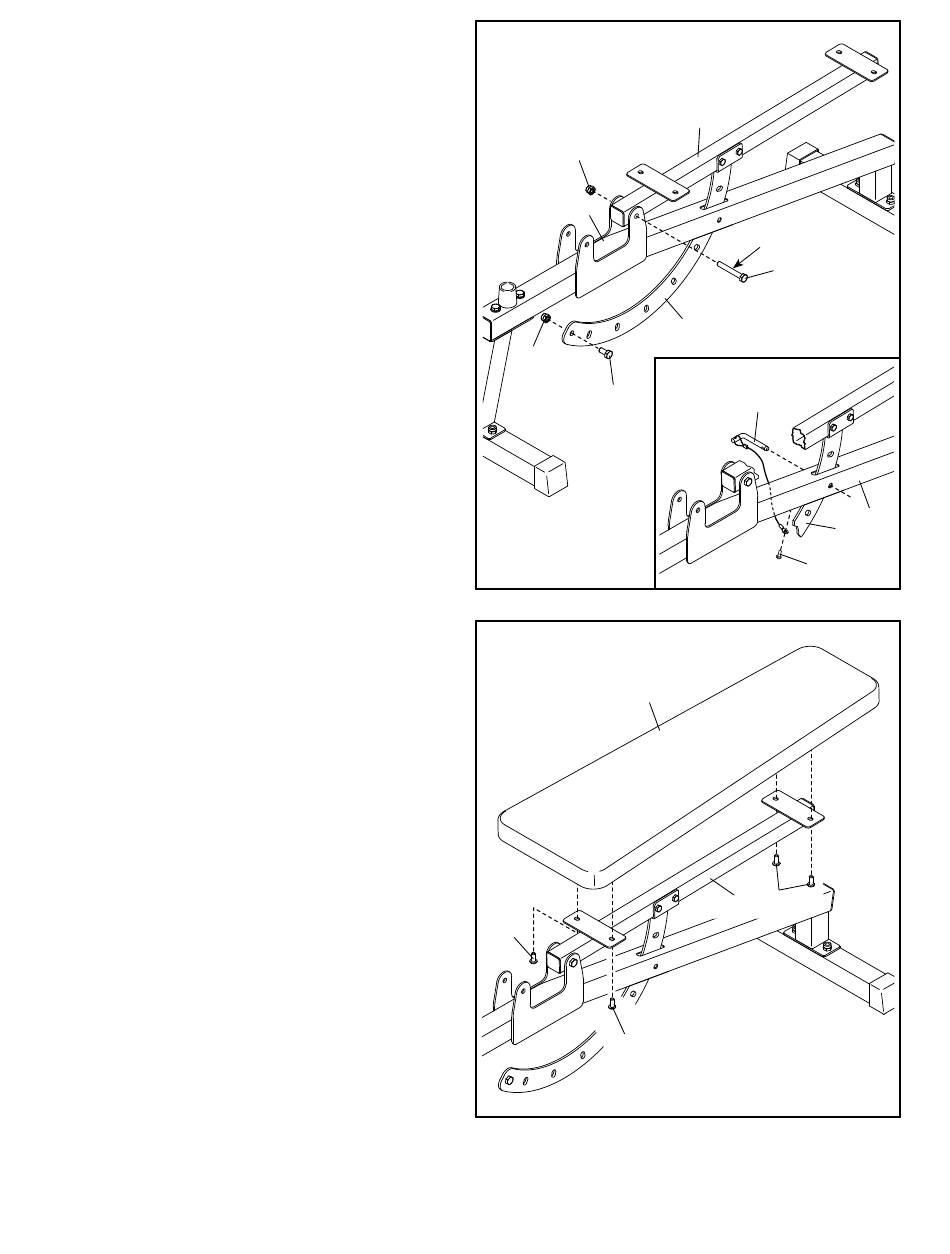

5. Using a plastic bag to keep your fingers clean,
apply some of the included grease to an
M10 x 70mm Bolt (17).
Insert the end of the Pivot Bracket (3) into the
Frame (1). Then, attach the Backrest Frame (2)
to the Frame with the M10 x 70mm Bolt (17)
and an M10 Locknut (15). Do not overtighten
the Locknut; the Backrest Frame must pivot
freely.
Next, insert an M10 x 20mm Bolt (28) into the
end of the Pivot Bracket (3) from the direction
shown. Then, tighten an M10 Locknut (15) onto
the Bolt.
See the inset drawing. Attach the tether on
the Locking Pin (26) to the Frame (1) with an
M4 x 19mm Screw (20). Next, insert the Locking
Pin into the Frame and into an adjustment hole
in the Pivot Bracket (3).
See steps 2–4. Tighten the Locknuts (15, 27).
6. Attach the Backrest (9) to the Backrest Frame
(2) with four M6 x 16mm Screws (21); start all
the Screws, and then tighten them. To avoid
damaging the Backrest, tighten the Screws
only until the Backrest does not move or feel
loose.
Note: To adjust the angle of the Backrest (9), see
ADJUSTING THE BACKREST on page 12.
5
15
1
15
28
6
9
21
21
9
2
Grease
17
3
26
3
20
2 21
1
