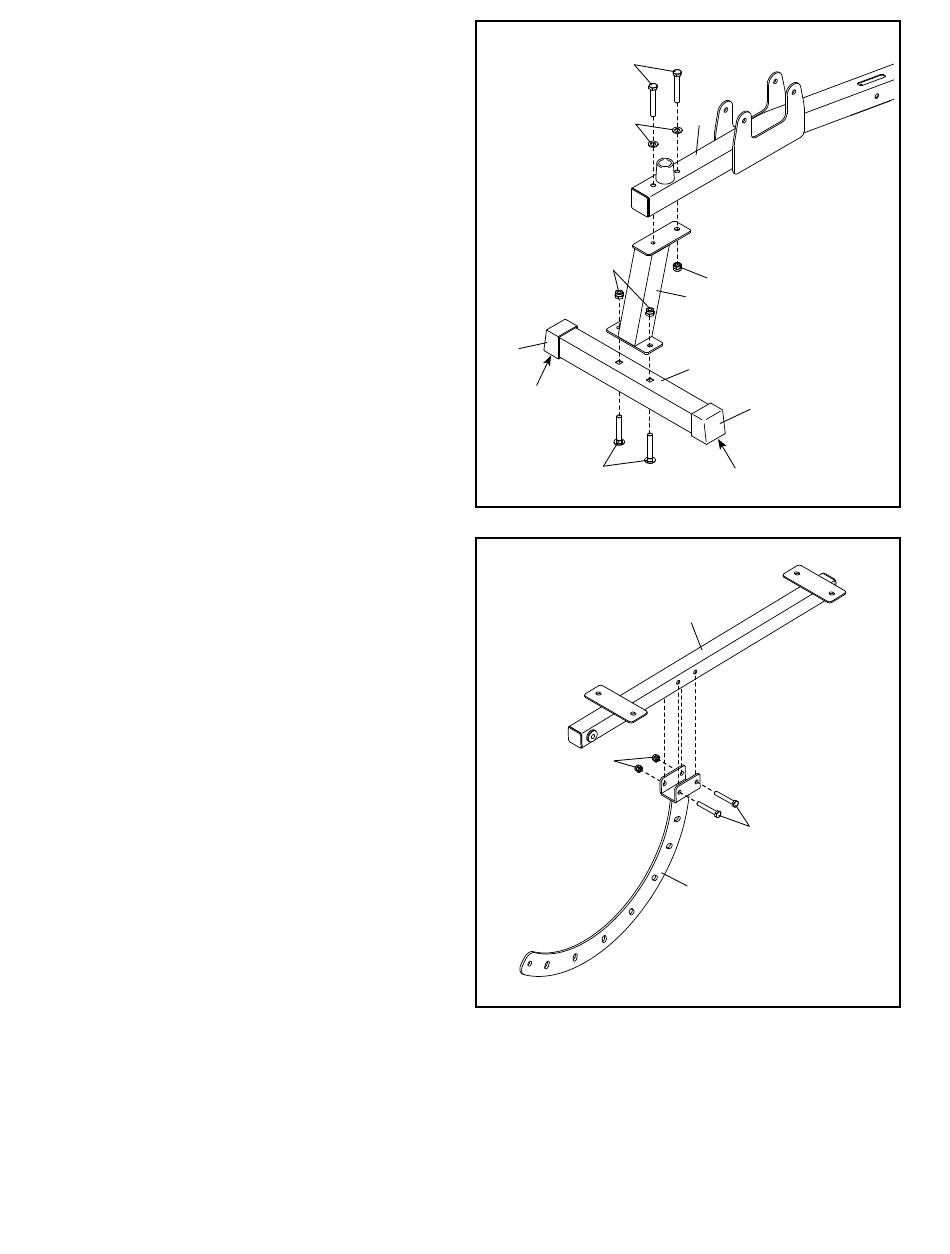

3. Orient a Stabilizer (6) so that the widest sides
(A) of the Stabilizer Caps (13) touch the floor.
Attach the Stabilizer (6) to the Leg (5) with
two M10 x 65mm Carriage Bolts (14) and two
M10 Locknuts (15); do not fully tighten the
Locknuts yet.
Then, attach the Leg (5) to the Frame (1) with
two M10 x 70mm Bolts (17), two M10 Washers
(16), and an M10 Locknut (15); do not fully
tighten the Locknut yet.
4. Attach the Pivot Bracket (3) to the Backrest
Frame (2) with two M8 x 55mm Bolts (19) and
two M8 Locknuts (27); do not fully tighten the
Locknuts yet.
3
17
16
15
13
A
14
4
27
8
1
15
5
6
13
A
2
19
3
