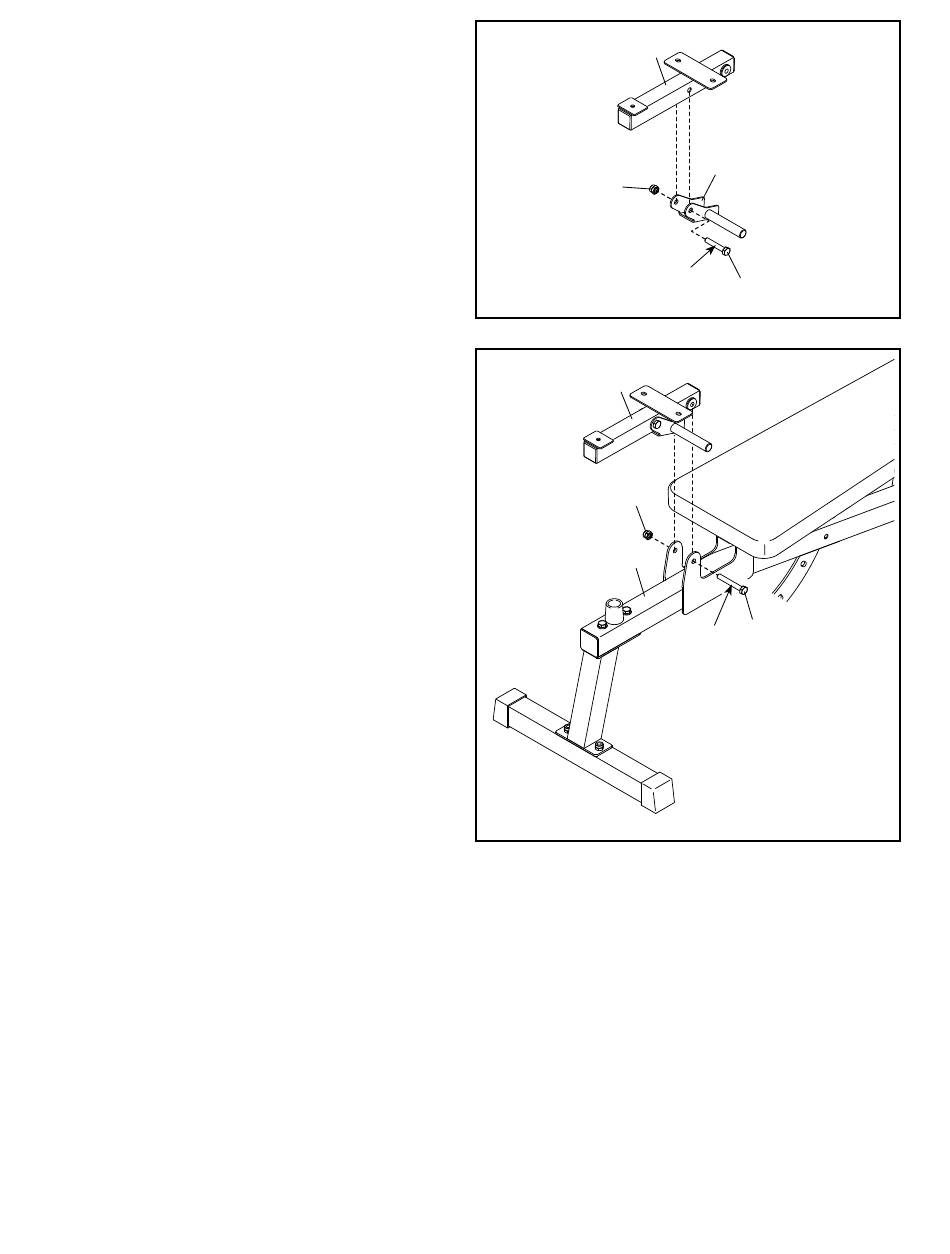

7. Apply grease to an M10 x 60mm Bolt (25).
Attach the Seat Brace (18) to the Seat Frame
(4) with the M10 x 60mm Bolt (25) and an M10
Locknut (15). Do not overtighten the Locknut;
the Seat Brace must pivot freely.
8. Apply grease to an M10 x 70mm Bolt (17).
Attach the Seat Frame (4) to the Frame (1) with
the M10 x 70mm Bolt (17) and an M10 Locknut
(15). Do not overtighten the Locknut; the Seat
Frame must pivot freely.
7
15
Grease
8
4
15
1
10
4
18
25
17
Grease
