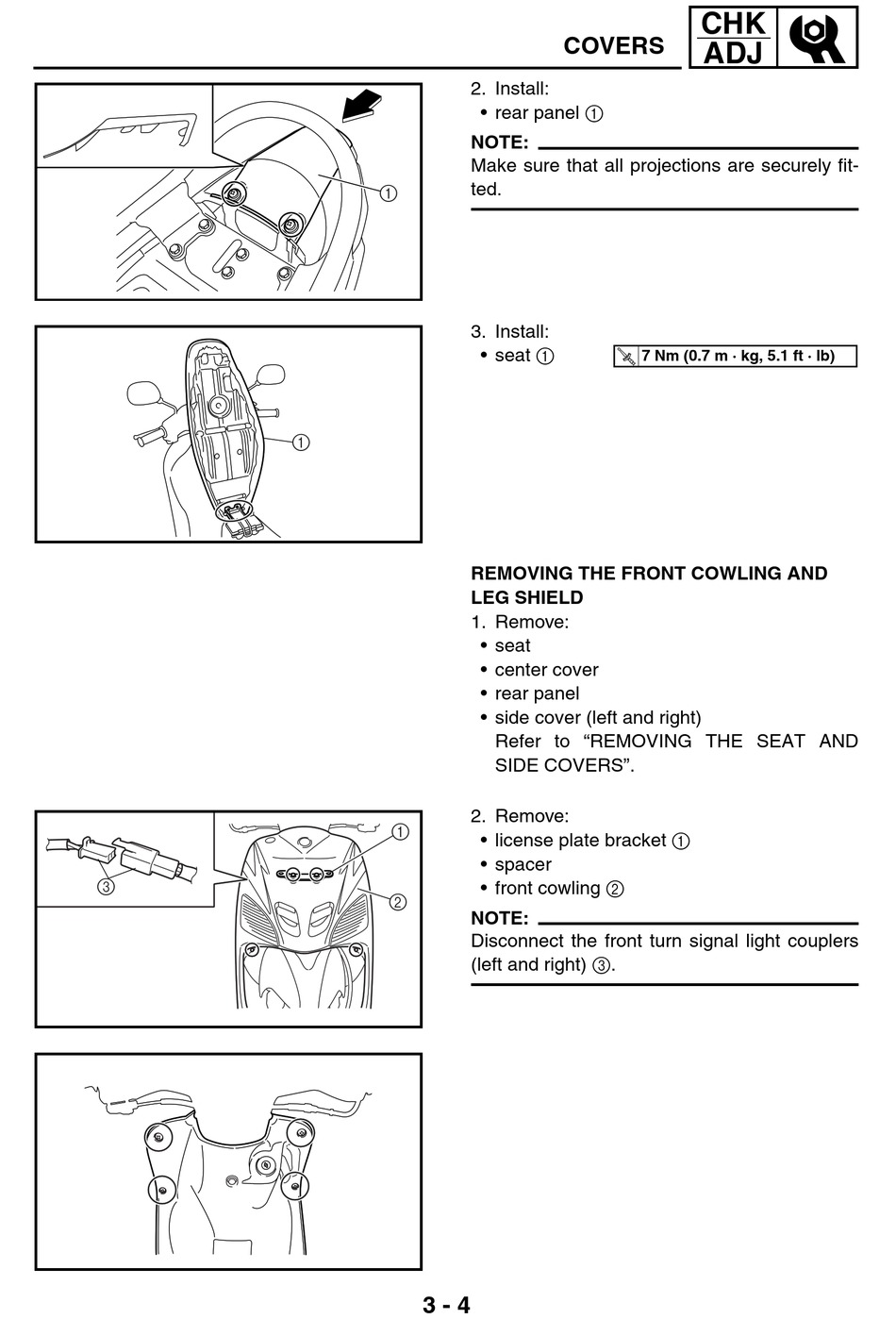

3 - 4
COVERS
2. Install:
• rear panel 1
NOTE:
Make sure that all projections are securely fit-
ted.
3. Install:
• seat 1
REMOVING THE FRONT COWLING AND
LEG SHIELD
1. Remove:
• seat
• center cover
• rear panel
• side cover (left and right)
Refer to "REMOVING THE SEAT AND
SIDE COVERS".
2. Remove:
• license plate bracket 1
• spacer
• front cowling 2
NOTE:
Disconnect the front turn signal light couplers
(left and right) 3.
CHK
ADJ
7 Nm (0.7 m · kg, 5.1 ft · lb)
