CHECKING THE BRAKE FLUID LEVEL

a

ADJUSTING THE REAR BRAKE/

a
3 - 25
EAS00108

CHASSIS

EAS00114

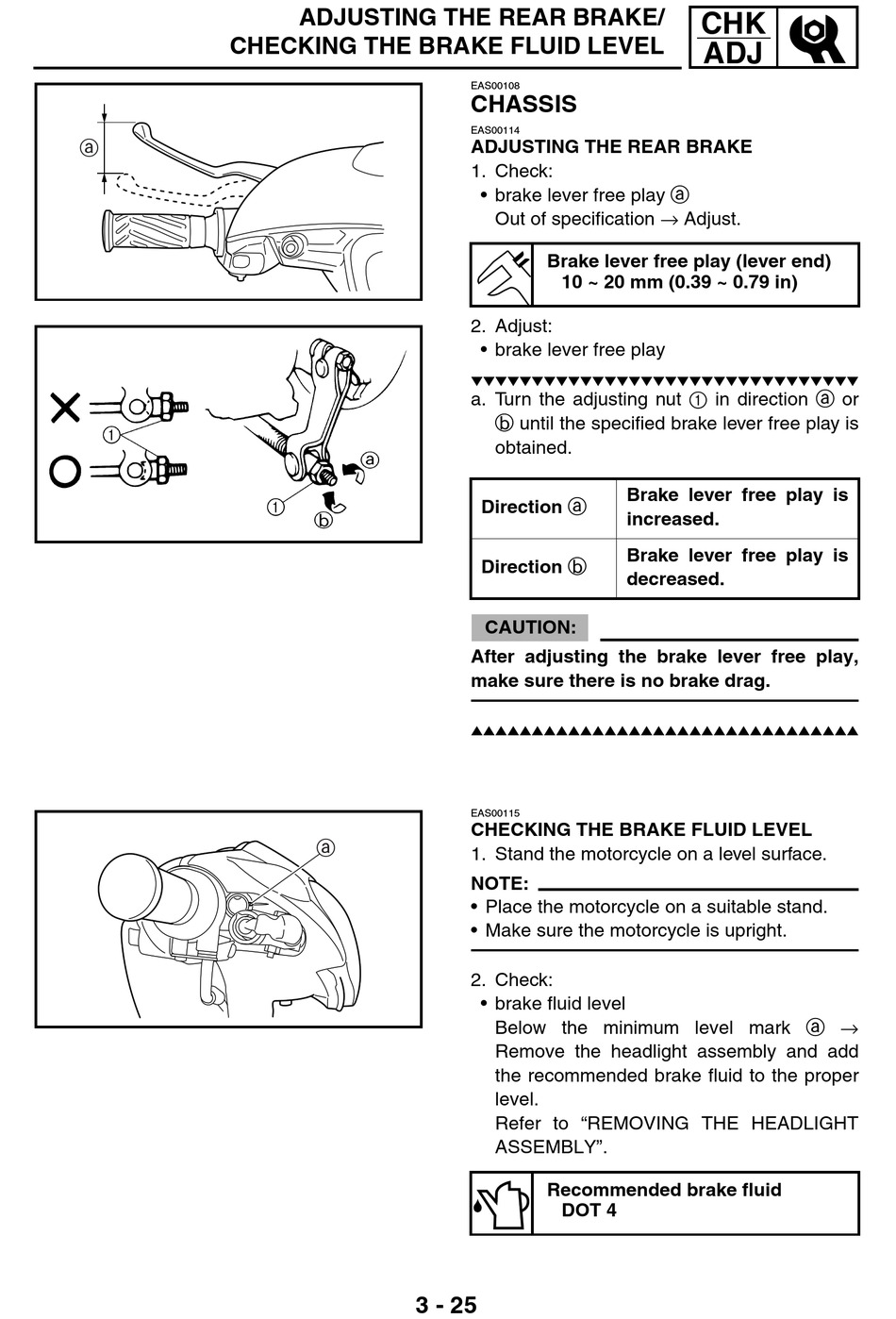

ADJUSTING THE REAR BRAKE
1. Check:
• brake lever free play a
Out of specification → Adjust.
Brake lever free play (lever end)
10 ~ 20 mm (0.39 ~ 0.79 in)
2. Adjust:
• brake lever free play
M MMM M MMM M M MMM M
a. Turn the adjusting nut 1 in direction a or
b until the specified brake lever free play is
obtained.
Brake lever free play is
Direction a
increased.
Brake lever free play is
Direction b
decreased.
CAUTION:
_
After adjusting the brake lever free play,
make sure there is no brake drag.
L LLL L LLL L L LLL L
EAS00115
CHECKING THE BRAKE FLUID LEVEL
1. Stand the motorcycle on a level surface.
NOTE:
_
• Place the motorcycle on a suitable stand.
• Make sure the motorcycle is upright.
2. Check:
• brake fluid level
Below the minimum level mark a →
Remove the headlight assembly and add
the recommended brake fluid to the proper
level.
Refer to "REMOVING THE HEADLIGHT
ASSEMBLY".
Recommended brake fluid
DOT 4
CHK
ADJ
M MMM M M MMM M M MMM M
L LLL L L LLL L L LLL L
