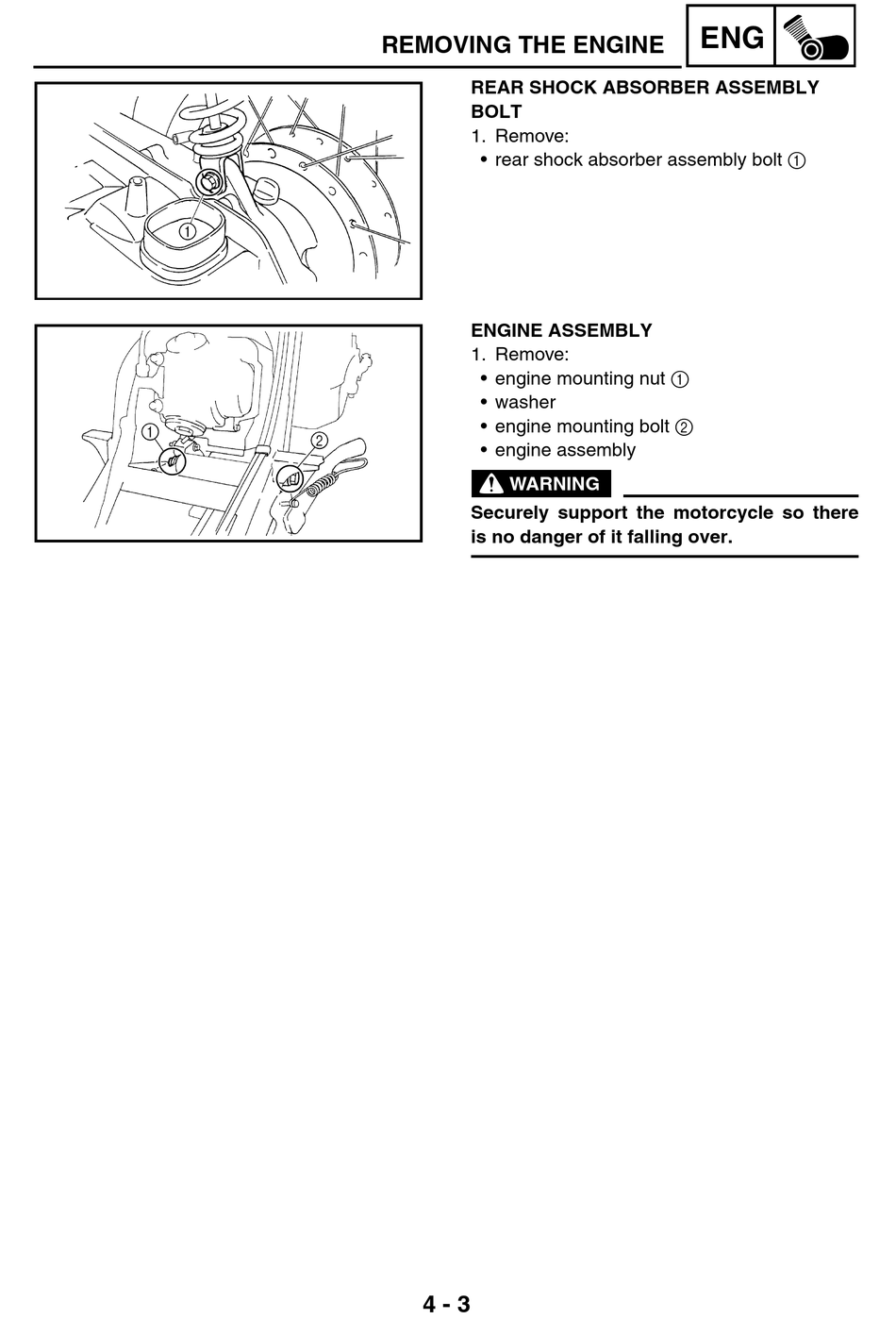

REMOVING THE ENGINE
REAR SHOCK ABSORBER ASSEMBLY
BOLT
1. Remove:

• rear shock absorber assembly bolt 1

ENGINE ASSEMBLY

1. Remove:
• engine mounting nut 1
• washer
• engine mounting bolt 2
• engine assembly
WARNING
_
Securely support the motorcycle so there
is no danger of it falling over.
4 - 3
ENG
