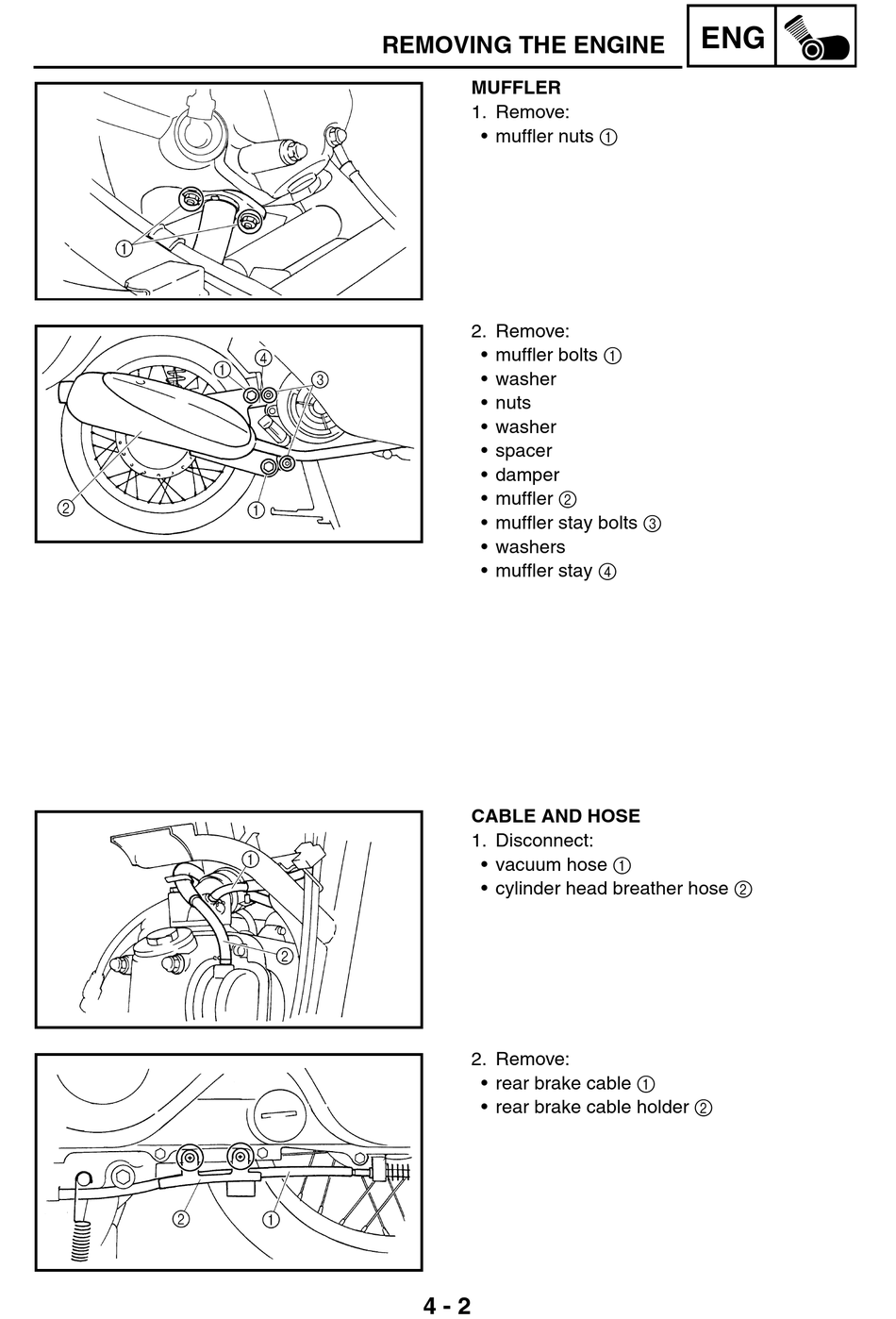

REMOVING THE ENGINE
MUFFLER
1. Remove:
• muffler nuts 1
2. Remove:
• muffler bolts 1
• washer
• nuts
• washer
• spacer
• damper
• muffler 2
• muffler stay bolts 3
• washers
• muffler stay 4
CABLE AND HOSE
1. Disconnect:
• vacuum hose 1
• cylinder head breather hose 2
2. Remove:
• rear brake cable 1
• rear brake cable holder 2
4 - 2
ENG
