The SmartLoop control panel

3.1

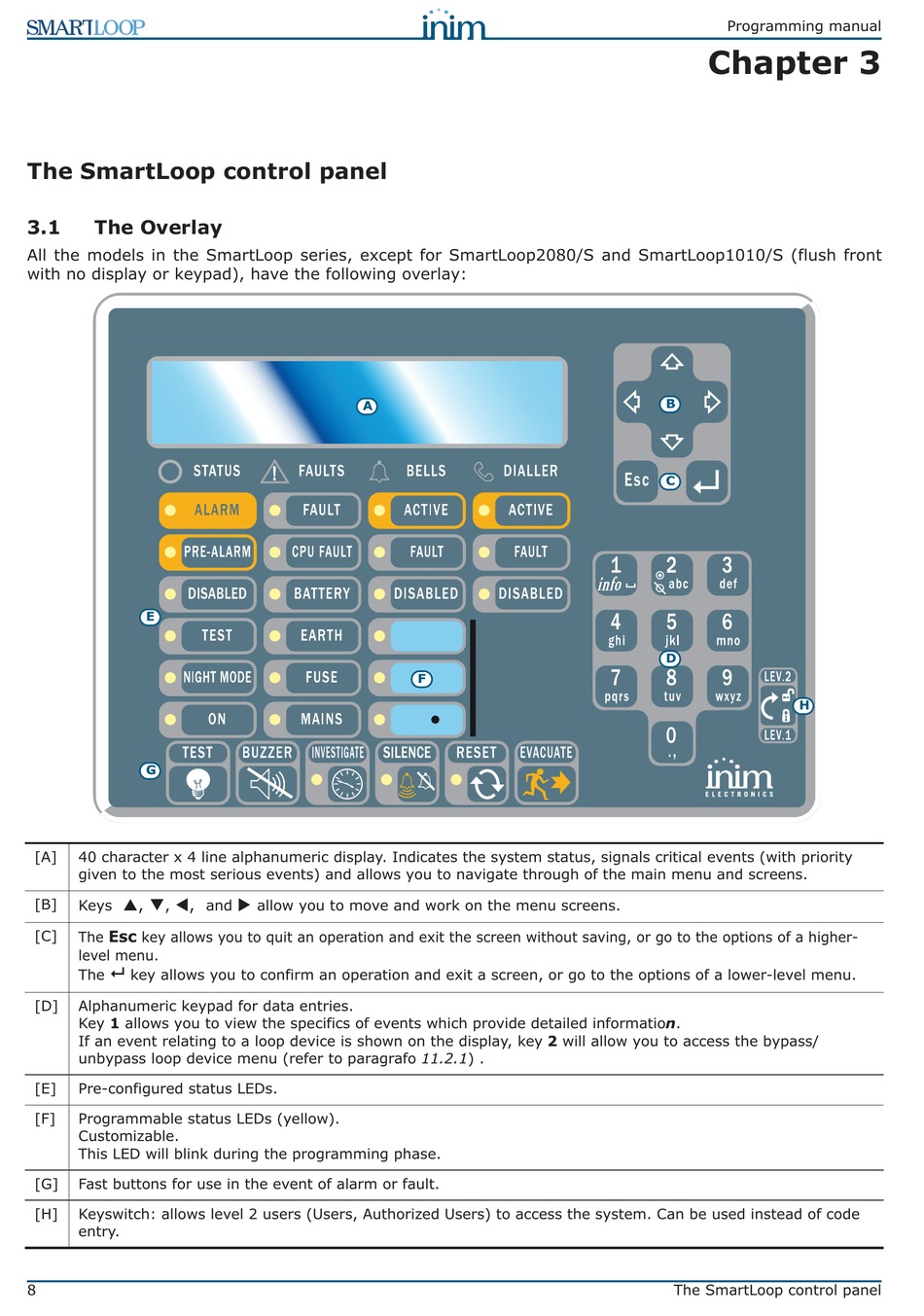

The Overlay

All the models in the SmartLoop series, except for SmartLoop2080/S and SmartLoop1010/S (flush front
with no display or keypad), have the following overlay:
E
G
[A] 40 character x 4 line alphanumeric display. Indicates the system status, signals critical events (with priority
given to the most serious events) and allows you to navigate through of the main menu and screens.
S, T W,
[B]
Keys ,
Esc
[C]
The key allows you to quit an operation and exit the screen without saving, or go to the options of a higher-
level menu.

The key allows you to confirm an operation and exit a screen, or go to the options of a lower-level menu.
[D] Alphanumeric keypad for data entries.
Key 1 allows you to view the specifics of events which provide detailed information.
If an event relating to a loop device is shown on the display, key 2 will allow you to access the bypass/
unbypass loop device menu (refer to paragrafo 11.2.1) .
[E] Pre-configured status LEDs.
[F] Programmable status LEDs (yellow).
Customizable.
This LED will blink during the programming phase.
[G] Fast buttons for use in the event of alarm or fault.
[H] Keyswitch: allows level 2 users (Users, Authorized Users) to access the system. Can be used instead of code
entry.
8
A
X
and allow you to move and work on the menu screens.
F
Programming manual
Chapter 3
B
C
D
H
The SmartLoop control panel
