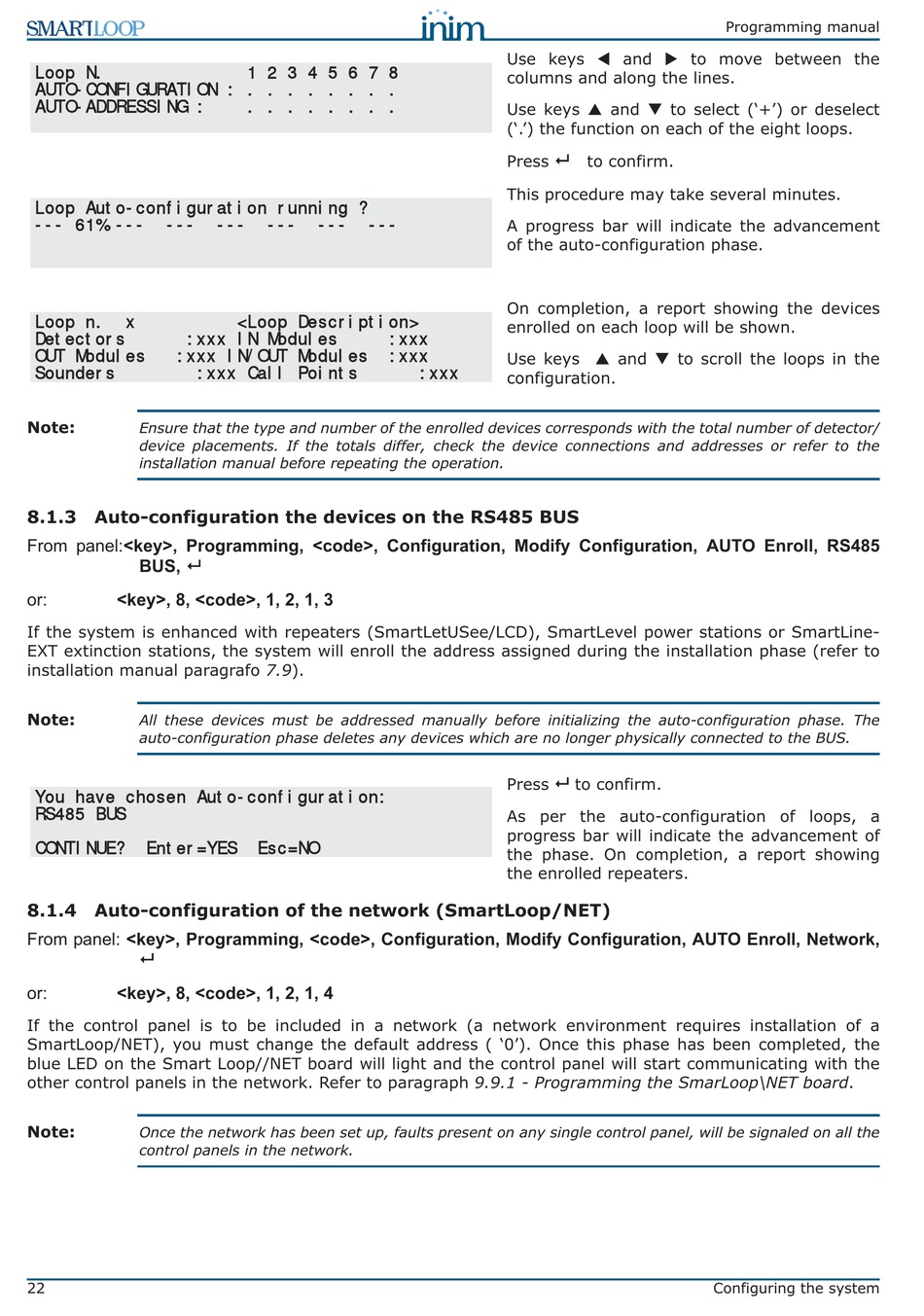

INIM SMARTLOOP 0051-CPR-0225 Manual page 22

Loop N.
AUTO-CONFIGURATION : . . . . . . . .
AUTO-ADDRESSING :
Loop Auto-configuration running ?
--- 61% --- ---
Loop n. x
Detectors :xxx IN Modules
OUT Modules :xxx IN/OUT Modules
Sounders :xxx Call Points
Note:
Ensure that the type and number of the enrolled devices corresponds with the total number of detector/
device placements. If the totals differ, check the device connections and addresses or refer to the
installation manual before repeating the operation.
8.1.3 Auto-configuration the devices on the RS485 BUS
From panel:<key>, Programming, <code>, Configuration, Modify Configuration, AUTO Enroll, RS485
BUS,
or:
<key>, 8, <code>, 1, 2, 1, 3
If the system is enhanced with repeaters (SmartLetUSee/LCD), SmartLevel power stations or SmartLine-
EXT extinction stations, the system will enroll the address assigned during the installation phase (refer to
installation manual paragrafo 7.9).
Note:
All these devices must be addressed manually before initializing the auto-configuration phase. The
auto-configuration phase deletes any devices which are no longer physically connected to the BUS.
You have chosen Auto-configuration:
RS485 BUS
CONTINUE? Enter=YES
8.1.4 Auto-configuration of the network (SmartLoop/NET)
From panel: <key>, Programming, <code>, Configuration, Modify Configuration, AUTO Enroll, Network,

or:
<key>, 8, <code>, 1, 2, 1, 4
If the control panel is to be included in a network (a network environment requires installation of a
SmartLoop/NET), you must change the default address ( '0'). Once this phase has been completed, the
blue LED on the Smart Loop//NET board will light and the control panel will start communicating with the
other control panels in the network. Refer to paragraph 9.9.1 - Programming the SmarLoop\NET board.
Note:
Once the network has been set up, faults present on any single control panel, will be signaled on all the
control panels in the network.
22
1 2 3 4 5 6 7 8
. . . . . . . .
--- --- --- ---
<Loop Description>
:xxx
:xxx
Esc=NO
Use keys W and X to move between the
columns and along the lines.
Use keys S and T to select ('+') or deselect
('.') the function on each of the eight loops.

Press to confirm.
This procedure may take several minutes.
A progress bar will indicate the advancement
of the auto-configuration phase.
On completion, a report showing the devices
enrolled on each loop will be shown.
Use keys S and T to scroll the loops in the
:xxx
configuration.

Press to confirm.
As per the auto-configuration of loops, a
progress bar will indicate the advancement of
the phase. On completion, a report showing
the enrolled repeaters.
Programming manual
Configuring the system
