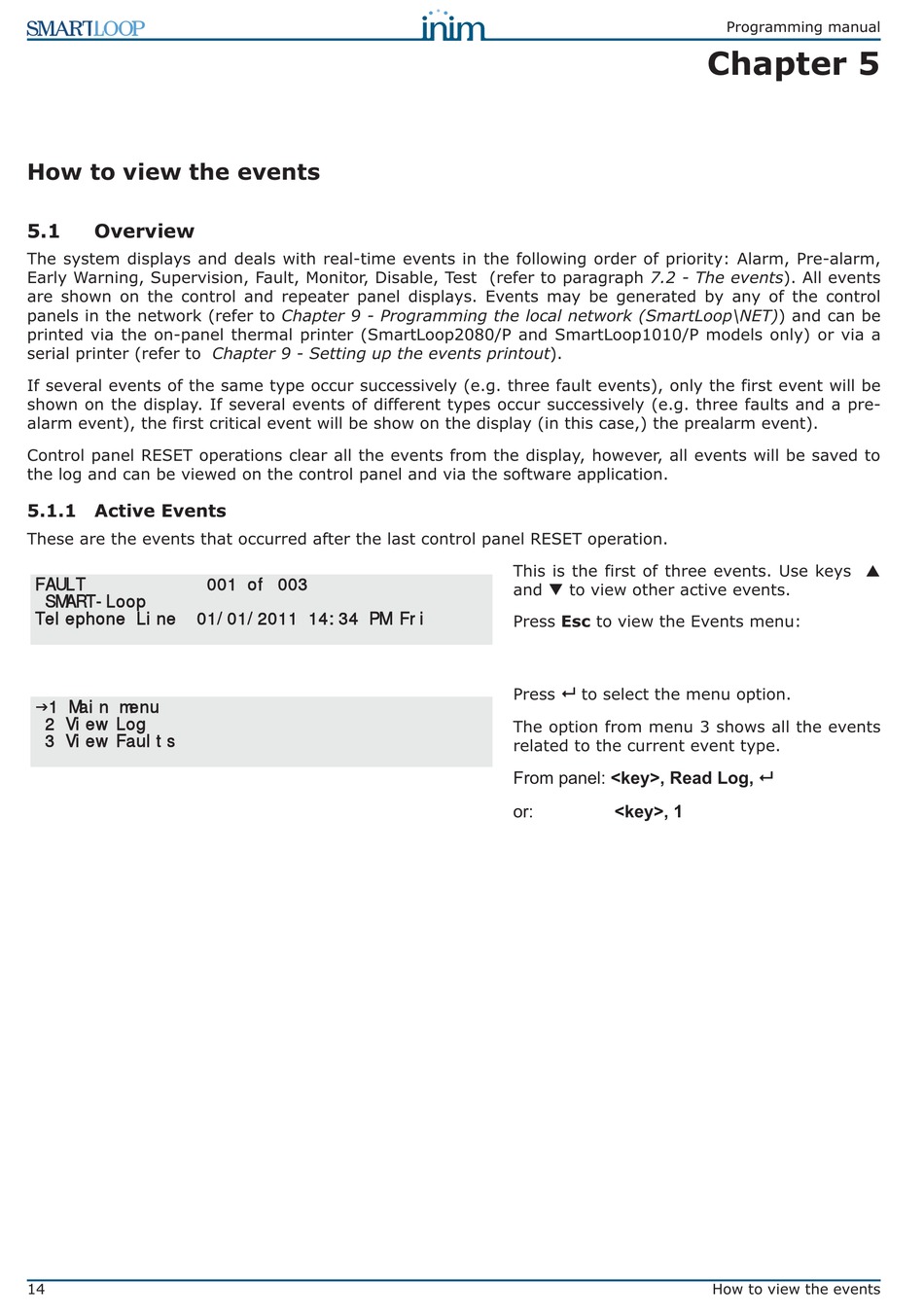

How to view the events

5.1

Overview

The system displays and deals with real-time events in the following order of priority: Alarm, Pre-alarm,
Early Warning, Supervision, Fault, Monitor, Disable, Test (refer to paragraph 7.2 - The events). All events
are shown on the control and repeater panel displays. Events may be generated by any of the control
panels in the network (refer to Chapter 9 - Programming the local network (SmartLoop\NET)) and can be
printed via the on-panel thermal printer (SmartLoop2080/P and SmartLoop1010/P models only) or via a
serial printer (refer to Chapter 9 - Setting up the events printout).
If several events of the same type occur successively (e.g. three fault events), only the first event will be
shown on the display. If several events of different types occur successively (e.g. three faults and a pre-
alarm event), the first critical event will be show on the display (in this case,) the prealarm event).
Control panel RESET operations clear all the events from the display, however, all events will be saved to
the log and can be viewed on the control panel and via the software application.
5.1.1 Active Events
These are the events that occurred after the last control panel RESET operation.
FAULT
SMART-Loop
Telephone Line 01/01/2011 14:34 PM Fri
J
1 Main menu
2 View Log
3 View Faults
14
001 of 003
This is the first of three events. Use keys S
and T to view other active events.
Press Esc to view the Events menu:

Press to select the menu option.
The option from menu 3 shows all the events
related to the current event type.
From panel: <key>, Read Log,
or:
<key>, 1
