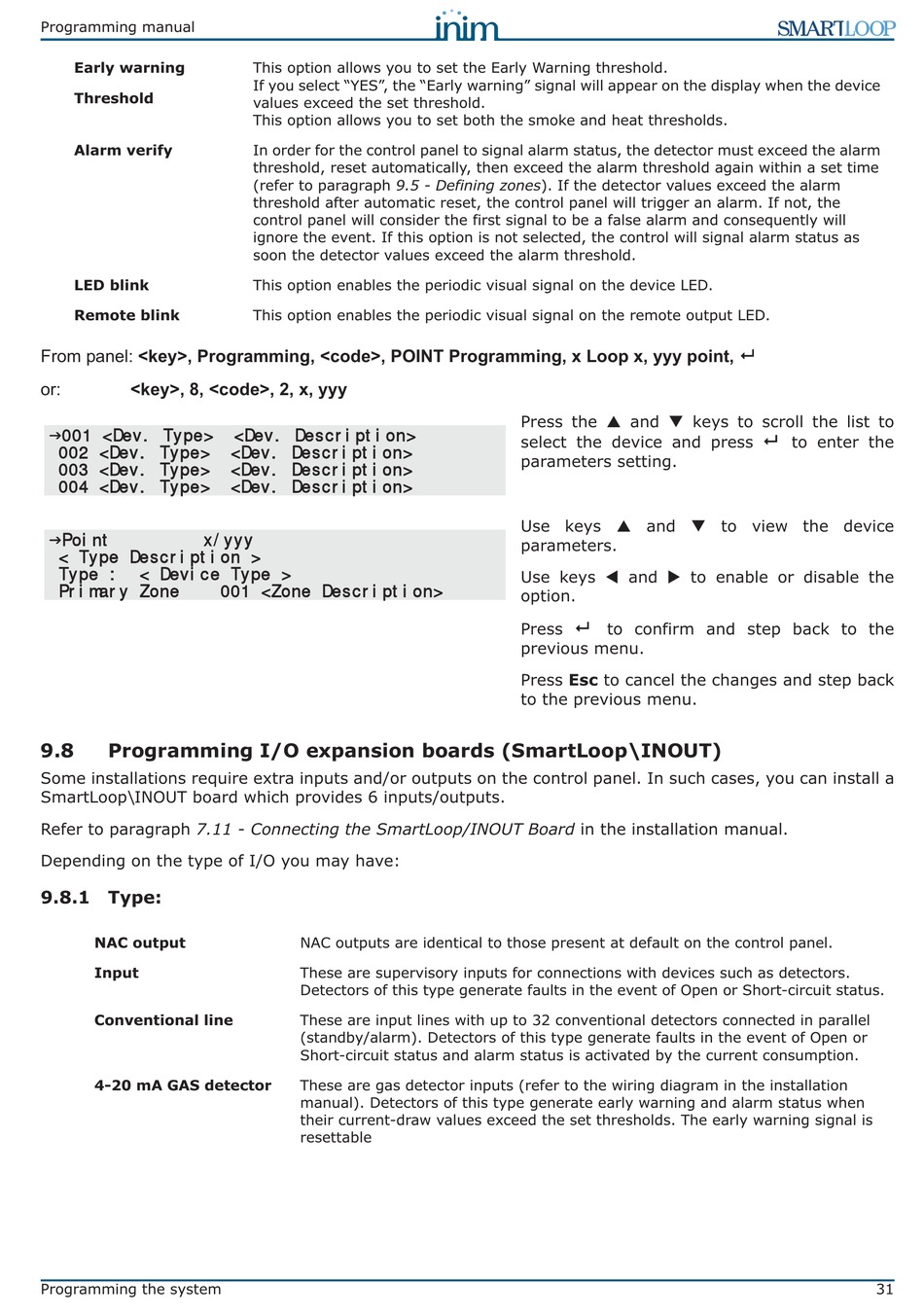

Programming I/O Expansion Boards (Smartloop\Inout) - INIM SMARTLOOP 0051-CPR-0225 Manual

Programming manual
Early warning
Threshold
Alarm verify
LED blink
Remote blink
From panel: <key>, Programming, <code>, POINT Programming, x Loop x, yyy point,
or:
<key>, 8, <code>, 2, x, yyy
J
001 <Dev. Type>
002 <Dev. Type>
003 <Dev. Type>
004 <Dev. Type>
J
Point x/yyy
< Type Description >
Type : < Device Type >
Primary Zone
9.8

Programming I/O expansion boards (SmartLoop\INOUT)

Some installations require extra inputs and/or outputs on the control panel. In such cases, you can install a
SmartLoop\INOUT board which provides 6 inputs/outputs.
Refer to paragraph 7.11 - Connecting the SmartLoop/INOUT Board in the installation manual.
Depending on the type of I/O you may have:
9.8.1 Type:
NAC output
Input
Conventional line
4-20 mA GAS detector
Programming the system
This option allows you to set the Early Warning threshold.
If you select "YES", the "Early warning" signal will appear on the display when the device
values exceed the set threshold.
This option allows you to set both the smoke and heat thresholds.
In order for the control panel to signal alarm status, the detector must exceed the alarm
threshold, reset automatically, then exceed the alarm threshold again within a set time
(refer to paragraph 9.5 - Defining zones). If the detector values exceed the alarm
threshold after automatic reset, the control panel will trigger an alarm. If not, the
control panel will consider the first signal to be a false alarm and consequently will
ignore the event. If this option is not selected, the control will signal alarm status as
soon the detector values exceed the alarm threshold.
This option enables the periodic visual signal on the device LED.
This option enables the periodic visual signal on the remote output LED.
<Dev. Description>
<Dev. Description>
<Dev. Description>
<Dev. Description>
001 <Zone Description>
NAC outputs are identical to those present at default on the control panel.
These are supervisory inputs for connections with devices such as detectors.
Detectors of this type generate faults in the event of Open or Short-circuit status.
These are input lines with up to 32 conventional detectors connected in parallel
(standby/alarm). Detectors of this type generate faults in the event of Open or
Short-circuit status and alarm status is activated by the current consumption.
These are gas detector inputs (refer to the wiring diagram in the installation
manual). Detectors of this type generate early warning and alarm status when
their current-draw values exceed the set thresholds. The early warning signal is
resettable
Press the S and T keys to scroll the list to
select the device and press
parameters setting.
Use keys S and T to view the device
parameters.
Use keys W and X to enable or disable the
option.

Press to confirm and step back to the
previous menu.
Press Esc to cancel the changes and step back
to the previous menu.

to enter the
