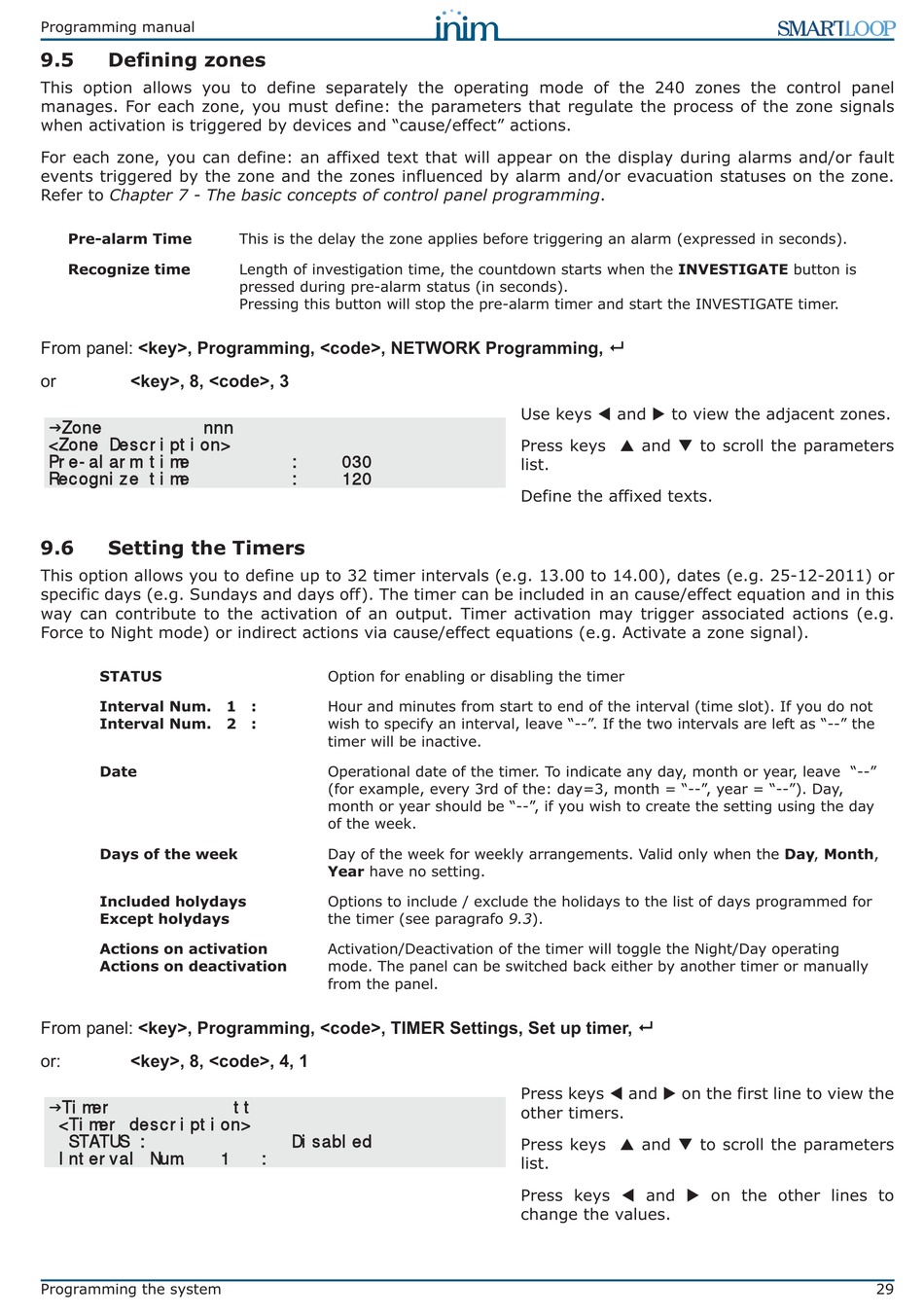

Programming manual
9.5

Defining zones

This option allows you to define separately the operating mode of the 240 zones the control panel
manages. For each zone, you must define: the parameters that regulate the process of the zone signals
when activation is triggered by devices and "cause/effect" actions.
For each zone, you can define: an affixed text that will appear on the display during alarms and/or fault
events triggered by the zone and the zones influenced by alarm and/or evacuation statuses on the zone.
Refer to Chapter 7 - The basic concepts of control panel programming.
Pre-alarm Time
Recognize time
From panel: <key>, Programming, <code>, NETWORK Programming,
or
<key>, 8, <code>, 3
J
Zone nnn
<Zone Description>
Pre-alarm time
Recognize time
9.6

Setting the Timers

This option allows you to define up to 32 timer intervals (e.g. 13.00 to 14.00), dates (e.g. 25-12-2011) or
specific days (e.g. Sundays and days off). The timer can be included in an cause/effect equation and in this
way can contribute to the activation of an output. Timer activation may trigger associated actions (e.g.
Force to Night mode) or indirect actions via cause/effect equations (e.g. Activate a zone signal).
STATUS
Interval Num. 1 :
Interval Num. 2 :
Date
Days of the week
Included holydays
Except holydays
Actions on activation
Actions on deactivation
From panel: <key>, Programming, <code>, TIMER Settings, Set up timer,
or:
<key>, 8, <code>, 4, 1
J
Timer
<Timer description>
STATUS :
Interval Num.
Programming the system
This is the delay the zone applies before triggering an alarm (expressed in seconds).
Length of investigation time, the countdown starts when the INVESTIGATE button is
pressed during pre-alarm status (in seconds).
Pressing this button will stop the pre-alarm timer and start the INVESTIGATE timer.
: 030
: 120
Option for enabling or disabling the timer
Hour and minutes from start to end of the interval (time slot). If you do not
wish to specify an interval, leave "--". If the two intervals are left as "--" the
timer will be inactive.
Operational date of the timer. To indicate any day, month or year, leave "--"
(for example, every 3rd of the: day=3, month = "--", year = "--"). Day,
month or year should be "--", if you wish to create the setting using the day
of the week.
Day of the week for weekly arrangements. Valid only when the Day, Month,
Year have no setting.
Options to include / exclude the holidays to the list of days programmed for
the timer (see paragrafo 9.3).
Activation/Deactivation of the timer will toggle the Night/Day operating
mode. The panel can be switched back either by another timer or manually
from the panel.
tt
Disabled
1 :
Use keys W and X to view the adjacent zones.
Press keys S and T to scroll the parameters
list.
Define the affixed texts.
Press keys W and X on the first line to view the
other timers.
Press keys S and T to scroll the parameters
list.
Press keys W and X on the other lines to
change the values.
