Flowserve FlowAct IG 253 Assembly Instructions Manual page 7

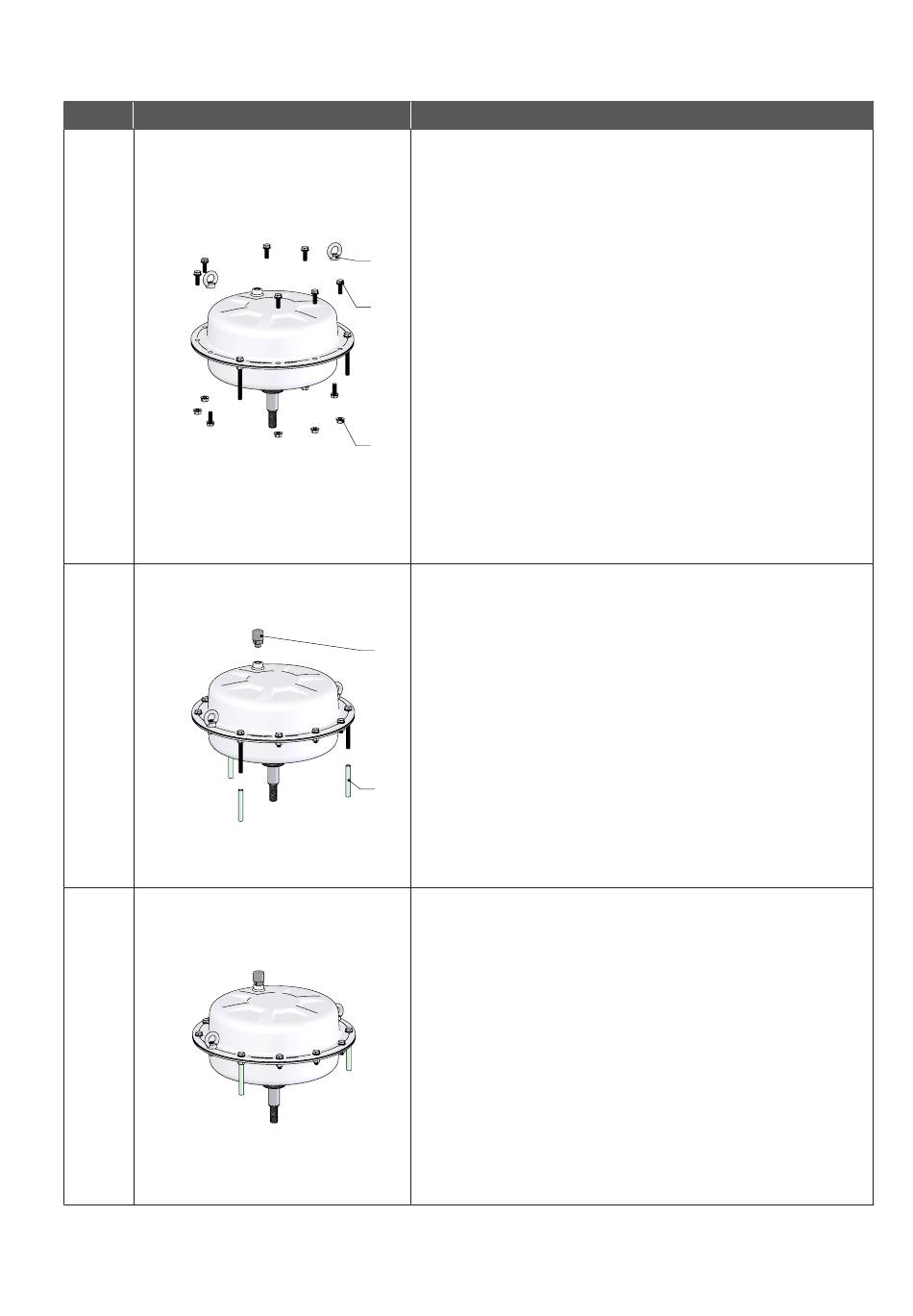

Step Image
5
6
7
Instruction
• Lubricate the threats of the hexagon bolts (335) with a
suitable lubricant. (See Page 13, Table A3)
• Install and finger tighten the hexagon bolts (335) and
209
hexagon nuts (351).
335
• Install and finger tighten the hexagon bolts (335) and
ring nuts (209).
• Tighten the nuts (351) in four steps -
351
- using a crosswise pattern. (See Page 13, Table A2)
258
• Install the vent plug (258).
• Install the plastic pipe (339).
339
• Mark and store the pre-assembled actuator body for
further use.
FlowAct IG - FCD VLENAI00IGA4 03/15
30 %
60 %
100 %
and all around 100 %
