Flowserve FlowAct IG 253 Assembly Instructions Manual page 23

Step Image
6
7
Instruction
420
CRUSHING HAZARD ! Do not work between the
yoke legs while the valve is in operation.
400
• Disconnect the air supply so that it move to the open
position.
252

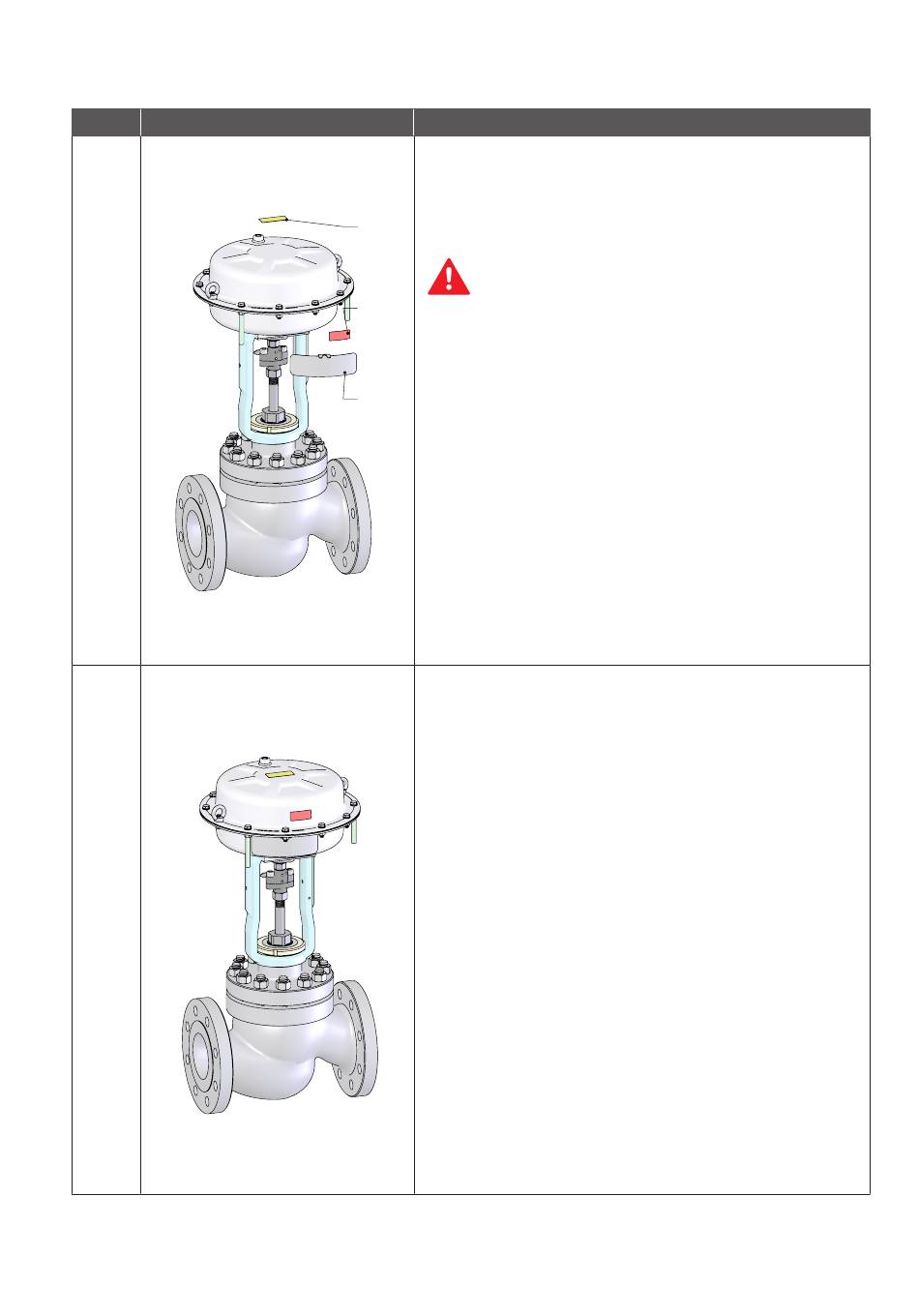

• Remove one hexagon bolt (335, 351) and install the
serial plate (252).
• Tighten the nut (335, 351). (See Page 13, Table A2)
• De-grease the adhesive surface and stick on the
warning label (420) and the brand-name label (400)
• The valve is ready for the mounting of the accessories.
• Refer to the relevant manufacturer's user instruction
for information regarding other ancillary equipment.
