7.0 Using the CyberData Intercom in a Zoom system.

CyberData Intercoms are used for access control. Depending on the number of keys the intercom
has there are different ways to use the intercom. A single button intercom can be configured to
call a number when the call button is pressed. The Keypad variants can take advantage of the
keypad and dial numbers to make a call. There are several different modes that can be used on
Keypad intercoms.
7.1 Setting the Dialout Extension – Single button intercom
Once the intercom is registered with Zoom the "Dial out Extension" will need to be set for the
intercom to call a number when the front Call Button has been pressed. This number can be
either a direct extension, ring group/ call queue, or a direct phone number.
1. After Logging into the intercom go to the SIP Tab.
2. On the SIP Tab set the Dial out Extension to the address you want the intercom to call.
3. The Extension ID of the intercom is what should appear on the caller ID of the intercom.

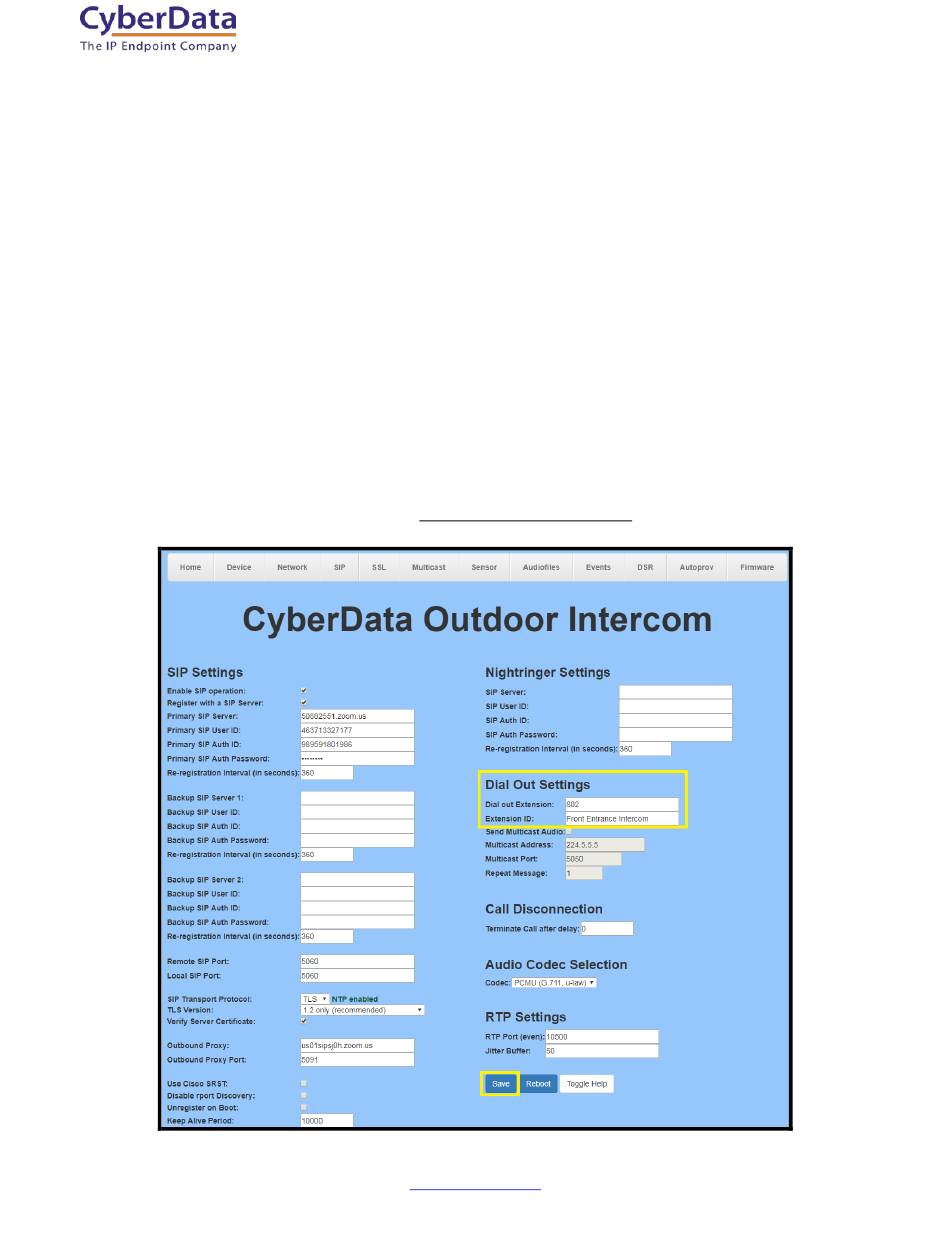

Figure 7-1: Set the Dial out Extension
