6.3. Connecting the optional USB keyboard

Instead of using the controls on the front panel to configure the nShield nShield 5c, you
can use a US or UK keyboard. You might find a keyboard easier for entering dates and IP

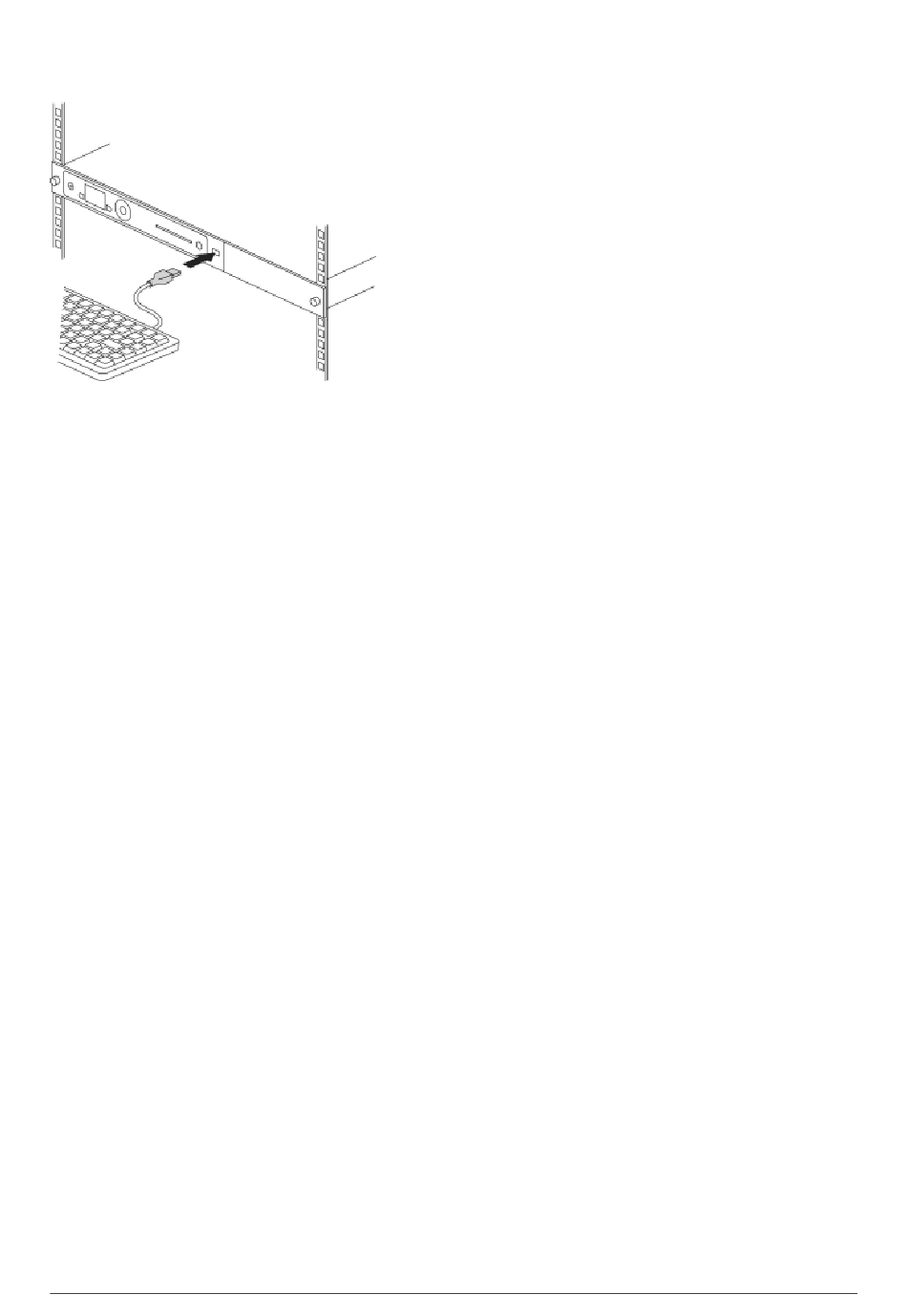

addresses. You connect the keyboard to the USB connector on the front of the nShield
nShield 5c.
6.3.1. Configuring an nShield nShield 5c for your keyboard type
To configure an nShield nShield 5c for your keyboard type, select System > System
configuration > Keyboard layout and then choose the keyboard type you require.
When you have connected a keyboard and configured the nShield nShield 5c for its use,
you can enter numbers and characters directly into the display. See the nShield nShield
5c User Guide for more about using a keyboard and keystroke shortcuts.

6.4. Checking the installation

Ensure that:
• The nShield nShield 5c is safely and securely installed.
• The mains cables and Ethernet cable are securely fitted.
• The nShield nShield 5c powers up successfully when you turn on the power supply at
the rear of the HSM.
