17.11.8 Batteries

WARNING!
It is not possible to charge the batteries of the i-Drive Power system when the i-Drive Power Mains Switch is in
OFF position!
Batteries charge status:
1. While this indicator is flashing, the batteries are critically discharged. (LED1)
2. 50% (LED2)
3. 75% (LED3)
4. 100% - the batteries are charged (LED4)
To charge the batteries:
► Connect the mains cable of the Sprint 200 with i-Drive Power to mains power.
► i-Drive Power system will be charged (with the accumulator discharged, the charging
may take up to 9 hours).
NOTE Charge status values are just informational.
Life of the batteries is reduced when the batteries are allowed to discharge completely.

17.11.9 Fault Signalization

The system is protected against failure states, by stopping and braking the drive system, and respective signalization. The fault
indicator flashing briefly and the accumulator indicator shows the fault state. Some defects are cleared automatically (e.g.: drive
overheating). When drive or electronics is overheated, an short acoustic signal occurs before the drive is blocked.
Error
Drive overheated
Electronics overheated
Internal system error
Closing of the Field-effect
transistor is penetrated
Control circuit overheated
Control circuit error
Activation button stuck
Active button after start

17.11.10 Light Indicators

Indicator
ON Indicator
► Constantly lit
► Flashing
Fault Indicator
► Constantly lit
► Flashing
106
LED1 LED2
OFF OFF
OFF OFF
OFF ON
OFF ON
OFF ON
ON OFF
ON OFF
ON OFF
LED3
OFF
ON
OFF
ON
ON
OFF
OFF
ON
Meaning
Hand is on touch sensor; drive wheel is ready for use.
Hand is not on touch sensor; i-Drive Power is not ready for use.
i-Drive Power cannot be activated.
System is faulty (indicated on the Fault LED).
-or-
i-Drive Power control unit heat protection is activated.
4
3
2
1

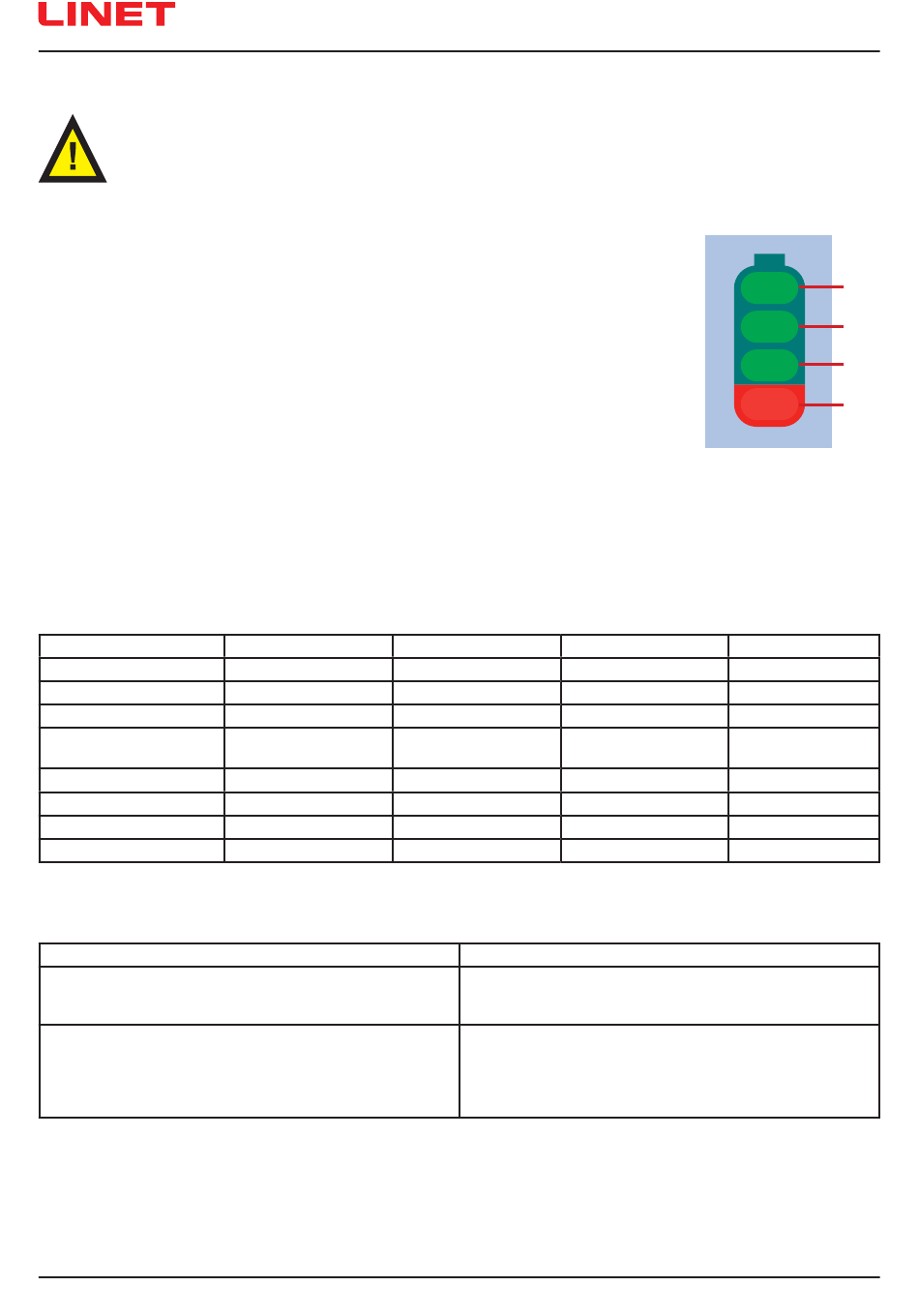

Fig. Accumulator Charge
Status
LED4
ON
OFF
ON
OFF
ON
OFF
ON
ON
