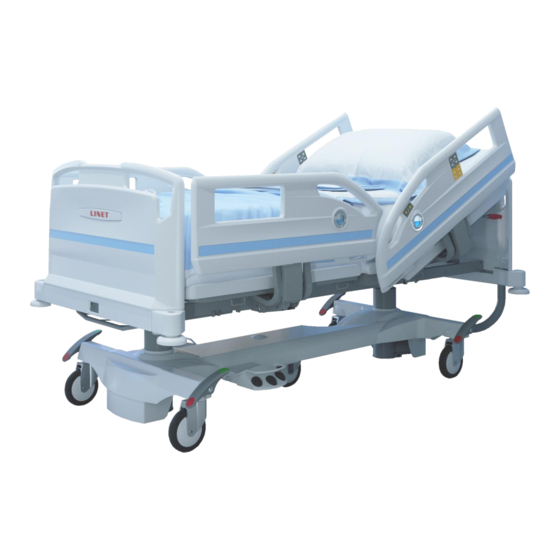

A smart acute bed
Hide thumbs Also See for ELEGANZA 2:
Table of Contents

Advertisement

Quick Links

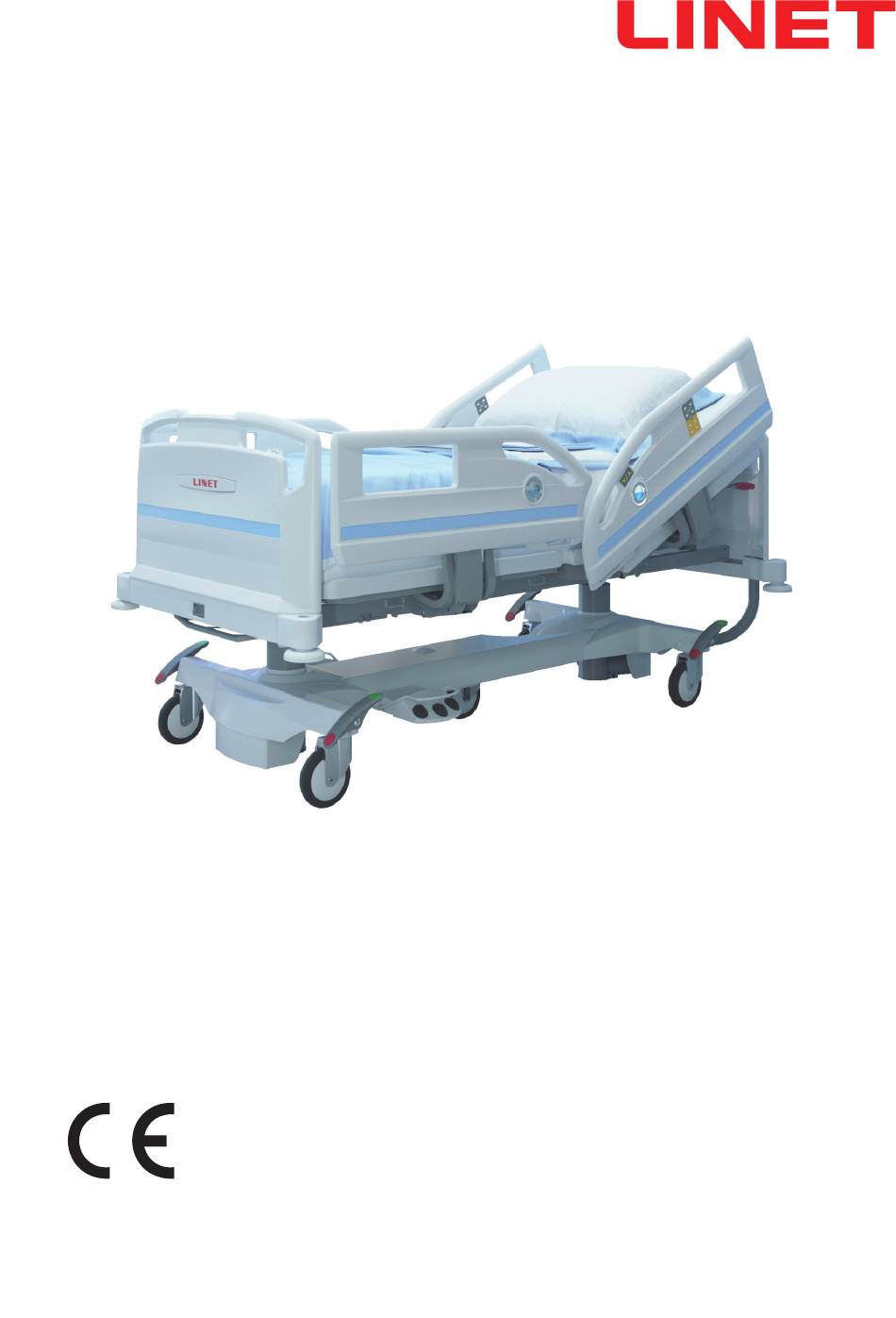

Instructions for Use
and Technical Description
ELEGANZA 2
A smart acute bed
D9U001GRA-0101
Version: 12
Publication Date: 2021-09

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ELEGANZA 2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LINET ELEGANZA 2

Summary of Contents for LINET ELEGANZA 2

  • Page 1 Instructions for Use and Technical Description ELEGANZA 2 A smart acute bed D9U001GRA-0101 Version: 12 Publication Date: 2021-09...
  • Page 2 274 01 Slaný Tel.: +420 312 576 111 Fax: +420 312 522 668 E-mail: info@linet.cz http://www.linet.com Service department: service@linetgroup.com Eleganza 2 A smart acute bed Author: L I N E T, s.r.o. Related links: www.linet.cz D9U001GRA-0101 Version: 12 Publication Date: 2021-09 Copyright ©...

  • Page 3: Table Of Contents

    14.6 X-Ray Backrest (optional) .........62 3.2 Contraindications ............16 14.7 SafeSense® 3 ready bed ..........63 3.3 Operator ..............16 15 Mattress ..............64 4 Intended use (Eleganza 2 with Junior Kit) ....16 16 Accessories ..............64 4.1 User population ............16 16.1 Lifting Pole ..............65 4.2 Contraindications ............16 16.2 Infusion Stands ............66...

  • Page 4: Symbols And Definitions

    22 Standards and Regulations ........83 22.1 AFSSAPS Declaration ..........84 1 Symbols and Definitions 1.1 Warning Notices 1.1.1 Types of Warning Notices Warning notices are differentiated by the type of danger using the following signal words: ► CAUTION - risk of material damage. ► WARNING- risk of physical injury. ► DANGER - risk of fatal injury. 1.1.2 Structure of Warning Notices SIGNAL WORDS! Type and source of danger!

  • Page 5: Symbols On The Package

    1.4 Symbols on the Package FRAGILE, HANDLE WITH CARE THIS WAY UP KEEP DRY (PROTECT FROM HUMIDITY) PAPER RECYCLING SYMBOL DO NOT USE HAND TRUCK HERE DO NOT STACK DURING STORAGE D9U001GRA-0101_12...

  • Page 6: Symbols And Labels On The Bed

    1.5 Symbols and Labels on the Bed READ INSTRUCTIONS FOR USE ATTENTION THERMAL PROTECTION OF TRANSFORMER ONLY SUITABLE FOR INDOOR USE PROTECTION AGAINST ACCIDENTS DUE TO ELECTRICAL CURRENT – TYPE B APPLIED PARTS SAFETY ISOLATING TRANSFORMER, GENERAL CE MARK OF CONFORMITY WITH EU REGULATION JACK FOR ATTACHMENT OF CONDUCTOR FOR POTENTIAL EQUALISATION SAFE WORKING LOAD WARNING AGAINST CRUSHING OR TRAPPING...
  • Page 7 WEIGHT OF BED DO NOT PUT ANY OBJECTS HERE DESIGNATION OF HOSPITAL BED FOR ADULTS EAC MARKING WEEE SYMBOL (RECYCLE AS ELECTRONIC WASTE, DO NOT PUT INTO THE HOUSEHOLD WASTE) MEDICAL DEVICE (COMPATIBLE WITH MEDICAL DEVICE REGULATION) RECYCLING SYMBOL DO NOT POLLUTE THE ENVIRONMENT D9U001GRA-0101_12...

  • Page 8: Serial Label With Udi

    1.6 Serial Label with UDI Serial label of the Eleganza 2 is placed on the right foot end side of the mattress support platform frame. The serial label contains information about Address of Manufacturer, Manufacturing Date (Year-Month-Day), Product Reference Number, Product Serial Number, Global Trade Item Number (GTIN), Unique Device Identification (UDI), symbols, weight specifications and electrical speci- fications.

  • Page 9: Visual Signalisation

    1.9 Visual signalisation 1.9.1 Mains Power LED (Attendant Control Panel) MAINS POWER LED MEANING connected to the mains flashing: 0,6s lit / 0,6s not lit keyboard error (flashing inverted to Lock LED) error (first fault) flashing: 0,1s lit / 0,1s not lit service mode not lit disconnected from the mains power transformer switching error 1.9.2 Accumulator Indicator (Attendant Control Panel) ACCUMULATOR INDICATOR MEANING...

  • Page 10: Illumination

    1.9.4 Illumination The bed is equipped with three-phase illumination: 1. Full intensity of illumination 2. Lowered intensity of illumination 3. Illumination is turned off The lowered intensity of illumination is set up after the bed is turned on. After pressing the GO button: ►...

  • Page 11: Definitions

    1.10 Definitions Basic Bed Configuration  the pricelist model configuration, not including a mattress Bed Weight The value depends on the product configuration, accessories or customer adjustments. Clearance of Undercarriage the height from the floor to the lowest point of the undercarriage between the castors, for the manipulation of accessories under a braked bed in the standard position Duty Cycle...

  • Page 12: Abbreviations

    1.11 Abbreviations AC ( ~ ) Alternating Current Attendant Control Panel European Conformity Cardiopulmonary Resuscitation Sound Intensity Unit DC ( Direct Current Configuration number Electromagnetic Compatibility Field-effect transistor High Frequency High Pressure Laminate Hardware Intensive Care Unit INT. Duty Cycle Ingress Protection Intravenous Light Emitting Diodes...

  • Page 13: Safety Instructions

    2 Safety Instructions WARNING! Eleganza 2 bed should be left in its lowest position when the patient is unattended in order to reduce risk of injury due to falls! WARNING! Siderails of Eleganza 2 should be located in the „up“ position to reduce the risk of the patient accidentally slipping or rolling off the mattress!
  • Page 14 WARNING! An additional multiple socket-outlet or extension cord shall not be connected to the medical electrical system. WARNING! During specific investigations or treatments the significant risks of reciprocal interference posed by medical  electrical equipment may occur. WARNING! Length adjustment of the bed must be proportional to the height of patient! WARNING! Risk of trapping or squeezing because of patient´s body constitution disproportionate to the size of mattress support platform! WARNING! Risk of injury or death due using of incorrect equipment!
  • Page 15 ► It is necessary to read the instructions for use before operating the bed. ► Follow the instructions carefully. ► Use the bed exclusively in its original condition. ► If necessary, check the bed functions daily or at each staff rotation. ►...

  • Page 16: Intended Use (Eleganza 2)

    Patient (based on individual patient status assessment by caregiver the patient can utilize dedicated device functions) 4 Intended use (Eleganza 2 with Junior Kit) The intended use is the hospitalization of the patient in the acute and long-term care units, which includes above all the following aspects: ►...

  • Page 17: Operator

    LINET®’s efforts in research, design and manufacture ensure LINET® products are of the highest quality and fit for their intended purpose. However, LINET® can take no responsibility for any damage to the products or any harm to patients, staff or other indivi- duals resulting from: ■   ...

  • Page 18: Product Description

    6 Product Description 6.1 Eleganza 2 (1GR) – Split Plastic Siderails Fig. Overview Eleganza 2 – Split Plastic Siderails Foot Board Siderail release mechanism with SoftDrop function Mattress platform with removable plastic sections Integrated MobiLift controller in siderails Integrated control panel in siderails...

  • Page 19: Eleganza 2 (1Gr) - Single Collapsible Siderails

    6.2 Eleganza 2 (1GR) – Single Collapsible Siderails Fig. Overview Eleganza 2 – Single Collapsible Siderails Foot Board Siderail release mechanism Single collapsible siderails Mattress platform with mattress Head Board CPR control lever – backrest release Castor 150 mm (Tente Motion with plastic cover)

  • Page 20: Technical Specification

    7 Technical Specification 7.1 Applied parts type B All the accesories the patient can reach are type B applied parts. List of type B applied parts: ■    ACP Attendant Control Panel ■ Handset ■ Satellite controller ■ Siderails ■ Integrated siderail controllers ■...

  • Page 21: Mechanical Specification (Shortened Version)

    7.3  Mechanical Specification (shortened version) Parameter Value External dimensions With split plastic siderails and small bumpers (8,5 cm) 222 cm (212 cm) x 99,5 cm Mattress dimensions 190 cm x 90 cm Maximum Height of Mattress 18 cm (depending on configuration) Siderail length Split plastic head siderail 104,2 cm Split plastic foot siderail 95,5 cm...

  • Page 22: Electrical Specifications (Eleganza 2)

    2x T3.15A L 250 V for 100 V, 110 V, 120 V, 127 V, 110-127 V or 220 V version NOTE Upon request, LINET® can deliver hospital beds with electrical specifications that comply with regional standards (custom voltage, different mains plugs).

  • Page 23: Manufacturer Instructions - Electromagnetic Emissions

    7.6.1 Manufacturer instructions - electromagnetic emissions Emission Test Compliance RF emissions Group 1 CISPR 11 RF emissions Class B CISPR 11 Harmonic emissions Class A IEC 61000-3-2 Voltage fluctuations / flicker emissions Complies IEC 61000-3-3 7.6.2 Manufacturer instructions - electromagnetic susceptibility Immunity Tests Compliance level Electrostatic discharge (ESD)

  • Page 24: Use And Storage Conditions

    Table 1 - IMMUNITY to RF wireless communications equipment Test frequency (MHz) Band (MHz) Service Modulation Immunity Test Level 380 - 390 TETRA 400 Pulse modulation 18 Hz 430 - 470 GMRS 460, FRS 460 FM ± 5 kHz deviation 1 kHz sine 704 - 787 LTE band 13, 17...

  • Page 25: Scope Of Delivery And Bed Variants

    ■ The bed is delivered with deactivated accumulator. To activate accumulator see chapter “Accumulator activation”. 9.2 Bed Variants Features - Eleganza 2 Model 1GR (for model number see serial label): s = standard o = optional ■ Mattress Platform □...

  • Page 26: Putting Into Service

    10 Putting into Service WARNING! Risk of injury when working on the bed! ► Ensure that the bed is disconnected from the mains connection prior to putting into service, putting out of service and maintenance. ► Ensure that the castors are locked prior to putting into service, putting out of service and maintenance. CAUTION! Material damage due to incorrect putting into service! ►...

  • Page 27: Accumulator Activation

    10.1 Accumulator Activation 10.1.1 Placement of Control Section 10.1.2 Removing Isolating Foil PULL 10.1.3 Isolating Foil Check if isolating foil is complete and undamaged as shown: If isolating foil is damaged, contact the manufacturer’s service department immediately. NOTE: It is recommended to wear gloves when removing the isolating foil. D9U001GRA-0101_12...

  • Page 28: Head Board And Foot Board

    10.2 Head Board and Foot Board WARNING! Risk of injury when inserting the head board and foot board! ► To insert head board and foot board into corner posts, hold them by the corner handles on top with both hands. ►...

  • Page 29: Mattress Platform

    10.3 Mattress Platform The mattress platform consists of removable plastic sections. Fig. Correct placement of mattress platform sections Back section / Calf section Loins section / Thigh section Seat section NOTE Sections A and B are replaceable. It is possible to change back section A for calf section A. Same applies for B sections. Section C is not replaceable.

  • Page 30: Potential Equalisation

    10.4 Potential Equalisation The bed is equipped with a standard protective connector. This connector is used for potential equalisation between the bed and any intravascular or intracardiac device connected to the patient to protect the patient from static electric shocks. Fig.

  • Page 31: Transport

    10.6 Transport For safe transport, observe the following: ► Ensure no cables are run over when moving a bed. ► Ensure the mains cable is attached with a hook (at the head end of the bed). ► Ensure the castors are unlocked before moving the bed during the loading/unloading process (see Castor Control and Bed Transport).

  • Page 32: Accumulator

    12 Accumulator CAUTION! Risk of reducing accumulator durability due to incorrect use! ► Use bed on accumulator only in crisis situations (e.g.: power blackout, patient complications during transport, etc.). ► After reconnecting bed to the mains charge accumulator to full capacity (see chart Accumulator charge status). CAUTION! Risk of damage or destruction of accumulator! ►...

  • Page 33: Status Faulty Accumulator

    The LED indicates the accumulator charge status (Attendant Control Panel): Yellow LED Accumulator charge status Not lit Accumulator capacity is sufficient (charging completed) Short flashing (short, intermittent illumination) Accumulator is charging - continue charging until the LED is (circa 1.8 sec.) extinguished.

  • Page 34: Removing The Bed From Service

    12.3 Removing the Bed from Service How to remove the bed from service: ► Disconnect the bed from the mains. ► Disconnect the ground wire. ► Deactivate the accumulator (see Deactivating the Accumulator). ► Remove accessories. To prevent damage during storage: ►...

  • Page 35: Collapsible Siderail (3/4 Siderail)

    13.1.1 Collapsible siderail (3/4 siderail) WARNING! The hospital personnel is responsible for locking the siderails in the highest position when the patient is on the bed or when the bed is transported. WARNING! Ensure that there are no objects or body parts between the bars of siderail when folding the siderail up or down.

  • Page 36: Split Plastic Siderails

    Risk of injury due to patient falling out of bed! ►  Ensure that folded-up siderails are securely anchored. ►  Press against siderails from inside in order to check stability. ►  Hospital personnel are responsible for ensuring siderails are folded-up when the bed is occupied. The split plastic siderails are components of the bed, the siderails cannot be removed. The SoftDrop function enables smooth and quiet folding of the siderails. Fig. Eleganza 2 with split plastic siderails. D9U001GRA-0101_12...
  • Page 37 Fig. Folding down the split plastic siderail. To fold siderails down: ► Push the siderail towards the mattress support platform (1). ► Unlock siderails by pulling the release handle (2). ► The siderail will fold down smoothly due to Soft Drop function (3). NOTE: If pressure is placed on the siderail from inside the bed (by either the mattress or patient) and it is not possible to fold down the siderail, grip the siderail by the upper section and push the siderail towards the middle of the bed and then repeat steps 2 and 3.

  • Page 38: Split Plastic Siderails With Junior Kit

    ►  Do not hang anything on the prop in siderail if the bed is equipped with Junior Kit. Eleganza 2 with Junior Kit is intended for patients with length more than 125 cm. Split plastic siderail with Junior Kit can be recognized according to a prop in the opening of the head siderail. Fig. Eleganza 2 with Junior Kit...

  • Page 39: Castor Control And Bed Transport

    13.2 Castor Control and Bed Transport CAUTION! Material damage due to incorrect transport or involuntary movement! ► Prior to assembly, disassembly and maintenance, ensure the castors are locked. ► Ensure the castors are locked while the bed is occupied and/or not being transported. ►...

  • Page 40: Cpr Backrest Release

    13.3 CPR backrest release WARNING! Risk of injury due to lowering the backrest too quickly! ► Ensure single collapsible siderails are in their lowest position. ► Ensure split plastic siderails are in their highest position. ► Ensure there are no body parts between siderails and backrest. ►...

  • Page 41: Mattress Platform

    13.4 Mattress Platform 13.4.1 Auto-Regression Ergoframe® enlarges the space for pelvic area during Auto-contour. Because of increasement of the space the force applied results in decrease of the pressure that can cause pressure injuries in the pelvic area. Benefits of auto-regression: ■ Prevents decubitus.
  • Page 42 Fig. Mattress Platform Extension Safety Lock 1. Locked 2. Unlocked (it is possible to set up bed extension) Fig. Mattress retainer positions during bed extensions. 0 cm +15 cm + 32 cm To lengthen/shorten the bed: ► Pull out the safety catches 1 at the foot end of both sides of the frame. ►...
  • Page 43 Positions of the mattress retainer: Fig. Mattress retainer in the position without bed extension (default postion) Fig. Mattress retainer in the position with bed extension by 15 cm Fig. Mattress retainer in the position with bed extension by 32 cm D9U001GRA-0101_12...

  • Page 44: Shortened Bed

    Use the bed shortening carefully when a patient is on the bed to avoid risk of crushing, trapping or squeezing. Eleganza 2 medical bed can be delivered in the version with bed shortening. Purpose of this shortened version is to facilitate bed transport. It is recommended to use mattress (with length of 190 cm) with foam extension (with length of 10 cm).

  • Page 45: Control Elements

    13.5 Control Elements The bed is operated by different control elements. Control elements: ► ACP Attendant Control Panel ► Attendant Control Panel with SafeSense® 3 Control ► Handset ► Foot control ► Satellite control panel ► Controls integrated in siderails ►...

  • Page 46: Acp - Attendant Control Panel

    13.5.1 ACP – Attendant Control Panel ACP Attendant Control Panel is main control panel of the bed. Nurse controller can be placed in the shelf. We recommend placing this control panel on the head board or foot board or hold it in the hands while controlling the bed. Fig.
  • Page 47 Activating GO Button The GO button 2 activates the keypads on all control elements except the foot control. A GO button is included on a number of different control elements. The function of the GO button is identical on all control ele- ments.
  • Page 48 Position Buttons WARNING! Risk of injury due to moving parts! ► Ensure that no body parts are trapped between moving parts of bed and mattress platform. ► Ensure that no persons or body parts are close to bed or accessories (e.g. infusion stand, lifting pole) when mattress platform is moving CAUTION! Damage to property due to moving parts!

  • Page 49: Attendant Control Panel With Safesense® 3 Control

    13.5.2 Attendant Control Panel with SafeSense® 3 Control The Attendant Control Panel with SafeSense® 3 Control is a control element for Eleganza 2 medical bed. The Attendant Control Panel with SafeSense® 3 Control indicates Bed Exit Monitoring, Motion Monitoring, Decubitus/Movement Notification and Wetness Monitoring.
  • Page 50 To set positions: ► Activate the keypad by pressing the GO button (1). ► Press and hold corresponding button until required position is reached. Central STOP Button The central STOP button 2 immediately interrupts all bed movements. Pressing central STOP button 2 for at least 0.3 seconds immediately stops all electronic bed movements. Activating GO Button The GO button 1 activates the keypads on all control elements except the foot control.
  • Page 51 Mains Power LED Signalisation (4) MAINS POWER LED MEANING connected to the mains flashing: 0,6s lit / 0,6s not lit keyboard error (flashing inverted to Lock LED) error (first fault) flashing: 0,1s lit / 0,1s not lit service mode not lit disconnected from the mains power transformer switching error Accumulator Charge Status LED Signalisation (6) ACCUMULATOR INDICATOR MEANING accumulator disconnected or faulty...
  • Page 52 Cardiac chair position (13) The cardiac chair position is suitable for patients with cardiac arrhythmia and breathing difficulties. Settings after pressing and holding the Cardiac chair button (13): ► Calfrest tilts into lowest position, thighrest moves into the upright position (34°). ►...
  • Page 53 SafeSense® 3 Display (21) Activation Symbol (selected type (or types) of monitoring is (are) activated) Indicator of communication between Hub and Attendant Control Panel (black arrows - communication works, orange cross over black arrows - communication does not work) Indicator of discharged Hub battery Indicator of activated Motion Monitoring Period during which the absence of patient movement on the bed is tolerated.
  • Page 54 Fig. Bed Exit Alert (monitored patient is not present on the mattress) Fig. Motion Monitoring Alert (expired period during which the absence of patient movement on the mattress was tolerated) Fig. Decubitus/Movement Notification Alert (nursing staff is notified to check position of the patient) D9U001GRA-0101_12...

  • Page 55: Handset

    Unplug handset (if the bed is equipped with Plug and Play). NOTE: The handset can be plugged into another LINET® hospital bed with the Plug and Play slot. NOTE: If the bed is equipped with “Automatic Stop of Backrest at 30°” then this function works on every control element which allows backrest adjustment.

  • Page 56: Satellite Control Panel (Optional)

    13.5.4 Satellite Control Panel (optional) The satellite control panel is an optional control element. The satellite control panel is attached to the backrest with a flexible arm. 1. Activating GO Button 2. Thighrest Adjustment Buttons 3. Backrest Adjustment Buttons 4. Height Adjustment Buttons Fig.

  • Page 57: Foot Control

    13.5.5 Foot Control WARNING! Risk of injury due to moving parts! ► Ensure no body parts are trapped between moving parts of bed and mattress platform. ► Ensure no persons or body parts are close to bed or accessories (e.g. infusion stand, lifting pole) when the mattress platform is moving.

  • Page 58: Control Element Integrated In Siderail (Optional)

    13.5.6 Control Element Integrated in Siderail (optional) It is possible to equip the Eleganza 2 bed with integrated illuminated controllers in the siderails.The optional control element is atta- ched to the siderail. The controllers are positioned on both sides of the bed.

  • Page 59: Equipment

    14 Equipment 14.1 Accessory Rails WARNING! Risk of injuring the personnel, patients or risk of damaging the bed due to incorrect placement of the accessories! ► Always ensure the accessory placed on the accessory rail is not in collision with bed or with patient. ►...

  • Page 60: Redon Bottle Holder

    Fig. Redon bottle holder 14.4 Mobi-Lift® It is possible to equip the Eleganza 2 with integrated Mob-iLift® controllers. Controllers are integrated in both head siderails. Mobi- -Lift® helps the patient with standing up from the bed. Fig. Mobi-Lift® in head siderail When standing up from the bed: ►...

  • Page 61: Angle Indicators

    14.5 Angle indicators It is possible to equip the Eleganza 2 with integrated angle indicators. The angle indicators are integrated in all siderails. The angle indicator in foot siderails is not illuminated and is used for angle measurement when the bed is positioned in the Trendelenburg and Reverse Trendelenburg positions.

  • Page 62: X-Ray Backrest (Optional)

    Fig. Backrest X-ray option Upon request it is possible to equip Eleganza 2 with x-ray translucent backrest which consists of HPL. The bed is equipped with x- -ray cassette holder located under the backrest. This design allows taking x-ray images of the patient’s lungs and upper body parts without moving the patient.

  • Page 63: Safesense® 3 Ready Bed

    Power Supply/Data cable in safety position, holder of the interconnecting elements for Nurse Call cable and LAN cable behind the accessory rail on the right side of the Eleganza 2 bed and holder of the interconnecting elements for Nurse Call cable and LAN cable at head end of the Eleganza 2 bed.

  • Page 64: Mattress

    15 Mattress The manufacturer recommends the use of the following mattress systems on the Eleganza 2 bed: ► EffectaCare 10, EffectaCare 20, PrimaCare 10, PrimaCare 20, CliniCare 10, CliniCare 20, CliniCare 30 16 Accessories WARNING! Risk of injury due to incompatible accessories! ► ...

  • Page 65: Lifting Pole

    Hang the grab handle on the lifting pole. NOTE: The lifting pole is not a part of the delivery and needs to be ordered separately. NOTE: The date of manufacture is marked on the grab handle. LINET® recommends replacing the plastic grab handle every four years.

  • Page 66: Infusion Stands

    16.2 Infusion Stands WARNING! Risk of injury or collision due using of unsuitable accessories! ► Use infusion stands exclusively for accessories listed in the instructions for use. ► Only mount an infusion pump to the lower (wider) telescopic section of an infusion stand above the head board / foot board.

  • Page 67: Oxygen Bottle Holder

    16.4 Oxygen Bottle Holder WARNING! Risk of injury by the oxygen bottle holder or due to incorrect use or due to careless transport! ► Ensure the oxygen bottle holder is correctly fitted in the correct position. ► Be aware of persons or objects in close proximity when moving or manipulating the bed equipped with oxygen bottle holder.

  • Page 68: Head Board And Foot Board Holder

    16.6 Head Board and Foot Board Holder Head Board and Foot Board Holder is designed for hanging deferred head board or foot board to the holder. Placement: ■ On the upper edge of the head board or foot board Fig. Head Board and Foot Board Holder 16.7 Name holder Name holder is designed for placing patient’s name in the holder.

  • Page 69: Handset Holder

    16.9 Handset Holder WARNING! Risk of injuring the patient or damaging the bed due to incorrect placement! ► Never place handset holder on the skewed edge of head board and foot board. ► Never place handset holder to the handles near the Mobilift controller. ►...

  • Page 70: Compressor Holder

    16.11 Compressor Holder Compressor holder is designed for handing compressor on the foot board. Placement: ■ On the foot board, between foot board handles Load capacity: ■ Maximum load of the holder is 10 kg. Fig. Compressor holder 16.12 Towel holder Towel holder is designed for hanging the towel on the holder.

  • Page 71: Soft Guards For Siderails

    16.14 Soft Guards for Siderails WARNING! Risk of damaging the guards due to incorrect use! ► Always take down the guards before transporting the bed. ► Always remove the foam insert from the guards before washing. ► Ensure the transparent nets are bears on the control elements of the bed. There is a risk of damaging the guards in case of their replacement.
  • Page 72 Fig. Closed Protector® Fig. Opened Protector® Releasing button Tube of Protector® Bushing of Protector® Fig. Safety pin anchored in bushing Mount Protector® to closed position as follows: ► Insert the tube of protector (2) into bushing near foot end of the bed (3) so the protector is facing the siderail. ►...

  • Page 73: Siderail Extension - „Extender®" (Sr55)

    16.16 Siderail extension – „Extender®“ (SR55) WARNING! Risk of injury or collision due to incorrect use! ► The Extender® can be used with single collapsible siderails only. The manufacturer will not be held responsible for any consequences if the Extender® is used with other types of siderails. ►...

  • Page 74: Safesense

    16.17 SafeSense Purpose: SafeSense system is intended for informing nursing staff as soon as the resident/patient leaves the bed or does not return to the bed when expected. Description: SafeSense system consists of Sensor mat, Bed-Exit Box, Plug and Play adapter and connecting cables. Placement: Bed-Exit Box and Plug and Play adapter are located on accessory rail on the right side of the bed.

  • Page 75: Safesense® 3

    Placement: Hub Box must be safely placed on the accessory rail on the right side of the Eleganza 2 bed. Air Pad must be fixed on the Backrest of the Eleganza 2 bed and under the compatible mattress. Wetness Pad must be placed on the seat section of the compatible mattress and Air Hose and each cable must be safely installed according to the Instructions for use for SafeSense®...

  • Page 76: Cleaning/Disinfection

    17 Cleaning/Disinfection WARNING! Risk of injury when working on the bed! ► Prior to assembly, disassembly, cleaning and maintenance, ensure that all adjustment functions are locked. ► Ensure the bed is disconnected from the mains during cleaning process. ► Pay extra attention when cleaning any movable or controlling mechanisms of the bed to prevent involuntary activation, entrapping or crushing.

  • Page 77: Safety Instructions For Cleaning And Disinfection Of The Bed

    17.1 Safety Instructions for Cleaning and Disinfection of the Bed Preparation for cleaning: ► Drive the bed on a place where the cleaning process will be performed and then brake the bed. ► Position the mattress platform to its highest positions and also position the backrest and thighrest parts so the back side of those parts are accessible for cleaning.

  • Page 78: Mode Of Cleaning And Disinfection

    17.3 Mode of Cleaning and Disinfection Part of bed – Eleganza 2 Daily C&D Changing patient C&D Complete C&D Stickers (Split plastic siderails)    Stickers (Single collapsible    siderails) Siderails mechanism    Head board and foot board ...

  • Page 79: Steam Cleaning

    Observe the instructions from instructions for use of the bed before, during and after each steam cleaning! ► The bed could be damaged and LINET withdraws from warranty of the bed if these instructions are not followed. ► Disconnect bed from the mains before each steam cleaning.

  • Page 80: Troubleshooting

    18 Troubleshooting DANGER! Danger to life due to electric shock! ► If a fault occurs ensure the electric motor, power box and other electrical parts checked by qualified personnel only. ► Do not open protective covers of the electric motor or power box. Error/Fault Cause Solution...

  • Page 81: Maintenance

    Ensure that maintenance is performed exclusively by manufacturer´s customer service or by authorised service personnel certified by the manufacturer. ► If the defect cannot be repaired, do not use the bed. LINET ® recommends attaching the maintenance plaque to the bed. 19.1 Regular maintenance ► Check regularly movable parts for wear.

  • Page 82: Disposal

    Based on the Directive No. 2002/96/ EC (Directive WEEE - Waste, Electric and Electronic Equipments) the company LINET, s. r. o. is registered in the List of Electric and Electronic Equipment Producers (Seznam výrobců elektrozařízení) on the Ministry of the Environment of the Czech Republic...

  • Page 83: Warranty

    21 Warranty LINET ® will only be held responsible for the safety and reliability of products that are regularly serviced, maintained and used in accordance with the safety guidelines. Should a serious defect arise that cannot be repaired during maintenance: ►...
  • Page 84 22.1 AFSSAPS Declaration D9U001GRA-0101_12...
