QUICK REFERENCE GUIDE

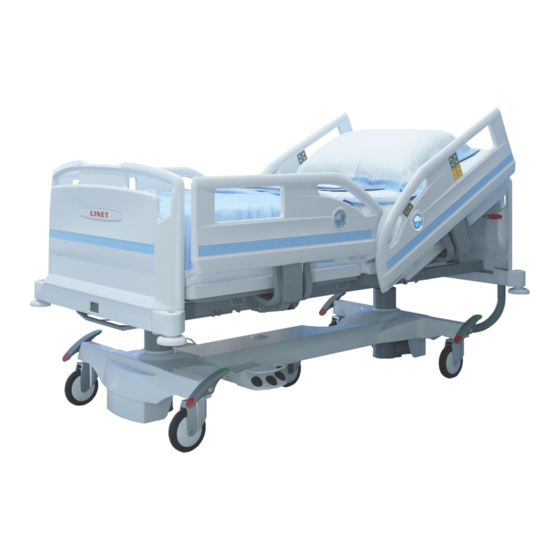

ELEGANZA 2
Hospital bed for acute care

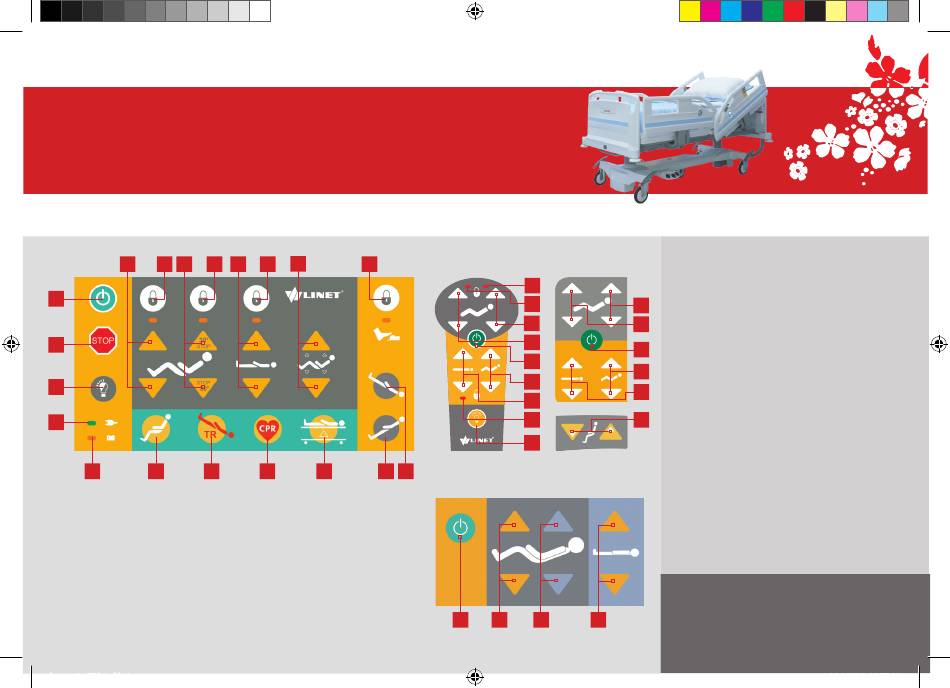

SUPERVISOR CONTROL PANEL

3
4
5
6
2
1
19
18
17
16
15
1.
Central STOP
2.
Activating GO
3.
Thigh rest adjustment
4.
Thigh rest lock
5.
Backrest adjustment
6.
Backrest lock
7.
Height adjustment
8.
Height adjustment lock
9.
Auto-Contour adjustment
10.
Foot Control lock
eleganza2_GBL.indd 1
7
8
9
10
14
13
12
11
11.
Trendelenburg position
12.
Reverse Trendelenburg position
13.
Examination position
14.
CPR (Resuscitation)
15.
Emergency Trendelenburg position
16.
Cardiac chair position
17.
Battery charge status indicator
18.
Mains power indicator
19.
Bed Lights control
20.
Flashlight
SIDE RAIL
6
4
5
3
2
9
7
8
20
Satellite panel
2
3
5
7
FUNCTION LOCK

DISABLING FUNCTIONS

1. Activate the keypad (on supervisor control
5
panel) by pressing the GO button
3
2. Press the respective function lock button
2
(4, 6, 8 or 10)
9
Respective lock indicator light is illuminated
and function is locked.
7
7

ENABLING FUNCTIONS

1. Activate the keypad (on supervisor control
panel) by pressing the GO button
2. Press the respective lock button
or 10)
Respective lock indicator light is no longer
illuminated and function is unlocked.
LINET UK, LINET House 17 Murrills Estate,
Portchester, Hampshire, PO16 9RD
Tel.: 0844 248 1833, Fax: 0844 499 4409
e-mail: info @ linet.uk.com, www.linet.uk.com
(2)
(2)
(4, 6, 8
