Page 1 450iQ Instruction Manual Hydrogen Sulfide and Sulfur Dioxide Analyzer 119017-00 • 1Apr2022...
Page 3: Table Of Contents
Contents Chapter 1 Introduction ......................1-1 iQ Series Instrument Platform............. 1-1 450iQ Principle of Operation ............. 1-3 Specifications ..................1-5 Dimensions ..................1-7 Installation and Setup ..................2-1 Chapter 2 Unpacking and Inspection ..............2-1 Cover Removing and Replacing ............2-2 Mounting Options ................
Page 4 USB Drive ................... 3-121 Firmware Update Via USB Drive ..........3-122 Download Data To USB Drive ..........3-126 Change USB Password .............. 3-129 Reset USB Password ..............3-131 User Contact Information ............3-132 Update Bootloader ............... 3-133 450iQ Instruction Manual Thermo Scientific...
Page 5 Safety Precautions ................5-1 Fan Filter Inspection and Cleaning ............. 5-1 Pump Rebuilding ................5-2 Leak Test .................... 5-5 Lamp Voltage Check ................5-6 Lamp Voltage Adjustment ..............5-6 Chapter 6 Troubleshooting ....................6-1 Safety Precautions ................6-1 Thermo Scientific 450iQ Instruction Manual...
Page 6 Optional Permeation Oven Board Replacement ........ 7-55 Chapter 8 System Description ................... 8-1 Optical Bench DMC................8-2 Heated Hydrocarbon Kicker ............8-2 Optical Bench Hardware ..............8-2 Condensing Lens ................8-2 Mirror Assembly ................8-2 Light Baffle ................... 8-2 450iQ Instruction Manual Thermo Scientific...
Page 7 Valve Driver Outputs ..............9-15 Internal Zero/Span and Sample Valves ..........9-17 Scrubber ..................9-17 Internal Permeation Span Source ............9-17 Permeation Tube Installation ............9-19 Computation of Concentrations ............ 9-22 PTFE Particulate Filter ..............9-23 Thermo Scientific 450iQ Instruction Manual...
Page 8 WEEE Symbol ................. A-4 Appendix B Quick Reference ....................B-1 List of Figures ..................B-1 List of Tables..................B-3 Appendix C GNU Lesser General Public License ............C-1 GNU Lesser General Public License ........... C-1 viii 450iQ Instruction Manual Thermo Scientific...
Page 9: Introduction
Chapter 1 Introduction The Thermo Scientific™ 450iQ Hydrogen Sulfide and Sulfur Dioxide Analyzer utilizes pulsed fluorescence technology. The 450iQ analyzer operates on the principle that H S can be converted to . As the SO molecules absorb ultraviolet (UV) light and become excited at one wavelength, the molecules then decay to a lower energy state emitting UV light at a different wavelength.

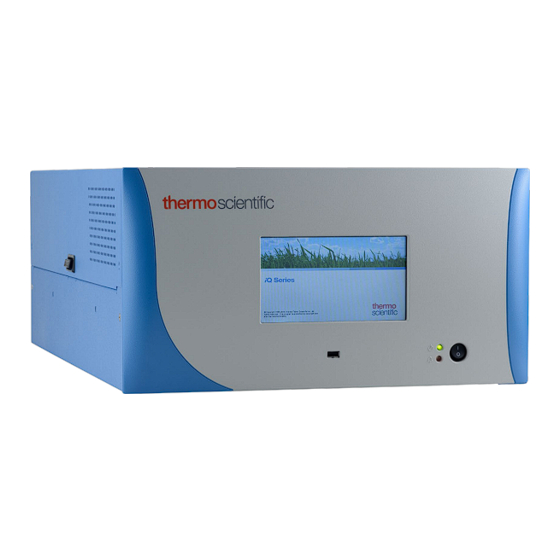

Page 10: Figure 1-1. 450Iq Front
PC. The ePort control mirrors the same GUI look and feel as the instrument touchscreen providing a speedy and familiar operational experience. Figure 1–1. 450iQ Front 450iQ Instruction Manual Thermo Scientific...
Page 11: 450Iq Principle Of Operation
Specifically, S → SO +hv1 → SO * → SO The sample is drawn into the 450iQ through the SAMPLE bulkhead, as shown in Figure 1–2. From the bulkhead the sample is either shunted to a converter or bypasses the converter and is led straight through to a hydrocarbon kicker.
Page 12: Figure 1-2. 450Iq Flow Schematic
Introduction 450iQ Principle of Operation Figure 1–2. 450iQ Flow Schematic Figure 1–3. 450iQ Flow Schematic with Zero Span 450iQ Instruction Manual Thermo Scientific...
Page 13: Specifications
Introduction Specifications Specifications Table 1–1 lists the specifications for the 450iQ. Table 1–1. 450iQ Specifications Range 0−10 ppm 0−25 mg/m Extended Ranges 0−100 ppm 0−250 mg/m Zero Noise Manual Mode Automatic Mode or CS) or H 1.0 ppb RMS 3.0 ppb RMS (10 second averaging time) 0.5 ppb RMS...
Page 14: Table 1-2. 450Iq Optional Permeation Oven Specifications
Accepts permeation tubes up to 9 cm in total length; 1 cm in diameter Physical Dimensions Contained inside the 450iQ Power Requirements 24 VDC, 50 watts (in addition to the standard 450iQ) Weight Approximately five pounds (in addition to standard 450iQ) 450iQ Instruction Manual Thermo Scientific...
Page 15: Dimensions
Introduction Dimensions Dimensions Figure 1–4. Bench Mount Assembly (dimensions in inches [mm]) Thermo Scientific 450iQ Instruction Manual...
Page 16: Figure 1-5. Rack Mount Assembly (Dimensions In Inches [Mm])
Introduction Dimensions Figure 1–5. Rack Mount Assembly (dimensions in inches [mm]) 450iQ Instruction Manual Thermo Scientific...
Page 17: Figure 1-6. Rack Mount Requirements
Introduction Dimensions Figure 1–6. Rack Mount Requirements Figure 1–7. Rack Requirements Part 2 Thermo Scientific 450iQ Instruction Manual...
Page 19: Installation And Setup
Equipment Damage Do not attempt to lift the instrument by the cover or other external fittings. Unpacking and The 450iQ is shipped complete in one container. If there is obvious damage to the shipping container when you receive the instrument, notify Inspection the carrier immediately and hold for inspection.
Page 20: Cover Removing And Replacing
2. Press in both latches located on top cover and hold while pulling up to remove. Set upright. Figure 2–1. Removing the Cover 3. To replace, align cover and drop in. Latches will automatically snap in place. 450iQ Instruction Manual Thermo Scientific...
Page 21: Mounting Options
Rack Mount Bench Mount Positioned on bench, includes installing feet. See Figure 2–2. Equipment required: Slot drive, 5/16-inch 1. Fasten feet in position 1 or 2 to fit to the desired depth. Figure 2–2. Installing Feet Thermo Scientific 450iQ Instruction Manual...
Page 22: Rack Mount
3. Slide ears outwards. 4. Use the same four 8-32 pan head screws to secure it. 5. Install the handles with the four 8-32 flat head screws that came with the handle kit on the backside as shown. 450iQ Instruction Manual Thermo Scientific...
Page 23: Figure 2-4. Installing Ears And Handles
Installation and Setup Mounting Options Figure 2–4. Installing Ears and Handles Thermo Scientific 450iQ Instruction Manual...
Page 24: Setup Procedure
4. Connect a suitable recording device to the rear panel connector. For detailed information about connecting to the instrument, refer to: “Connecting External Devices” on page Communications > “Analog I/O” on page 3-94, and “Digital I/O” on page 3-95. 450iQ Instruction Manual Thermo Scientific...
Page 25: Figure 2-5. 450Iq Rear Panel
Chapter 9, “Optional Equipment” for setup instructions. Icon Here The 450iQ is supplied with a three-wire grounding cord. Under no circumstances should this grounding system be defeated. Figure 2–5. 450iQ Rear Panel Figure 2–6. Atmospheric Dump Bypass Plumbing Thermo Scientific...
Page 26: Startup
For more information about instrument parameters, see the “Operation” chapter. 4. Before beginning the actual monitoring, perform a calibration as described in the “Calibration” chapter. Figure 2–7. Front Panel and Touchscreen Display 450iQ Instruction Manual Thermo Scientific...
Page 27: Chapter 3 Operation
H S concentration. In actuality, the instrument is locked in CS only mode, so all of the screens for ranges, calibration, datalogging, and remote I/O will show CS instead of H 450iQ Instruction Manual 3-1 Thermo Scientific...
Page 28 Operation Instrument Display Home Screen (dual or auto range mode) Title Bar User Interface Status Bar 450iQ Instruction Manual Thermo Scientific...
Page 29 The user will be directed to the favorites screen where the user chooses the button position. To remove a favorite button from the favorites screen, press and hold button for 2 seconds. Clock: Displays current date and time. Thermo Scientific 450iQ Instruction Manual...
Page 30 Operation Instrument Display Thermo Scientific Information button: Shows contact information. 450iQ Instruction Manual Thermo Scientific...
Page 31: Main Menus And Keypads
Display Setup • Language • Reboot Instrument • Configuration Security Access Levels USB Drive • Firmware Update Via USB Drive Download Data to USB Drive • Change USB Password User Contact Information • Update Bootloader Thermo Scientific 450iQ Instruction Manual...
Page 32: Numeric Keypad
Enter a new value using the keypad, and then select the Enter button to set the new value or press the Cancel button to exit the keypad screen and return to the previous screen without saving the value. 450iQ Instruction Manual Thermo Scientific...
Page 33: Alphanumeric Keypad
Cancel button to exit the keypad screen and return to the previous screen without saving the value. The alphanumeric keypad is only available when the user needs to enter alphabet characters. Thermo Scientific 450iQ Instruction Manual...
Page 34 Operation Instrument Display 450iQ Instruction Manual Thermo Scientific...
Page 35: Calibration
Calibrate Span Coefficients: Sets the SO S, and CS span coefficients. Zero/Span Schedule: Programs the instrument to perform fully automated zero and span checks or adjustments. Advanced Calibration: Calibrates the instrument using manual zero/span calibration and provides calibration history. Thermo Scientific 450iQ Instruction Manual...
Page 36: Calibrate Background
SO and H Background Home Screen>Calibration>Calibrate Background The Calibrate Backgrounds screen contains the following information: Calibrate SO Background: Sets the SO background to zero. Calibrate CS Background: Sets the CS background to zero. 3-10 450iQ Instruction Manual Thermo Scientific...
Page 37: Calibrate So 2 And Cs Background
Current SO Concentration: Read only. Displays what the current SO concentration is. Current SO Background: Read only. Displays what the current user-set background is. 3-11 Thermo Scientific 450iQ Instruction Manual...
Page 38 CS background is. Calculated CS Background: Read only. Displays what the user-set CS background will become when the calibrate button is pressed. Calibrate: When pressed, updates the background value, making the concentration go to zero. 3-12 450iQ Instruction Manual Thermo Scientific...
Page 39: Calibrate Span Coefficients
300-second averaging. Home Screen>Calibration>Calibrate Span Coefficients (single range mode) Home Screen>Calibration>Calibrate Span Coefficients (dual or auto range mode) 3-13 Thermo Scientific 450iQ Instruction Manual...
Page 40 Calibrate High Range CS Span Coefficient: Sets the high range CS span coefficient when in dual or auto range mode. Calibrate Low Range CS Span Coefficient: Sets the low range CS span coefficient when in dual or auto range mode. 3-14 450iQ Instruction Manual Thermo Scientific...
Page 41: Calibrate So 2 , H
To achieve maximum precision, allow the instrument to stabilize each time input gas is changed and set the averaging time to 300-second averaging. Home Screen>Calibration>Calibrate Span Coefficient (single range mode) 3-15 Thermo Scientific 450iQ Instruction Manual...
Page 42 Concentration” value is entered, the new calculated SO span coefficient is displayed. Calculated High Range SO Span Coefficient: Read only. After the “Edit Span Concentration” value is entered, the new calculated high range span coefficient is displayed. 3-16 450iQ Instruction Manual Thermo Scientific...
Page 43 Span Coefficient: Read only. After the “Edit Span Concentration” value is entered, the new calculated low range span coefficient is displayed. Calibrate: When pressed, updates the coefficient and the concentration should match the span concentration. 3-17 Thermo Scientific 450iQ Instruction Manual...
Page 44: Zero/Span Schedule
Zero Duration: Sets how long zero air is sampled by the instrument. Span Duration: Sets how long span gas is sampled by the instrument. Purge Duration: Sets how long the purge period will be at the end of the schedule. 3-18 450iQ Instruction Manual Thermo Scientific...
Page 45 1:1. (This means that each time the schedule is run, both the zero duration and span duration occurs.) The zero/span ratio is allowable between 1 to 99. If 99 is chosen, the schedule should only perform the Span on the 99th iteration. 3-19 Thermo Scientific 450iQ Instruction Manual...
Page 46: Advanced Calibration
Home Screen>Calibration>Advanced Calibration The Advanced screen contains the following information: Manual Calibration: The user manually calibrates the background or span coefficient. Calibration History: Lists all calibrations performed and calibration checks. 3-20 450iQ Instruction Manual Thermo Scientific...
Page 47: Manual Calibration
Adjust Backgrounds: Allows the user to manually adjust the zero backgrounds. Adjust Span Coefficients: Allows the user to manually adjust the span coefficients. Reset Bkgs to 0.000 and Span Coef to 1.000: Resets all backgrounds and coefficients. 3-21 Thermo Scientific 450iQ Instruction Manual...
Page 48 CS zero background. Home Screen>Calibration>Advanced Calibration>Manual Calibration>Adjust Backgrounds The Adjust Backgrounds screen contains the following information: Adjust SO Background: User manually adjusts zero SO background. Adjust CS Background: User manually adjusts zero CS background. 3-22 450iQ Instruction Manual Thermo Scientific...
Page 49 CS Background screens contains the following information: Adjust SO Background: User manually adjusts zero SO background. Adjusted SO Concentration: Read only. Displays what the SO concentration value will become when the calibrate button is pressed. 3-23 Thermo Scientific 450iQ Instruction Manual...
Page 50 Adjusted CS Concentration: Read only. Displays what the CS concentration value will become when the calibrate button is pressed. Current CS Concentration: Read only. Displays the current CS concentration. Calibrate: When pressed, updates the background. 3-24 450iQ Instruction Manual Thermo Scientific...
Page 51 The Adjust Span Coefficients screen contains the following information: Calibrate SO Coefficient: Adjusts the SO coefficient when in single range mode. Calibrate SO High Range Coefficient: Adjusts the SO high range coefficient when in dual or auto range mode. 3-25 Thermo Scientific 450iQ Instruction Manual...
Page 52 Calibrate CS High Range Coefficient: Adjusts the CS high range coefficient when in dual or auto range mode. Calibrate CS Low Range Coefficient: Adjusts the CS low range coefficient when in dual or auto range mode. 3-26 450iQ Instruction Manual Thermo Scientific...
Page 53 To achieve maximum precision, allow the instrument to stabilize each time input gas is changed and set the averaging time to 300-second averaging. Home Screen>Calibration>Advanced Calibration>Manual Calibration>Adjust Span Coefficients>Adjust SO Span Coefficient (single range mode) 3-27 Thermo Scientific 450iQ Instruction Manual...
Page 54 Adjusted Low Range SO Concentration: Read only. Shows current low range SO concentration when in dual or auto range mode. Calibrate: Calibrates span coefficient by saving the newly adjusted span coefficient. 3-28 450iQ Instruction Manual Thermo Scientific...
Page 55: Calibration History
Time Stamp: Time of calibration or calibration check. Event: Lists the type of calibration event. Result: Concentration result. Target: Concentration setpoint value. Units: Displays units for each item. Average Time: Averaging time used during the calibration or calibration check. 3-29 Thermo Scientific 450iQ Instruction Manual...
Page 56: Data
View Data Log (User Defined Time): User selects the start and end time for viewing the data. Table shows most recent data on top. Advanced Data Setup: Allows the user to set up the parameters of how the data is stored. 3-30 450iQ Instruction Manual Thermo Scientific...
Page 57: View Data Log (Last Hour)
The View Data Log (Last Hour) screen contains the following options: Graph: Displays data graph for the column selected. The graph time axis is defined by the data set in the table. 3-31 Thermo Scientific 450iQ Instruction Manual...
Page 58: View Data Log (Last 24 Hours)
Retrieving user log data, it may take a few seconds... The View Data Log (Last 24 Hours) screen contains the following options: Graph: Displays data graph for the column selected. The graph time axis is defined by the data set in the table. 3-32 450iQ Instruction Manual Thermo Scientific...
Page 59: View Data Log (User Defined Time)
Date: Sets date of data logging start time. Time: Sets time of data logging start time. Save Data Logging Start Time: Pressing this button saves the start time and follows directly to the end time selection for the data logging screen. 3-33 Thermo Scientific 450iQ Instruction Manual...
Page 60 Time button saves the end time and follows directly to the data logging table. Note End time should not be greater than 1 year from start time . Note The datalogging table is limited to 10,000 points. 3-34 450iQ Instruction Manual Thermo Scientific...
Page 61: Advanced Data Setup
The Advanced Data Setup screen contains the following information: Data Logging Setup: User selects the parameters for collecting logged data. Streaming Data Setup: User selects the parameters for streaming data to a computer in real time. 3-35 Thermo Scientific 450iQ Instruction Manual...
Page 62: Data Logging Setup
When set to minimum or maximum, the minimum or maximum value during the period will be recorded. Erase Data Log Records: Allows the user to erase all values in the data log and updates the data logging table. 3-36 450iQ Instruction Manual Thermo Scientific...
Page 63: Select Data Logging Variables
Next, press the Commit Changes button to save selections. Yellow buttons indicate that the variable is selected. More than one can be chosen. Home Screen>Data>Advanced>Data Logging Setup>Select Data Logging Variables 3-37 Thermo Scientific 450iQ Instruction Manual...
Page 64: Streaming Data Setup
Period: Sets the time between streamed data. Show Labels: Toggles on/off. When on, shows variable labels to the left of the variable values. Show Timestamp: Toggles on/off. When on, shows timestamp at the beginning of each row of data. 3-38 450iQ Instruction Manual Thermo Scientific...
Page 65: Select Streaming Variables
Next, press the Commit Changes button to save selections. Yellow buttons indicate that the variable is selected. More than one can be chosen. Home Screen>Data>Advanced>Streaming Data Setup>Select Streaming Variables 3-39 Thermo Scientific 450iQ Instruction Manual...
Page 66: Settings
USB Drive: User can update instrument firmware, download data, and change USB password. User Contact Information: User sets up their contact information. Update Bootloader: Used to update bootloader when an update to the bootloader is available. 3-40 450iQ Instruction Manual Thermo Scientific...
Page 67: Health Check
The iQ360 feature is a paid subscription enabling or disabling the instrument to send automated emails to technical support when an alarm or alert is triggered. Firmware Version: Shows the instrument’s firmware version. 3-41 Thermo Scientific 450iQ Instruction Manual...
Page 68: Status And Alarms
Bench: Displays bench module alarms and faults. S: Displays converter module alarms and faults. Perm Oven: Displays (optional) perm oven module alarms and faults. Flow and Pressure: Displays flow and pressure alarms and faults. 3-42 450iQ Instruction Manual Thermo Scientific...
Page 69 Valve and Pump Resets: User can reset valve and pump power. Analog I/O: Displays analog input/output alarms and faults. Digital I/O: Displays digital input/output alarms and faults. Serial Numbers: Displays all the serial numbers for the instrument. 3-43 Thermo Scientific 450iQ Instruction Manual...
Page 70 High Alarm: Displays high alarm for each item. Span Conc: Span concentration used in the span calibration or span check. Units: Displays units for each item. Down: : SO concentration. S: H S concentration. CS: CS concentration. 3-44 450iQ Instruction Manual Thermo Scientific...
Page 71 High alarm shows user defined limit for acceptable span check offset (compared to the span concentration value). Span concentration shows span setpoint. Note If both the low alarm and high alarms are set to zero, then no alarm will show. 3-45 Thermo Scientific 450iQ Instruction Manual...
Page 72 Lamp Voltage: Displays the current lamp voltage. User can adjust low and high alarm limits. PMT Voltage: Displays the current PMT supply voltage. PMT Voltage Too Low: Displays OK/Fail for PMT voltage too low. 3-46 450iQ Instruction Manual Thermo Scientific...
Page 73 5V Diagnostic: Displays current voltage readings. Alarm limits are not changeable. 15V Diagnostic: Displays current voltage readings. Alarm limits are not changeable. 24V Diagnostic: Displays current voltage readings. Alarm limits are not changeable. 3-47 Thermo Scientific 450iQ Instruction Manual...
Page 74 S Temperature: Displays the current converter temperature. User can adjust low and high alarm limits. Thermocouple Open: Displays OK/Fail for thermocouple status. Thermocouple Short: Displays OK/Fail for thermocouple status. Board Communication: Displays OK/Fail for board communication status. 3-48 450iQ Instruction Manual Thermo Scientific...
Page 75 3 V Diagnostics: Displays current voltage readings. Alarm limits are not changeable. 3.3 V Diagnostics: Displays current voltage readings. Alarm limits are not changeable. 5 V Diagnostics: Displays current voltage readings. Alarm limits are not changeable. 3-49 Thermo Scientific 450iQ Instruction Manual...
Page 76 Power Supply: Displays OK/Fail of power supplies. Power supply goes red if any voltages are outside their limits. No voltage rows ever get highlighted. 2.5 V Diagnostics: Displays current voltage readings. Alarm limits are not changeable. 3-50 450iQ Instruction Manual Thermo Scientific...
Page 77 3.3 V Diagnostics: Displays current voltage readings. Alarm limits are not changeable. 5 V Diagnostics: Displays current voltage readings. Alarm limits are not changeable. Heater Power Diagnostics: Displays current heater voltage readings. Alarm limits are not changeable. 3-51 Thermo Scientific 450iQ Instruction Manual...
Page 78 Bench Pressure: Displays the current bench pressure reading. User can adjust low and high alarm limits. Pump Pressure: Displays the current pump pressure reading. Instrument Temperature: Displays the current instrument temperature reading. User can adjust low and high alarm limits. 3-52 450iQ Instruction Manual Thermo Scientific...
Page 79 3.3V Diagnostic: Displays current voltage readings. Alarm limits are not changeable. 5.0V Diagnostic: Displays current voltage readings. Alarm limits are not changeable. 24V Diagnostic: Displays current voltage readings. Alarm limits are not changeable. 3-53 Thermo Scientific 450iQ Instruction Manual...
Page 80 Zero Valve: Displays whether or not the zero valve is activated. Span Valve: Displays whether or not the span valve is activated. /CS Mode Valve: Displays whether or not the SO /CS mode valve is activated. 3-54 450iQ Instruction Manual Thermo Scientific...
Page 81 24V Step Board 1: Displays current voltage readings. Alarm limits are not changeable. 5.0V Step Board 2: Displays current voltage readings. Alarm limits are not changeable. 24V Step Board 2: Displays current voltage readings. Alarm limits are not changeable. 3-55 Thermo Scientific 450iQ Instruction Manual...
Page 82: Valve And Pump Resets
Sample Valve Reset: Resets sample valve. Zero Valve Reset: Resets zero valve. Span Valve Reset: Resets span valve. /CS Valve Reset: Resets SO /CS valve. Pump Reset: Resets pump. Perm Oven Valve Reset: Resets perm oven valve. 3-56 450iQ Instruction Manual Thermo Scientific...
Page 83 Current Output Channel 1–6: Displays real-time current output for each channel. Chip Temperatures: Displays OK/Fail for chip temperatures. Chip 1–3 Communication: Displays OK/Fail for each chip communication. Test Mode: Displays test mode on or off. 3-57 Thermo Scientific 450iQ Instruction Manual...
Page 84 5.0V Ref Diagnostic: Displays current voltage readings. Alarm limits are not changeable. 15V Diagnostic: Displays current voltage readings. Alarm limits are not changeable. -15V Diagnostic: Displays current voltage readings. Alarm limits are not changeable. 3-58 450iQ Instruction Manual Thermo Scientific...
Page 85 External Alarm 1–3: Displays OK/Fail for external alarms. Relay Test Mode: Displays relay test mode on or off. Solenoid Test Mode: Displays solenoid test mode on or off. Board Communication: Displays OK/Fail for communication status. 3-59 Thermo Scientific 450iQ Instruction Manual...
Page 86 3.3V Diagnostic: Displays current voltage readings. Alarm limits are not changeable. 5.0V Diagnostic: Displays current voltage readings. Alarm limits are not changeable. 24V Diagnostic: Displays current voltage readings. Alarm limits are not changeable. 3-60 450iQ Instruction Manual Thermo Scientific...
Page 87 S converter serial number. Perm Oven: Optional perm oven serial number. Flow and Pressure: Flow and pressure serial number. Peripherals Support: Peripherals support serial number. Analog I/O: Analog I/O serial number. Digital I/O: Digital I/O serial number. 3-61 Thermo Scientific 450iQ Instruction Manual...
Page 88: Predictive Diagnostics
This symbol denotes there is an active maintenance related warning in the module. Home Screen>Settings>Health Check>Predictive Diagnostics The Predictive Diagnostics screen contains the following information: Sample Pump Capillary Flow Path Sample Valve Zero Valve Span Valve S Converter Core 3-62 450iQ Instruction Manual Thermo Scientific...
Page 89: Maintenance
Preventive Maintenance: Shows suggested service interval and time left for component replacement. Change Part: User logs component fix. Maintenance History: Shows the log of all recorded component fixes. Advanced Maintenance: Resets all preventive maintenance items. 3-63 Thermo Scientific 450iQ Instruction Manual...
Page 90: Preventive Maintenance
Reset: Once the component is serviced/replaced, the user presses the Reset button and the “Months Left” value resets to the “Service Interval in Months” value. Alert: Allows the user to opt out of receiving preventive maintenance alerts. Displays Enabled/Disabled for each component. 3-64 450iQ Instruction Manual Thermo Scientific...
Page 91 DC Power Supply: Service interval for DC power supply. Fan Filter: Service interval for fan filter. System Components: Service interval for system components. Purafil: Service interval for purafil. Charcoal: Service interval for charcoal. Dri-Rite: Service interval for dri-rite. 3-65 Thermo Scientific 450iQ Instruction Manual...
Page 92: Change Part
Fix: User chooses from new, rebuilt, cleaned, and unknown. Comment: User can write a brief comment, which will be saved to the preventive maintenance history table. Commit: User commits and saves the selected part fix. 3-66 450iQ Instruction Manual Thermo Scientific...
Page 93: Maintenance History
Part: Component that has been fixed. Fix: The type of maintenance. Date: Shows date/time when service was logged. Service Months: Amount of time in months since last service. Comments: Shows comments entered from time of change. 3-67 Thermo Scientific 450iQ Instruction Manual...
Page 94: File Sharing And Support
Alert Assistant: With the iQ Alert Assistant enabled, the instrument will email Thermo Scientific Technical Support the health check report after each event. After each maintenance alert or predictive diagnostic alert, Customer Service will produce a quote for the components that require service.
Page 95 Status and Renewal Request: Allows the user to access the iQ360 menu once the subscription has been enabled. Cancel and Return to the Home Screen: Exits screen and returns to the Home Screen. 3-69 Thermo Scientific 450iQ Instruction Manual...
Page 96 Enter Subscription Access Code: Allows the user to enter the subscription passcode to enable an iQ360 subscription. Exit and Return to the Home Screen: Exits screen and returns to the Home Screen. 3-70 450iQ Instruction Manual Thermo Scientific...
Page 97 Subscription Expiration Date: Informs the user when the subscription will expire. iQ360 Test Connection: Allows the user to verify the network connection is working. iQ360 Subscription Renewal: Allows the user to request a subscription renewal via email. 3-71 Thermo Scientific 450iQ Instruction Manual...
Page 98: Measurement Settings
Gas Units: Defines how the SO S, and CS concentration reading are expressed. Dilution Ratio: Serves as a multiplier when dilution gas is utilized. Advanced Measurement Settings: Advanced settings affecting SO and CS readings. 3-72 450iQ Instruction Manual Thermo Scientific...
Page 99: Averaging Time
At the same time it will preserve the representative nature of the filtered data to the conditions being sampled. Note When Dynamic Filtering is selected, the user selected Averaging Time button is disabled. Home Screen>Settings>Measurement Settings>Averaging Time (single range mode) 3-73 Thermo Scientific 450iQ Instruction Manual...
Page 100 High Range Averaging Time: Sets high averaging time when in dual or auto range mode and when dynamic filtering is disabled. Low Range Averaging Time: Sets low averaging time when in dual or auto range mode and when dynamic filtering is disabled. 3-74 450iQ Instruction Manual Thermo Scientific...
Page 101: Range Mode Selection
100 ppb, as shown below. Sample concentrations below 50 ppb are output based on low range selection and sample concentrations above 50 ppb are output based on high range selection. When the low 3-75 Thermo Scientific 450iQ Instruction Manual...
Page 102 This is especially necessary if the two ranges are not close to one another. For example, the low range is set to 0–50 ppb and the high SO range is set to 0–10000 ppb. 3-76 450iQ Instruction Manual Thermo Scientific...
Page 103: Range Settings
Home Screen>Settings>Measurement Settings>Range Settings (dual or auto range mode) The Range Settings screen contains the following information: Range Setting: Sets the SO concentration range for the analog outputs when in single range mode. 3-77 Thermo Scientific 450iQ Instruction Manual...
Page 104 Settable standard ranges according to unit selection include: 50−10000 ppb 0.05−10 ppm 5e-06−0.001 % µg/m 200−25000 µg/m mg/m 0.2−25 mg/m 0.0002−0.025 g/m Settable extended ranges according to unit selection include: 500−100000 ppb 0.5−100 ppm 5e-05−0.01 % 3-78 450iQ Instruction Manual Thermo Scientific...
Page 105 Operation Settings µg/m 2000−250000 µg/m mg/m 2−250 mg/m 0.0002−0.25 g/m 3-79 Thermo Scientific 450iQ Instruction Manual...
Page 106: Gas Mode
Span: Used when calibrating the span coefficient. When pressed, sets the instrument to span mode. External Span: If optional perm oven is installed, allows the use of an external span source in addition to the internal permeation span. 3-80 450iQ Instruction Manual Thermo Scientific...
Page 107: Gas Units
Home Screen>Settings>Measurement Settings>Gas Units The Gas Units screen contains the following information: ppb: parts per billion. ppm: parts per million. %: percent. µg/m3: micrograms per meter cubed. mg/m3: milligrams per meter cubed. g/m3: grams per meter cubed. 3-81 Thermo Scientific 450iQ Instruction Manual...
Page 108: Advanced Measurement Settings
Optical Span Test: Enables/Disables test LED and reads the LED SO concentration. Extended Ranges: Enables/Disables extended ranges feature. Perm Oven Selection: Allows the user to select the operating temperature of the perm oven. Pressure Calibration: Calibrates pressure. 3-82 450iQ Instruction Manual Thermo Scientific...
Page 109 Settings>Optical Bench Settings>Continue To Detector Gain Settings Screen The Detector Gain Settings screen contains the following information: Across: Description: Define the actions the user can do. Detector Gain: User can manually set or automatically calibrate the detector gain. 3-83 Thermo Scientific 450iQ Instruction Manual...
Page 110 PMT Supply: User can manually adjust the PMT supply value, read target and calibration concentration, start/stop automatic calibration, read voltage, frequency and zero offset frequency values, and reset default values. Current PMT: Displays the current PMT voltage value. Units: Displays units for each item. 3-84 450iQ Instruction Manual Thermo Scientific...
Page 111 Please allow up to 5 minutes for calibration to complete. End Calibration: When pressed, the auto calibration is interrupted and the value does not change. Default Values: When pressed, the default PMT voltage setting is restored. 3-85 Thermo Scientific 450iQ Instruction Manual...
Page 112 The Auto/Manual Mode screen is used to display single gases or multiple gases (switching mode). Use the  and  buttons to select. Home Screen>Settings>Measurement Settings>Advanced Measurement Settings>Extended Ranges The Auto/Manual Mode screen contains the following information: 3-86 450iQ Instruction Manual Thermo Scientific...
Page 113 Standard Temperature for Gas Units: Allows the user to enter a value between 0 and 30 °C to correct the µg/m , mg/m , and g/m concentration calculations. 3-87 Thermo Scientific 450iQ Instruction Manual...
Page 114 Under the column labeled reading, the user enters the pressure in mmHg. Under the column labeled Calibration, the user presses the Start button to calibrate the low point of the sensor. Reset all values: Resets values to default. 3-88 450iQ Instruction Manual Thermo Scientific...
Page 115: Communications
ID number if two or more of instruments of the same model are connected to one computer. Valid instrument ID numbers are from 0 to 127. The 450iQ has a default instrument ID of 1. 3-89 Thermo Scientific...
Page 116 Note Refer to the “Bayern Hessen Protocol” section in the Communications Manual for a detailed description. Ethernet Protocol Selection: Allows the user to enable Streaming, Modbus, or Bayern Hessen to utilize the mobile app and/or those communication protocols. 3-90 450iQ Instruction Manual Thermo Scientific...
Page 117: Wired Tcp/Dhcp
DHCP disabled) The Wired TCP/DHCP screen contains the following information: DHCP: Toggles DHCP enabled/disabled. Dynamic IP Address: Dynamic IP address of the instrument. Dynamic Netmask: Dynamic Netmask of instrument. Dynamic Gateway: Dynamic Gateway of instrument. 3-91 Thermo Scientific 450iQ Instruction Manual...
Page 118 Static Gateway: Static Gateway of instrument. This is settable when DHCP is disabled. DNS Server Address: DNS IP address of instrument. This is settable when DHCP is disabled. Wired MAC Address: Instrument MAC address. Host Name: Host name of instrument. 3-92 450iQ Instruction Manual Thermo Scientific...
Page 119: Serial Rs-232/485
Baud Rate: User selectable baud rates from 1200 to 115200. Bits: User selectable between 7 and 8. Parity: User selectable between None, Even, and Odd. Stop Bits: User selectable between 1 and 2. RS 232/485: User selectable between RS-232 and RS-485. 3-93 Thermo Scientific 450iQ Instruction Manual...
Page 120: Analog I/O
Analog Out (Current): Allows the user to view current (mA) outputs. Analog Out Under/Over Range Enabled/Disabled: Allows the user to select whether or not the analog outputs are allowed to exceed the selected output range. 3-94 450iQ Instruction Manual Thermo Scientific...
Page 121: Digital I/O
Digital In: Allows the user to view digital inputs from external devices. Digital Out (Relays): Allows the user to view relay outputs. Digital Out (Solenoids): Allows the user to view solenoid outputs. Advanced Digital I/O: Allows user to test the digital out relays and solenoids. 3-95 Thermo Scientific 450iQ Instruction Manual...
Page 122: Email Server (Smtp)
From Email Address: The email address that goes in the From field in emails. SMTP Server Port: Server port of user’s email server. Email Password: Password for SMTP server. Email UserName: User name that is authorized to send email through SMTP server. 3-96 450iQ Instruction Manual Thermo Scientific...
Page 123: Bayern Hessen Settings
(001 to 999) that will preface the measured value in the response to the ‘DA’ command. Down: 1–8: Displays the register number and the measured values to be logged in the respective register location, in response to a valid query (DA) command. 3-97 Thermo Scientific 450iQ Instruction Manual...
Page 124: Ethernet Protocol Selection
Press Commit changes button to save selections. Yellow buttons indicate that the selection is enabled. More than one can be chosen. Home Screen>Settings>Communications>Ethernet Protocol Selection The Ethernet Protocol Selection screen contains the following information: Streaming Modbus Bayern Hessen 3-98 450iQ Instruction Manual Thermo Scientific...
Page 125: Instrument Settings
Alarm Setpoints: View and set all available alarm minimum and maximum values. Pump Power: Manually enables/disables the pump. Clock: Sets date and time. Display Setup: Sets touchscreen display settings. Language: Sets Language. Reboot Instrument: Reboots the instrument. 3-99 Thermo Scientific 450iQ Instruction Manual...
Page 126: Instrument Setpoints
Variable: Lists the items that have settable alarm limits. Setpoint: User sets high alarm for item. Units: Units for each item (not settable). Down: S:Converter Temperature: H S converter temperature. Perm Oven Temperature: Perm oven temperature. 3-100 450iQ Instruction Manual Thermo Scientific...
Page 127: Alarm Setpoints
Value: Displays the current value for each item. Low Alarm: User sets low alarm for item. High Alarm: User sets high alarm for item. Units: Units for each item (not settable). Down: Concentration: SO concentration alarm. 3-101 Thermo Scientific 450iQ Instruction Manual...
Page 128 Instrument Temperature: Instrument temperature alarm. Bench Pressure: Bench pressure alarm. Flow: Flow pressure alarm. Bench Temperature: Bench temperature alarm. S Converter Temperature: H S converter temperature alarm. Perm Oven Temperature: Perm oven temperature alarm. 3-102 450iQ Instruction Manual Thermo Scientific...
Page 129: Clock
Date Format: User selects date format. Time: User sets time. Time Zone: User chooses time zone. Time Server: User can enable/disable the time server to get periodic clock updates. Commit: When pressed, clock settings are saved. 3-103 Thermo Scientific 450iQ Instruction Manual...
Page 130 Operation Settings Date The Date screen allows the user to choose date. Use the  and  buttons to move left and right to select month and year. Home Screen>Settings>Instrument Settings>Clock>Date 3-104 450iQ Instruction Manual Thermo Scientific...
Page 131 The Date Format screen allows the user to choose from the following formats: mm/dd/yyyy or dd/mm/yyyy. Use the  and  buttons to select. Home Screen>Settings>Instrument Settings>Clock>Date Format The Date Format screen contains the following information: U.S. Format mm/dd/yyyy European Format dd/mm/yyyy ISO 8601 yyyy-mm-dd 3-105 Thermo Scientific 450iQ Instruction Manual...
Page 132 The Time screen allows the user to choose from the following formats: mm/dd/yyyy or dd/mm/yyyy. Use the  and  buttons to select. Home Screen>Settings>Instrument Settings>Clock>Time The Time screen contains the following information: Hours Minutes Seconds 3-106 450iQ Instruction Manual Thermo Scientific...
Page 133: Time Zone
Alaskan Time Zone(UTC-9) Pacific Time Zone(UTC-8) Pacific Daylight Savings(UTC-7) Mountain Time Zone(UTC-7) Mountain Daylight Savings(UTC-6) Central Time Zone(UTC-6) Central Daylight Savings((UTC-5) Eastern Time Zone(UTC-5) Eastern Daylight Savings(UTC-4) Atlantic Time Zone(UTC-4) Mid-Atlantic(UTC-3) South Georgia(UTC-2) Cape Verde Time(UTC-1) 3-107 Thermo Scientific 450iQ Instruction Manual...
Page 134 Coordinated Universal Time(UTC-0) Central European Time(UTC+1) Eastern European Time(UTC+2) Further-Eastern European Time(UTC+3) Gulf Standard Time(UTC+4) Yekaterinburg Time(UTC+5 Omsk Time(UTC+6) Indochina Time(UTC+7) ASEAN Common Time(UTC+8) Japan Standard Time(UTC+9) Chamorro Time Zone(UTC+10) Sredmnekolymsk Time(UTC+11) New Zealand Standard Time(UTC+12) 3-108 450iQ Instruction Manual Thermo Scientific...
Page 135 The Time Server screen contains the following information: Time Server: Enables/Disables periodic clock updates from an NTP (Network Time Protocol) source. Set Time Server: User can choose specific time server. Set Default: When pressed, default time server will be used. 3-109 Thermo Scientific 450iQ Instruction Manual...
Page 136: Display Setup
Power Save: Minutes before screen times out. Toggles enable/disable. Power Save Setting: Option whereby the user can display a black screen after a set amount of inactivity. Brightness: Sets the brightness of the display. 3-110 450iQ Instruction Manual Thermo Scientific...
Page 137 Operation Settings Language The Language screen allows the user to choose from the following languages. Home Screen>Settings>Instrument Settings>Language The Language screen contains the following information: English Chinese Spanish 3-111 Thermo Scientific 450iQ Instruction Manual...
Page 138: Configuration
Communications Board: Enables RS-232 or RS-485 communication board option. Predictive Diagnostics: Enables predictive diagnostics. Analog I/O: Enables analog I/O option. Digital I/O: Enables digital I/O option. Instrument Warmup: Enables instrument warm up option. 3-112 450iQ Instruction Manual Thermo Scientific...
Page 139: Security Access Levels
Change Security Access to View Only: User can switch to view only mode. Password not needed to change settings to view only access. Change Security Access to Full Access: User can switch to full access mode. Password is needed to change settings to full access. 3-113 Thermo Scientific 450iQ Instruction Manual...
Page 140 Change Full Access Security Password: Full access password can have a blank value or user selected password. Change Instrument Password: User can change instrument password. Reset Instrument Password: User can reset the instrument password. 3-114 450iQ Instruction Manual Thermo Scientific...
Page 141: Change Security To View Only Access
Cancel: Exit screen. Note To change security access from view only access to full access, a keypad will be displayed where the user can enter full access password. 3-115 Thermo Scientific 450iQ Instruction Manual...
Page 142: Change Full Access Security Password
The Change Full Access Security Password screen allows the user to set a Security Password new password for allowing full access. Home Screen>Settings>Security Access Levels>Change Full Access Security Password Home Screen>Settings>Security Access Levels>Change Full Access > Security Password Continue 3-116 450iQ Instruction Manual Thermo Scientific...
Page 143 Confirm New Security Access Password: User confirms new security password for spelling confirmation. Commit New Security Access Password Change: Commits new security password. Cancel and Return to the Home Screen: Exits screen and returns to the Home Screen without changing password. 3-117 Thermo Scientific 450iQ Instruction Manual...
Page 144: Change Instrument Password
Operation Settings Change Instrument The Change Instrument Password screen allows the user to change the Password instrument password. Home Screen>Settings>Security Access Levels>Change Instrument Password Home Screen>Settings>Security Access Levels>Change Instrument Password>Continue 3-118 450iQ Instruction Manual Thermo Scientific...
Page 145 Confirm New Instrument Password: User confirms new instrument password for spelling confirmation. Commit New Instrument Password Change: Commits new instrument password. Cancel and Return to the Home Screen: Exits screen and returns to the Home Screen without changing password. 3-119 Thermo Scientific 450iQ Instruction Manual...
Page 146: Reset Instrument Password
The Reset Instrument Password screen contains the following information: Reset: Allows the user to reset the instrument password. Cancel and Return to the Home Screen: Exits screen and returns to the Home Screen without changing password. 3-120 450iQ Instruction Manual Thermo Scientific...
Page 147: Usb Drive
The USB Drive screen contains the following information: Firmware Update Via USB Drive: If USB is mounted, user can update instrument firmware. Download Data To USB Drive: User can download/upload information. Change USB Password: User can change the USB password. 3-121 Thermo Scientific 450iQ Instruction Manual...
Page 148: Firmware Update Via Usb Drive
The Firmware Update Via USB Drive screen contains the following information: Update Firmware: User chooses firmware file from USB and updates instrument firmware. Instrument reboots when update is finished. Exit: User exits without updating firmware. 3-122 450iQ Instruction Manual Thermo Scientific...
Page 149 If a USB password has been previously set, you will be prompted to enter the USB password to continue. Press Enter to continue. 3. Press the OK button on the pop-up box to go to the Firmware Update Via USB Drive screen. 3-123 Thermo Scientific 450iQ Instruction Manual...
Page 150 6. The on-screen instructions will prompt the user to select the firmware update file and display what it is doing at each step and some steps may take several minutes to complete. 7. Press Yes to confirm and proceed with the firmware upgrade. 3-124 450iQ Instruction Manual Thermo Scientific...
Page 151 Note Do not power off the instrument while the firmware update is in progress. 8. The instrument should reboot automatically and should have the new firmware installed. To check that the firmware was installed, go to the Settings>Health Check screen and view the Firmware Version button. 3-125 Thermo Scientific 450iQ Instruction Manual...
Page 152: Download Data To Usb Drive
USB to the instrument. Restore: Allows the user to upload the configuration files from the USB to the instrument. Download All Data: Downloads all reports, logs, histories, and backup information. 3-126 450iQ Instruction Manual Thermo Scientific...
Page 153 If a USB password has been previously set, you will be prompted to enter the USB password to continue. Press Enter to continue. 2. To continue, select the OK button. 3. The USB Drive will display. Select Download Data To USB Drive. 3-127 Thermo Scientific 450iQ Instruction Manual...
Page 154 “Success!” message and display the file name as it is stored on the USB flash drive. (The file name format is the instrument serial number, name of download, followed by a date/time stamp.) Remove the USB flash drive and select the OK button to continue. 3-128 450iQ Instruction Manual Thermo Scientific...
Page 155: Change Usb Password
Settings Change USB Password The Change USB Password screen allows the user to set a new password for accessing USB. Home Screen>Settings>USB Drive>Change USB Password Home Screen>Settings>Security Access Levels>Change Standard Access > Password Continue 3-129 Thermo Scientific 450iQ Instruction Manual...
Page 156 Confirm New Security Access Password: User confirms new security password for spelling confirmation. Commit New USB Password Change: Commits new USB password. Cancel and Return to the Home Screen: Exits screen and returns to the Home Screen without changing password. 3-130 450iQ Instruction Manual Thermo Scientific...
Page 157: Reset Usb Password
The Reset USB Password screen contains the following information: Reset: Allows the user to reset the USB password. Cancel and Return to the Home Screen: Exits screen and returns to the Home Screen without changing password. 3-131 Thermo Scientific 450iQ Instruction Manual...
Page 158: User Contact Information
Business Name User Name Alternate User Name User ID Business Address Business Shipping Address To: User Email Address CC: User Email Address 1−10 User Phone Number Alternate User Phone Number Shelter / Lab Phone Number 3-132 450iQ Instruction Manual Thermo Scientific...
Page 159: Update Bootloader
If the button is blue, an update to the bootloader is available. If button is greyed out, no update is needed. Home Screen>Settings>Update Bootloader The Update Bootloader screen contains the following information: Reboot and Update: Update bootloader and reboot instrument. Exit: Exits screen. 3-133 Thermo Scientific 450iQ Instruction Manual...
Page 161: Chapter 4 Calibration
Chapter 4 Calibration The 450iQ requires initial and periodic calibration according to the procedures described in this chapter. A quality control plan that allows the frequency and number of calibration points to be modified depending on calibration and zero/span check data should be implemented. Such a quality control program is essential to ascertain the accuracy and reliability of the air quality data collected.
Page 162: Cylinder Gas Dilution
Figure 4–1. Cylinder Gas Dilution System The exact SO concentration is calculated from: Where: = diluted SO concentration at the output manifold, ppm = concentration of the undiluted SO standard, ppm 450iQ Instruction Manual Thermo Scientific...
Page 163: Commercial Precision Dilution Systems
H S in air is precisely diluted Systems to the concentration range required. The Thermo Scientific 146iQ Multigas Calibrator is one such system for precision dilution. Permeation Tube Permeation tube systems which precisely maintain a set temperature to within ±0.1 °C and hold a zero air flow rate to within ±0.5% can be used System for generation of span gas.
Page 164: Pre-Calibration
K (H S) = 0.717 constant for H S permeant Commercial Commercial permeation systems, such as the Thermo Scientific 146iQ Multigas Calibrator, are available for this requirement. Refer to the Permeation Systems instrument instruction manual for more information. An internal permeation span source option is also available for this instrument.
Page 165 Perform the following pre-calibration procedure before calibrating the 450iQ. For detailed information about the menu parameters and the icons used in these procedures, see the “Operation” chapter. Note The calibration and calibration check duration times should be long enough to account for the transition (purge) process when switching from sample to zero and from zero to span.
Page 166: Calibration In Single Range Mode
Backgrounds to Zero calibration. The background signal is the combination of electrical offsets, PMT dark current, and trace substances undergoing fluorescence. For more detailed information, see “Calibrate SO2 and CS Background” in the “Operation” chapter. 450iQ Instruction Manual Thermo Scientific...
Page 167: Calibrate So
Use the following procedure to calibrate the SO channel to the SO calibration gas. 1. Allow the analyzer to sample the SO calibration gas of approximately 80% of the full-scale range until the SO S, and CS readings have stabilized. Thermo Scientific 450iQ Instruction Manual...
Page 168: Calibrate Cs
Concentration button. The Calculated CS Span Coefficient button will show what the span coefficient will be set to if the Calibrate button is pressed. Pressing the Calibrate button will save the new CS span coefficient and calibrate the instrument. 450iQ Instruction Manual Thermo Scientific...
Page 169: Calibrate H S
S calibration gas concentration using the pushbuttons, and then press Calibrate to calibrate the instrument to the H S calibration gas. 4. Record the [H concentration and the instrument’s response. The exact H S concentration is calculated from: Thermo Scientific 450iQ Instruction Manual...
Page 170: Calibration In Dual Range And Auto Range Mode
Use the following procedure to calibrate the analyzer in dual or auto range mode. Set SO and CS Follow the “Set SO2 and CS Backgrounds to Zero” procedure on page 4-6. Backgrounds to Zero 4-10 450iQ Instruction Manual Thermo Scientific...
Page 171: Zero And Span Check
ZERO IN and SPAN, otherwise connect a source of vented zero air to the SAMPLE bulkhead. Note Do not use nitrogen for zero air. 4-11 Thermo Scientific 450iQ Instruction Manual...
Page 172: Manual Calibration
The following screen is shown in single range mode. In dual or auto range modes, “High Range” or “Low Range” buttons are displayed to indicate the 4-12 450iQ Instruction Manual Thermo Scientific...
Page 173: Adjust So
The second button called Adjusted SO Concentration shows what the new SO concentration would be based on the changed zero background. Press the Calibrate button to save the adjusted zero background value. Home Screen>Calibration>Advanced Calibration>Manual Calibration>Adjust Backgrounds>Adjust SO Background 4-13 Thermo Scientific 450iQ Instruction Manual...
Page 174: Adjust Span Coefficient
Coefficient (dual or auto range mode) Reset Bkg to 0.000 The Reset Bkg to 0.000 and Span Coef to 1.000 screen allows the user to reset the calibration configuration values to factory defaults. and Span Coef to 1.000 4-14 450iQ Instruction Manual Thermo Scientific...
Page 175: Zero/Span Schedule
The Span and Purge Duration buttons look and function the Duration Minutes same way as the zero duration button. The span duration button is used to set how long the span gas is sampled by the instrument. The purge 4-15 Thermo Scientific 450iQ Instruction Manual...
Page 176: Schedule Averaging Time
1, a span duration will follow every zero duration. If this value is set to 3, there will be two zero checks between each span check. This value may be set from 1 to 99, with 1 as default. 4-16 450iQ Instruction Manual Thermo Scientific...
Page 177: Chapter 5 Maintenance
2. Flush the filter with warm water and let dry (a clean, oil-free purge will help the drying process) or blow the filter clean with compressed air. 3. Re-install the filter and fan guard. 450iQ Instruction Manual 5-1 Thermo Scientific...
Page 178: Pump Rebuilding
4. Lift the head plate and the intermediate plate off the housing. 5. Hold the pump with one hand, so that the diaphragm is pointing downwards. Lift the diaphragm by the opposing side edges, grasp it and unscrew it in the counter-clockwise direction. 450iQ Instruction Manual Thermo Scientific...
Page 179 12. Place the head plate on the intermediate plate, in the position indicated by the drawing line; gently tighten the four screws, evenly and diagonally (if a torque screwdriver is available: torque about 0.30 Nm). 13. Let the pump run. Thermo Scientific 450iQ Instruction Manual...
Page 180: Figure 5-2. Pump Rebuilding
Maintenance Pump Rebuilding Figure 5–2. Pump Rebuilding 450iQ Instruction Manual Thermo Scientific...
Page 181: Leak Test
4. Squeeze trigger until gauge reads to pull in 10 in Hg. 5. Observe vacuum gauge for stable reading for 5 minutes. If reading remains at 10 in Hg, no leak is present. Note Acceptable leak rate is .5 in Hg over 10 minutes. Thermo Scientific 450iQ Instruction Manual...
Page 182: Lamp Voltage Check
Use the following procedure to adjust the lamp voltage. 1. From the Home screen choose Settings>Measurement Settings>Advanced Measurement Settings>SO Bench Settings>Continue To Detector Gain Settings Screen. 2. Under the Detector Gain – Auto Cal, Press “Start” to initiate the auto calibration sequence. 450iQ Instruction Manual Thermo Scientific...
Page 183 Maintenance Lamp Voltage Adjustment 3. To manually adjust the detector gain, touch the numeral value under the detector gain. Then change the Manual Entry Detector Gain to your set value and save. Thermo Scientific 450iQ Instruction Manual...
Page 185: Chapter 6 Troubleshooting
Guide experience an instrument problem. It also lists 450iQ specific troubleshooting information and alarm messages you may see on the graphics display and provides recommendations about how to resolve the alarm condition.
Page 186 Replace inlet filter (if installed) filters and other sample and as much as possible. handling equipment are contaminated or dirty Hydrocarbon kicker has Replace the hydrocarbon kicker. failed High scattered light Toggle the “Flash Lamp” off in the Settings>Measurement 450iQ Instruction Manual Thermo Scientific...
Page 187 Zero or Span will not Flow rate of the diluted Check the by-pass or atmospheric stabilize span mix is inadequate pressure vent to verify that the zero air system is providing more flow than the instrument is Thermo Scientific 450iQ Instruction Manual...
Page 188 Reduced response or no Instrument is not Verify the SO or H S backgrounds response to sample gas properly calibrated and SO or H S coefficients are with no alarm(s) indicated set appropriately in the Calibration screen. 450iQ Instruction Manual Thermo Scientific...
Page 189 Try to localize source of noise by comparing analog signal to data collected through RS-232 or Ethernet. Poor linearity Problem with calibrator Verify accuracy of the calibration system with an independent flow meter. Thermo Scientific 450iQ Instruction Manual...
Page 190 Settings>Communications>Analog I/O screen. Recorder is drawing Verify that the recorder or data down output logger input impedance meets minimum requirements. Flow meter fluctuations Dirty pump diaphragm Clean or replace pump diaphragm. 450iQ Instruction Manual Thermo Scientific...
Page 191 Replace heater. Alarm – Flow Flow low Check sample capillary for blockage. Replace as necessary. If using sample particulate filter, make sure it is not blocked. Disconnect sample particulate filter from the sample bulkhead. If Thermo Scientific 450iQ Instruction Manual...
Page 192 Alarm – Module Cable connection Check that DMC cable is Temperature connected properly. Reseat if needed. Other alarm Make sure the instrument temperature is not too high or in alarm. Defective DMC PCB Replace DMC board. 450iQ Instruction Manual Thermo Scientific...
Page 193 Alarms>Concentrations screen. Instrument background Recalibrate the instrument. calibration failed Alarm – Auto Span Incorrect high alarm limit Verify the high limit is correct via Cal/Check Settings>Status and Alarms>Concentrations screen. Instrument span Recalibrate the instrument. calibration failed Thermo Scientific 450iQ Instruction Manual...
Page 195: Chapter 7 Servicing
Chapter 7 Servicing This chapter describes the periodic servicing procedures that should be performed on the instrument to ensure proper operation and explains how to replace the 450iQ subassemblies. Safety Read the safety precautions before beginning any procedures in this chapter.
Page 196: Figure 7-1. Properly Grounded Antistatic Wrist Strap
When the instrument is unplugged, the chassis is not at earth ground. Figure 7–1. Properly Grounded Antistatic Wrist Strap Note Ground to unpainted case or outlet as shown. 450iQ Instruction Manual Thermo Scientific...
Page 197: Firmware Updates
Firmware” in the iQ Series Communications manual. Replacement For a complete list of spare parts, visit the company website at: Parts List https://www.analyticalinstrumentparts.com/products/source-gas- monitoring.aspx Refer to Figure 7–2 Figure 7–3 to identify the component location. Thermo Scientific 450iQ Instruction Manual...
Page 198: Figure 7-2. 450Iq Component Layout Top View
Servicing Replacement Parts List Figure 7–2. 450iQ Component Layout Top View Figure 7–3. 450iQ Component Layout Side View 450iQ Instruction Manual Thermo Scientific...
Page 199: Fuse Replacement
1. Turn instrument OFF and unplug the power cord. 2. Remove fuse drawer, located on the AC power connector. 3. If either fuse is blown, replace both fuses. 4. Insert fuse drawer and reconnect power cord. Figure 7–4. Replacing the Fuses Thermo Scientific 450iQ Instruction Manual...
Page 200: Filter Replacement
2. Starting with top right corner, pull out to remove fan cover. Figure 7–5. Start with Top Right Corner of Fan Cover 3. Replace filter and snap fan cover back in place. Figure 7–6. Removing the Fan Cover 450iQ Instruction Manual Thermo Scientific...
Page 201: Fan Replacement
3. Starting with top right corner, pull out to remove fan cover. 4. Unhook the four latches of the fan cover. 5. Unfasten the four 6-32 screws from the fan housing. 6. Replace fan and reassemble in reverse order. Thermo Scientific 450iQ Instruction Manual...
Page 202: Figure 7-8. Replacing The Fan
Servicing Fan Replacement Figure 7–8. Replacing the Fan 450iQ Instruction Manual Thermo Scientific...
Page 203: Measurement Side Removal And Replacing
Phillips drive, #2 1. Turn instrument OFF, unplug power cord, and remove the cover (Figure 2–1). 2. Unplug the fan cable J18 (Figure 7–9). Figure 7–9. Unplugging the Fan Cable 3. Unplug DMC cable (Figure 7–10). Thermo Scientific 450iQ Instruction Manual...
Page 204: Figure 7-10. Unplugging The Dmc Cable
Figure 7–10. Unplugging the DMC Cable 4. Gripping from the top corners of the front panel and pull outwards. 5. Remove three 8-32 flat head screws (Figure 7–11). Figure 7–11. Unfasten Hardware Front for Measurement Side Removal 7-10 450iQ Instruction Manual Thermo Scientific...
Page 205: Figure 7-12. Unfasten Hardware Rear For Measurement Side Removal
6. Swing arm open. 7. Unfasten captive hardware. 8. Remove two 8-32 flat head screws. 9. Pull measurement side out. 10. Replace in reverse order. Figure 7–12. Unfasten Hardware Rear for Measurement Side Removal 7-11 Thermo Scientific 450iQ Instruction Manual...
Page 206: Lcd Module Replacement
2. Gripping from the top corners of the front panel and pull outwards. 3. Unfasten four nuts (Figure 7–13). Figure 7–13. Replacing the LCD Module 4. Remove cover. 5. Unplug LCD cables from backside of board. 6. Pull board off the standoffs. 7-12 450iQ Instruction Manual Thermo Scientific...
Page 207: Figure 7-14. Remove Electrical Cables From Lcd
Servicing LCD Module Replacement Figure 7–14. Remove Electrical Cables from LCD 7. Replace LCD module and reassemble in reverse order. 7-13 Thermo Scientific 450iQ Instruction Manual...
Page 208: I/O Replacement
Use the following procedure to replace the I/O boards. 1. Turn instrument OFF, unplug power cord, and remove the cover (Figure 2–1). 2. Swing arm open. Figure 7–15. I/O Replacement, Arm 3. Pull board upwards. Figure 7–16. I/O Replacement, Remove Board 7-14 450iQ Instruction Manual Thermo Scientific...
Page 209: Figure 7-17. I/O Replacement, Install
4. During install, make sure to align cutout circular to keyway. 5. Insert board downwards. Figure 7–17. I/O Replacement, Install 6. Close arm. Make sure expansion bracket aligns to the inside of the rectangular cutouts. Figure 7–18. I/O Replacement, Close Arm Alignment 7-15 Thermo Scientific 450iQ Instruction Manual...
Page 210: Peripherals Support Board And System Controller Board Replacement
1. Turn instrument OFF, unplug power cord, and remove the cover Controller Board (Figure 2–1). Replacement 2. Pull tab out (two per board). 3. Pull board out. Figure 7–19. Replacing the Peripherals Support Board 4. Replace board and reassemble in reverse order. 7-16 450iQ Instruction Manual Thermo Scientific...
Page 211: Dmc Pressure And Flow Board
(Figure 2–1). 2. Unplug cables from the pressure and flow board. Figure 7–20. Flow Pressure Board, Disconnect DMC Cable 3. Disconnect plumbing. 4. Using 7/16 hex drive, unfasten four #6-32 socket cap head screws. 7-17 Thermo Scientific 450iQ Instruction Manual...
Page 212: Figure 7-21. Flow Pressure Board, Screws
Servicing DMC Pressure and Flow Board Figure 7–21. Flow Pressure Board, Screws 5. Replace board and reassemble in reverse order. 7-18 450iQ Instruction Manual Thermo Scientific...
Page 213: Pump Replacement
7. Unplug pump cable from Step POL board J7. 8. Twist opposite direction to unlock tube clamps. Note Push in tube clamp to lock. 9. Disconnect tubing from pump. 10. Unfasten two captive hardware. 11. Slide pump left until keyway meets opening. 7-19 Thermo Scientific 450iQ Instruction Manual...
Page 214: Figure 7-22. Remove Pump, Disconnect And Unfasten
Servicing Pump Replacement Figure 7–22. Remove Pump, Disconnect and Unfasten 12. Pull pump outwards. Note When installing pump, make sure the pump keyway opening goes over the keyway. 7-20 450iQ Instruction Manual Thermo Scientific...
Page 215: Figure 7-23. Pump Removal, Keyway
Servicing Pump Replacement Figure 7–23. Pump Removal, Keyway 13. Remove two screws. Figure 7–24. Pump replacing, Unfasten Screws 14. Replace pump and reassemble in reverse order. 7-21 Thermo Scientific 450iQ Instruction Manual...
Page 216: Capillary Cleaning And/Or Replacement
1. Turn instrument OFF, unplug power cord, and remove the cover (Figure 2–1). 2. Disconnect the plumbing. 3. Unfasten captive hardware. Figure 7–25. Remove Capillary, Disconnect and Unfasten 4. Slide capillary plate upwards clearing the partition panel keyway. 7-22 450iQ Instruction Manual Thermo Scientific...
Page 217: Figure 7-26. Capillary Plate, Keyway
Servicing Capillary Cleaning and/or Replacement Figure 7–26. Capillary Plate, Keyway 5. Using 7/64 hex drive, remove four #6-32 socket cap head screws. 6. Pull apart the capillary blocks. Figure 7–27. Capillary and O-Ring Replace 7-23 Thermo Scientific 450iQ Instruction Manual...
Page 218: Capillary O-Ring Replacement
1. Turn instrument OFF, unplug power cord, and remove the cover (Figure 2–1). 2. Unplug all electrical shown J9, J10, J24, J25, J26, and ground. 3. Unfasten captive hardware. 4. Slide power supply left, clearing three case floor plate keyways. 7-24 450iQ Instruction Manual Thermo Scientific...
Page 219: Figure 7-28. Removing Power Supply
Servicing Power Supply Replacement Figure 7–28. Removing Power Supply 5. Pull power supply up. 6. Replace power supply and reassemble in reverse order. 7-25 Thermo Scientific 450iQ Instruction Manual...
Page 220: Figure 7-29. Replacing Power Supply
Servicing Power Supply Replacement Figure 7–29. Replacing Power Supply 7-26 450iQ Instruction Manual Thermo Scientific...
Page 221: Step Pol Board Replacement
1. Turn instrument OFF, unplug power cord, and remove the cover (Figure 2–1). 2. Unplug Step POL power cable J4. 3. Unplug Step POL signal cable J2. 4. Unplug pump cable J7. 5. Unfasten captive hardware. Figure 7–30. Unplug and Unfasten Step POL Board 7-27 Thermo Scientific 450iQ Instruction Manual...
Page 222: Figure 7-31. Clear Partition Keyway Step Pol Board
7–32). If replacing optional step board 2, make sure switch 1 is pointed towards ON and switch 2 is pointed away from ON (Figure 7–33). 8. Replace Step POL board and reassemble in reverse order. 7-28 450iQ Instruction Manual Thermo Scientific...
Page 223: Figure 7-32. Step Pol Board 1 Switch Settings
Servicing Step POL Board Replacement Figure 7–32. Step POL Board 1 Switch Settings Figure 7–33. Optional Step POL Board 2 Switch Settings 7-29 Thermo Scientific 450iQ Instruction Manual...
Page 224: Dmc Optical Bench Removal
Assembly Removal Equipment required: Phillips drive, #2 1. Turn instrument OFF, unplug power cord, and remove the cover (Figure 2–1). 2. Unplug two DMC cables. 3. Disconnect all plumbing. 4. Unfasten six captive hardware. 7-30 450iQ Instruction Manual Thermo Scientific...
Page 225: Figure 7-34. Removing The Dmc Optical Bench Removal From Instrument
Servicing DMC Optical Bench Removal Figure 7–34. Removing the DMC Optical Bench Removal from Instrument Thermo Scientific 450iQ Instruction Manual 7-31...
Page 226: Figure 7-35. Removing The Optical Bench Assembly
1. Unplug all electrical as shown. Figure 7–35. Removing the Optical Bench Assembly 2. Using 3/8 hex nut drive, unfasten nut. 3. Using 5/32 hex drive, unfasten two #10-32 socket cap head screws. 4. Pull optical bench assembly upwards. 7-32 450iQ Instruction Manual Thermo Scientific...
Page 227 Servicing DMC Optical Bench Removal Figure 7–36. Removing the Optical Bench Assembly pt 2 7-33 Thermo Scientific 450iQ Instruction Manual...
Page 228: Photomultiplier Tube (Pmt) Replacement
1. Turn the instrument OFF, unplug the power cord, and remove the cover. 2. Unplug all electrical as shown. 3. Using 5/32 hex drive, unfasten two #10-32 socket cap head screws. 4. Pull photomultiplier housing upwards. Figure 7–37. Removing the PMT Assembly 7-34 450iQ Instruction Manual Thermo Scientific...
Page 229: Figure 7-38. Removing The Pmt Cover
Note Wear lint-free gloves to unplug PMT from base. 7. Using #2 Phillips drive, unfasten two #6-32 pan head screws. 8. Replace PMT as needed and assemble in reverse order. Figure 7–39. Replacing the PMT 7-35 Thermo Scientific 450iQ Instruction Manual...
Page 230: Flasher Pack Replacement
Equipment required: Hex drive, 1/16 1. Unplug flash trig from board. 2. Loosen 6-32 set screw until the flasher pack/lamp can be eased out of housing. Figure 7–40. Removing and Replacing the Flasher Pack 7-36 450iQ Instruction Manual Thermo Scientific...
Page 231: Flasher Pack Lamp Replacement
Use the following procedure to replace and flasher pack lamp. Replacement Equipment required: Lint-free gloves 1. Wearing lint-free gloves unplug the lamp from the flasher pack. Figure 7–41. Replacing the Flasher Pack Lamp 2. Replace flasher pack lamp and assemble in reverse order. 7-37 Thermo Scientific 450iQ Instruction Manual...
Page 232 Figure 7–42. Replacing the Photo Lamp Detector Board pt 1 3. Pull detector cover outwards. 4. Using #1 Phillips drive, unfasten four #4-40 pan head screws. 5. Pull photo lamp detector board outwards. 6. Replace lamp detector board and assemble in reverse order. 7-38 450iQ Instruction Manual Thermo Scientific...
Page 233 Servicing DMC Optical Bench Removal Figure 7–43. Replacing the Photo Lamp Detector board pt 2 7-39 Thermo Scientific 450iQ Instruction Manual...
Page 234: Kicker Assembly Replacement
3. Once kicker assembly clears the keyway, pull outwards towards the board and up. Figure 7–44. Removing and Replacing the Kicker Assembly 4. Replace the kicker assembly and assemble in reverse order. 7-40 450iQ Instruction Manual Thermo Scientific...
Page 235: Optional Manifold Replacement
2. Unplug three electrical connections (J5, J6, and J8) from the Step POL board 2. Figure 7–45. Replacing the Manifold pt 1 3. Unfasten three nuts. Remove the nuts, front and back ferrules as shown from span, zero in, sample back panel. 7-41 Thermo Scientific 450iQ Instruction Manual...
Page 236: Figure 7-46. Replacing The Manifold Pt 2
Figure 7–46. Replacing the Manifold pt 2 4. Unfasten fitting nut and slide tee fitting assembly off. 5. Unfasten four #8-32 screws. Figure 7–47. Replacing the Manifold pt 3 6. Replace the manifold and assemble in reverse order. 7-42 450iQ Instruction Manual Thermo Scientific...
Page 237: Scrubber Replacement
1. Turn the instrument OFF, unplug the power cord, and remove the cover (Figure 2–1). 2. Disconnect plumbing, 2X. Figure 7–48. Removing and Replacing the Scrubber. 3. Pull scrubber out from clips and replace. 7-43 Thermo Scientific 450iQ Instruction Manual...
Page 238: Optional Dmc Permeation Oven Solenoid Valve Replacement
(Figure 2–1). 2. Unplug perm valve J7 from Step POL board 2. Figure 7–49. Removing and Replacing the Solenoid Valve pt 1 3. Loosen two 4-40 screws and slide optional perm valve out. 7-44 450iQ Instruction Manual Thermo Scientific...
Page 239 Disconnect from the attaching end only. This will prevent damaging and leaks from the valve end. Figure 7–50. Removing and Replacing the Solenoid Valve pt 2 4. Replace the permeation oven solenoid valve and assemble in reverse order. 7-45 Thermo Scientific 450iQ Instruction Manual...
Page 240: Mode Valve Replacement
(Figure 2–1). 2. Unplug perm valve J7 from Step POL board 1. Figure 7–51. Removing and Replacing the Mode Valve pt 1 3. Loosen two 4-40 screws and slide optional perm valve out. 7-46 450iQ Instruction Manual Thermo Scientific...
Page 241 Disconnect from the attaching end only. This will prevent damaging and leaks from the valve end. Figure 7–52. Removing and Replacing the Mode Valve pt 2 4. Replace the mode valve and assemble in reverse order. 7-47 Thermo Scientific 450iQ Instruction Manual...
Page 242: Converter Dmc Replacement
3. Disconnect all plumbing 8X. Note The amount of connections will vary depending on the different options installed. 4. Using a #2 Phillips drive, unfasten captive hardware 4X. Figure 7–53. Converter DMC Assembly Remove 7-48 450iQ Instruction Manual Thermo Scientific...
Page 243: Converter Assembly Board Replacement
4. Using a #2 Phillips drive, unfasten four 6-32 pan head screws. Figure 7–54. Replacing the Converter Assembly Board 5. Pull converter assembly board outwards. 6. Replace converter assembly board and assemble in reverse order. 7-49 Thermo Scientific 450iQ Instruction Manual...
Page 244: Converter Cartridge Heater Replacement
8. To replace converter, follow previous steps in reverse. Note be sure to wrap the O converter tube snugly around the heater. 9. Reinstall in reverse order. 7-50 450iQ Instruction Manual Thermo Scientific...
Page 245: Figure 7-55. Converter Assembly Replace Heater
Servicing Converter DMC Replacement Figure 7–55. Converter Assembly Replace Heater Thermo Scientific 450iQ Instruction Manual 7-51...
Page 246: Optional Permeation Oven Replacement
CAUTION Allow oven to cool down prior to servicing. 1. Turn the instrument OFF, unplug the power cord, and remove the cover (Figure 2–1). 2. Unplug DMC cables as shown. 3. Disconnect plumbing. Figure 7–56. Perm Oven pt 1 7-52 450iQ Instruction Manual Thermo Scientific...
Page 247: Figure 7-57. Finger Push And Release Tubing
Note Insert firmly to the guard against an accidental tube release. d. After inserting end of tube, relax your grip on the tool. Returning force of spring releases the tube. 7-53 Thermo Scientific 450iQ Instruction Manual...
Page 248 6. Disconnect plumbing from inline fitting. Note Do not disconnect from valve end. 7. Unfasten two captive hardware. Figure 7–58. Perm Oven Replacement pt 2 8. Replace DMC permeation oven and assembly in reverse order. 7-54 450iQ Instruction Manual Thermo Scientific...
Page 249: Optional Permeation Oven Board Replacement
2. Unplug all electrical J1, J7, J8, J9 as shown. 3. Using #2 Phillips drive, unfasten four 6-32 pan head screws. Figure 7–59. Replacing the Permeation Oven Board 4. Replace permeation board and assemble in reverse order. 7-55 Thermo Scientific 450iQ Instruction Manual...
Page 251: Chapter 8 System Description
Chapter 8 System Description The 450iQ deploys a set of modular subsystems that comprise the total instrument function. The core measurements for concentration are contained in Distributed Measurement and Control (DMC) modules. This chapter describes the function and location of the system components in the module framework, including firmware, electronics, and I/O function.
Page 252 Light Baffle The circular baffle helps keep stray light from entering the detection volume. Bandpass Filter The bandpass filter restricts the light reaching the photomultiplier tube to the SO fluorescence wavelengths. 450iQ Instruction Manual Thermo Scientific...
Page 253: Optical Bench Dmc
The optical bench DMC board accepts the current signal from the PMT and converts it to a voltage, which is scaled by a factor of approximately 1, Board 10, or 100 depending on the full-scale range of the SO channel. Thermo Scientific 450iQ Instruction Manual...
Page 254: Bench Heater
It consists of an insulated housing heater wrap, and a K-type thermocouple sensor. Permeation Oven The 450iQ can be configured with an optional permeation oven for generating SO span gas. The permeation oven is configured as a DMC (Optional) module with self-contained temperature measurements and heater controls.
Page 255: Figure 8-1. Common System Interconnect Diagram
System Description Common Electronics Figure 8–1. Common System Interconnect Diagram Thermo Scientific 450iQ Instruction Manual...
Page 256: Figure 8-2. 450Iq System Interconnect Diagram
System Description Common Electronics Figure 8–2. 450iQ System Interconnect Diagram 450iQ Instruction Manual Thermo Scientific...
Page 257: Power Supply
All electronics operate from a universal VDC supply, which is capable of auto-sensing the input voltage and working over all specified operating ranges. The 450iQ contains a 24 VDC channel for most electronics operation, including the pump and fan, and a 48 VDC channel dedicated specifically for optical bench heating.
Page 258: Peripherals Support System
Firmware Like the hardware, the firmware is modular and located within microprocessors distributed throughout the instrument. In the 450iQ, microprocessors containing firmware are located as follows: Optical Bench DMC Flow/Pressure DMC...
Page 259 SNMP registers, some of which is interfaced with the front panel Graphical User Interface (GUI). In addition to the operating registers, the 450iQ stores a historical data log in a MySQL database. The memory is provided on the same micro SD card where the operating software resides, for which there is capability to store up to a year of data at 1 minute intervals.
Page 261: Chapter 9 Optional Equipment
Chapter 9 Optional Equipment The 450iQ is available with the following options: Connecting Several components are available for connecting external devices. External Devices These connection options consist of three plug-in boards: Communication Board Analog I/O Board Digital I/O Board Figure 9–1. I/O Expansion Replacement Boards...
Page 262: Rs-232/Rs-485 Port
RS-232 or RS-485 communication. Figure 9–2. RS-232/RS-485 Port Table 9–1. RS-232/RS-485 Port Terminal Assignment Terminal Number Signal Name No Connect RX/RS485_RX_P TX/RS485_TX_N No Connect No Connect RTS/RS485_TX_P CTS/RS485_RX_N No Connect 450iQ Instruction Manual Thermo Scientific...
Page 263: Figure 9-3. Rs-485 External Accessory Port
Table 9–2. RS-485 External Accessory Port Terminal Assignment Terminal Number Signal Name EXT_RS485_RX_N EXT_RS485_RX_P +5V (Fused @0.4A) +5V (Fused @0.4A) +5V (Fused @0.4A) EXT_RS485_TX_N EXT_RS485_TX_P +24V (Fused @0.4A) +24V (Fused @0.4A) +24V (Fused @0.4A) +24V (Fused @0.4A) +24V (Fused @0.4A) Thermo Scientific 450iQ Instruction Manual...
Page 264: Analog I/O Board
Figure 9–4. Analog Voltage Inputs Table 9–3. Analog Voltage Inputs Assignment Terminal Number Signal Name Analog In 1 Analog GND Analog In 2 Analog GND Analog In 3 Analog GND Analog In 4 Analog GND 450iQ Instruction Manual Thermo Scientific...
Page 265: Analog Voltage Outputs
Current Output is 1000 Ω. All Voltage Outputs and Current Outputs are continuously monitored separately for accuracy. The Analog Outputs may be used to control and report parameters pertinent to the analyzers’ measured functions. Figure 9–5. Analog Voltage and Current Thermo Scientific 450iQ Instruction Manual...
Page 266: Table 9-4. Analog Voltage And Current Assignment
Note When calibrating the current output when using the 0-20 mA scale, the low level will be set to 4 mA due to the inability to adjust the actual current output to below zero. Calibrate the output channel full scale. 450iQ Instruction Manual Thermo Scientific...
Page 267: Analog Output Zero Calibration
2. Depending on the output type being used, select either Analog Out Zero Calibration (Voltage) or Analog Out 4.000 mA Calibration (Current). 3. A confirmation screen is presented. Select Continue to proceed with the calibration or Return to Previous Screen. Thermo Scientific 450iQ Instruction Manual...
Page 268 6. After making changes to the output levels, the commit button will turn green. To accept the changes, press the Commit button. To revert to the previous values, press the back button to return to the previous analog output calibration screen. 450iQ Instruction Manual Thermo Scientific...
Page 269: Analog Output Full Scale Calibration
2. Depending on the output type being used, select either Analog Out Full Scale Calibration (Voltage) or Analog Out 20.000 mA Calibration (Current). 3. A confirmation screen is presented. Select Continue to proceed with the calibration or Return to Previous Screen. Thermo Scientific 450iQ Instruction Manual...
Page 270 6. After making changes to the output levels, the commit button will turn green. To accept the changes, press the Commit button. To revert to the previous values, press the back button to return to the previous analog output calibration screen. 9-10 450iQ Instruction Manual Thermo Scientific...
Page 271: Digital I/O Board
The active state can be user defined in firmware. Logic Low Threshold: 0.8 V Logic High Threshold: 2.0 V Absolute allowable input voltages: -0.5 to 5.5 V Figure 9–6. Digital Inputs 9-11 Thermo Scientific 450iQ Instruction Manual...
Page 272: Table 9-5. Digital Inputs Terminal Assignment
Digital In 6 Digital In 7 Digital In 8 Digital In 9 Digital In 10 Digital In 11 Digital In 12 Digital In 13 Digital In 14 Digital In 15 Digital In 16 COMMON 9-12 450iQ Instruction Manual Thermo Scientific...
Page 273: Figure 9-7. Digital Relay Switches
Optional Equipment Connecting External Devices Digital Relay Switches Table 9–6 lists the digital relay switches. Maximum Voltage: 300 VDC Maximum Current: 500 mA Fuse: 800 mA Figure 9–7. Digital Relay Switches 9-13 Thermo Scientific 450iQ Instruction Manual...
Page 274: Table 9-6. Digital Relay Switch Assignment
Relay 2B Relay 3A Relay 3B Relay 4A Relay 4B Relay 5A Relay 5B Relay 6A Relay 6B Relay 7A Relay 7B Relay 8A Relay 8B Relay 9A Relay 9B Relay 10A Relay 10B 9-14 450iQ Instruction Manual Thermo Scientific...
Page 275: Figure 9-8. Valve Driver Outputs
Actual Output Voltage: 22−24 VDC Maximum Current: 300 mA Both positive and negative outputs are protected from over voltage and over current by 500 mA fuses. Figure 9–8. Valve Driver Outputs 9-15 Thermo Scientific 450iQ Instruction Manual...
Page 276: Table 9-7. Valve Driver Outputs Assignment
Valve Drive 6- Valve Drive 7+ Valve Drive 7- Valve Drive 8+ Valve Drive 8- Note Intended for 24 V valves. These outputs will also drive any DC load of 22−24 VDC, up to 300 mA. 9-16 450iQ Instruction Manual Thermo Scientific...
Page 277: Internal Zero/Span And Sample Valves
Assurance Handbook for Air Pollution Measurement Systems (Volume II). Figure 9–9 shows how this option is integrated with the 450iQ components. During normal operation, the pump draws zero air through the permeation oven and out the instrument exhaust. When performing a single point span check, the sample valve is energized, closing the sample valve, and the Perm valve is energized, opening the perm valve.
Page 278: Internal Permeation Span Source
Optional Equipment Internal Permeation Span Source Figure 9–9. Internal Permeation Span Source Flow Diagram 9-18 450iQ Instruction Manual Thermo Scientific...
Page 279: Permeation Tube Installation
Figure 9–10. Installing Glass Tube pt 1 3. Unfasten nut. Loosen thumb screw 2X full counter clock rotation. 4. Loosening the thumb screw deflates the o-ring making it easier to pull the thermistor assembly out. 9-19 Thermo Scientific 450iQ Instruction Manual...
Page 280 6. Push and gently twist tube dispersion glass upwards and seat into o- ring. Note Make sure PTFE tube and thermistor is inside the dispersion glass. Keep glass clean by using kimwipes or similar material to handle glass. 9-20 450iQ Instruction Manual Thermo Scientific...
Page 281 Internal Permeation Span Source Figure 9–12. Installing Glass Tube pt 3 7. Insert thermistor assembly into oven tube. Make sure it bottoms out. 8. Tighten thumb screw to expand o-ring for complete seal. 9. Fasten nut. 9-21 Thermo Scientific 450iQ Instruction Manual...
Page 282: Computation Of Concentrations
R = permeation rate in ng/min = flow rate of gas (scc/min) into the charcoal scrubber during span mode K = constant for the specific permeant = 24.45 / MW MW = molecular weight 9-22 450iQ Instruction Manual Thermo Scientific...
Page 283: Ptfe Particulate Filter
PTFE Particulate Filter PTFE Particulate A 5-10 micron pore size, two-inch diameter PTFE element is available for the 450iQ. This filter should be installed just prior to the Filter SAMPLE bulkhead. When using a filter, all calibrations and span checks must be performed through the filter.
Page 285: Appendix A Safety, Warranty, And Weee
• The service procedures in this manual are restricted to qualified service personnel only. Equipment Damage Do not attempt to lift the analyzer by the cover or other external fittings. This adjustment should only be performed by an instrument service technician. Thermo Scientific 450iQ Instruction Manual...
Page 286: Warranty
Products for which Buyer has requested warranty services are not covered by the warranty hereunder, Buyer shall pay or reimburse Seller for all costs of investigating and responding to such request at Seller's then 450iQ Instruction Manual Thermo Scientific...
Page 287 OR WRITTEN, WITH RESPECT TO THE PRODUCTS, INCLUDING WITHOUT LIMITATION ALL IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE. SELLER DOES NOT WARRANT THAT THE PRODUCTS ARE ERROR-FREE OR WILL ACCOMPLISH ANY PARTICULAR RESULT. Thermo Scientific 450iQ Instruction Manual...
Page 288: Weee Compliance
Symbol Description Marking of electrical and electronic equipment which applies to electrical and electronic equipment falling under the Directive 2002/96/EC (WEEE) and the equipment that has been put on the market after 13 August 2005. 450iQ Instruction Manual Thermo Scientific...
Page 289 Figure 1–1. 450iQ Front ..................1-2 Figure 1–2. 450iQ Flow Schematic ..............1-4 Figure 1–3. 450iQ Flow Schematic with Zero Span ........... 1-4 Figure 1–4. Bench Mount Assembly (dimensions in inches [mm]) ....1-7 Figure 1–5. Rack Mount Assembly (dimensions in inches [mm]) ...... 1-8 Figure 1–6.
Page 290 Figure 7–51. Removing and Replacing the Mode Valve pt 1 ......7-46 Figure 7–52. Removing and Replacing the Mode Valve pt 2 ......7-47 Figure 7–53. Converter DMC Assembly Remove ..........7-48 Figure 7–54. Replacing the Converter Assembly Board ........7-49 450iQ Instruction Manual Thermo Scientific...
Page 291 Figure 9–13. Installing Glass Tube pt 4 ............9-22 List of Tables Table 1–1. 450iQ Specifications ................. 1-5 Table 1–2. 450iQ Optional Permeation Oven Specifications ......1-6 Table 6–1. 450iQ Troubleshooting Guide ............6-1 Table 9–1. RS-232/RS-485 Port Terminal Assignment ........9-2 Table 9–2.
Page 293: Gnu Lesser General Public License
Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish); that you receive source code or can get it if you want it; Thermo Scientific 450iQ Instruction Manual...
Page 294 We call this license the "Lesser" General Public License because it does Less to protect the user's freedom than the ordinary General Public License. It also provides other free software developers Less of an advantage over competing non-free programs. These disadvantages are the reason we use 450iQ Instruction Manual Thermo Scientific...
Page 295 Library or any derivative work under copyright law: that is to say, a work containing the Library or a portion of it, either verbatim or with modifications and/or translated straightforwardly into another language. (Hereinafter, translation is included without limitation in the term "modification".) Thermo Scientific 450iQ Instruction Manual...
Page 296 Therefore, Subsection 2d requires that any application-supplied function or table used by this function must be optional: if the application does not supply it, the square root function must still compute square roots.) 450iQ Instruction Manual Thermo Scientific...
Page 297 5. A program that contains no derivative of any portion of the Library, but is designed to work with the Library by being compiled or linked with it, is Thermo Scientific 450iQ Instruction Manual...
Page 298 Library, with the complete machine-readable "work that uses the Library", as object code and/or source code, so that the user can modify the Library and then relink to produce a modified executable containing the modified Library. (It is 450iQ Instruction Manual Thermo Scientific...
Page 299 Give prominent notice with the combined library of the fact that part of it is a work based on the Library, and explaining where to find the accompanying uncombined form of the same work. Thermo Scientific 450iQ Instruction Manual...
Page 300 450iQ Instruction Manual Thermo Scientific...
Page 301 SHOULD THE LIBRARY PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION. 16. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR Thermo Scientific 450iQ Instruction Manual...
Page 302 You should also get your employer (if you work as a programmer) or your school, if any, to sign a "copyright disclaimer" for the library, if necessary. Here is a sample; alter the names: C-10 450iQ Instruction Manual Thermo Scientific...
Page 303 (iii) accessors; and (iv) small macros, templates and inline functions of five lines or less in length. Furthermore, you are not required to apply this additional permission to a modified version of the Library. C-11 Thermo Scientific 450iQ Instruction Manual...
Page 306 Beijing, China 100013 Fax: +44 1606 548711 Ph: +86 10 84193588 orders.aqi@thermofisher.com india@thermofisher.com sales.epm.uk@thermofisher.com info.eid.china@thermofisher.com Find out more at thermofisher.com/450iQ © 2018 Thermo Fisher Scientific Inc. All trademarks are the property of Thermo Fisher Scientific and its subsidiaries unless otherwise specified. EPM_119017-00...

Thermo Scientific 450iQ Instruction Manual

Table of Contents

Chapter 3 Operation

Chapter 4 Calibration

Chapter 5 Maintenance

Chapter 6 Troubleshooting

Chapter 7 Servicing

Chapter 8 System Description

Chapter 9 Optional Equipment

Appendix A Safety, Warranty, and WEEE

Appendix B Quick Reference

Quick Links

Chapters

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Thermo Scientific 450iQ

Summary of Contents for Thermo Scientific 450iQ
