V. MAIN SCREEN DESCRIPTION
The control is carried out by means of buttons located under the display.

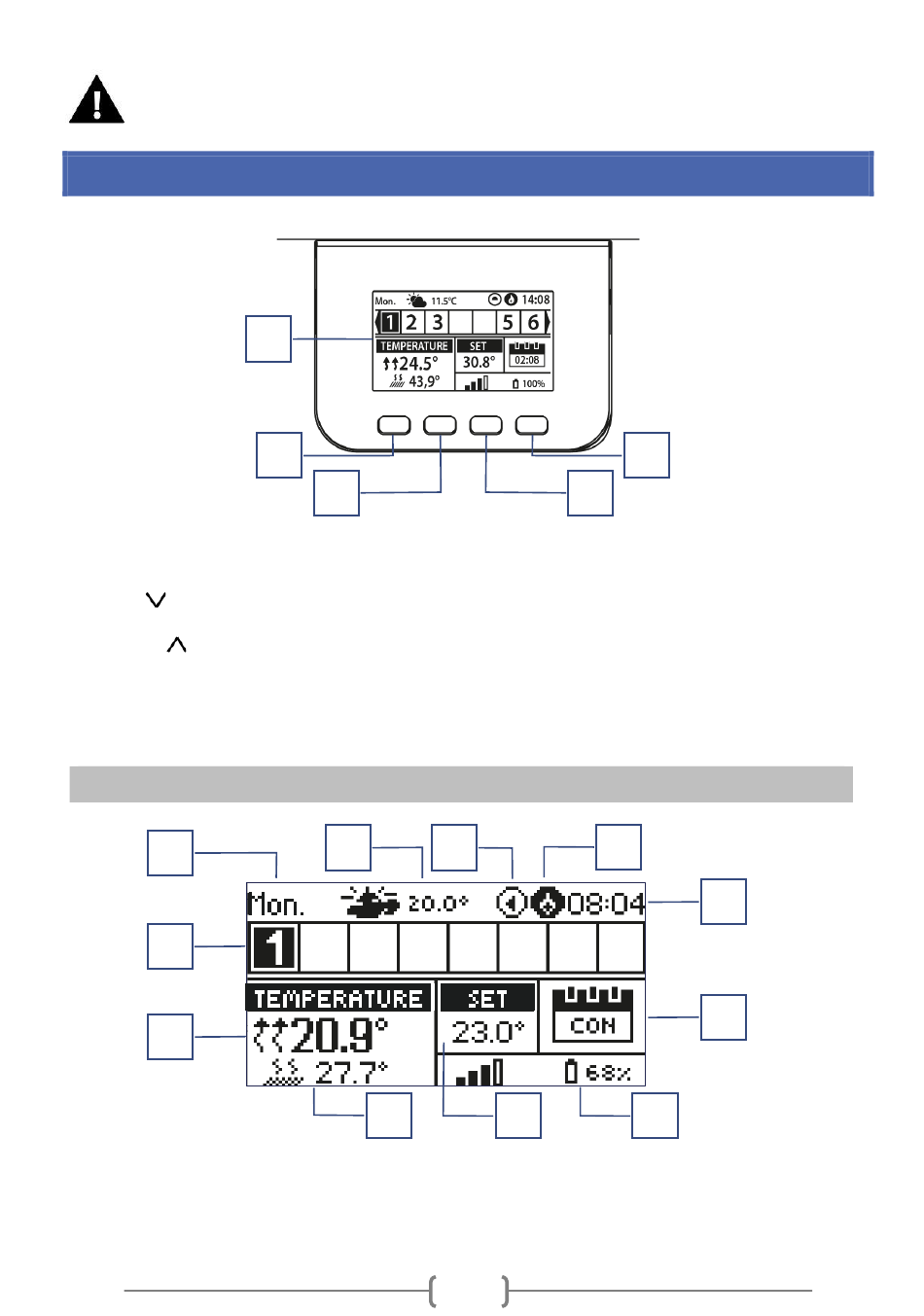

1. Controller display.
2. MENU button - enters the controller menu, confirming the settings.
3. button - used to browse the menu functions, decrease the value of the edited parameters. This button also
switches the operation parameters between the zones.
4. button - used to browse the menu functions, increase the value of the edited parameters. This button
also switches the operation parameters between the zones.
5. EXIT button - EXIT from the controller menu, cancel the settings, toggle the screen view (zones, zone).
1
11
10
1. Current day of the week
2. Outside temperature
3. Pump running
1
2
3
Sample screens - ZONES
2
9
4
4
3
8
14
5
5
6
7
