- Page 1 EU-T-3.2...
-
Page 2: Table Of Contents
Menu button functions ............................15 2.1. Cooling/heating ............................. 15 2.2. Built-in sensor calibration ..........................15 2.3. Floor sensor calibration ..........................15 2.4. Software version ............................16 2.5. Default settings .............................. 16 How to register EU-T-3.2 ............................17 Technical data ................................18 JG.2021.07.17... -
Page 3: Safety
EU-T-3.2 SAFETY Before using the device for the first time the user should read the following regulations carefully. Not obeying the rules included in this manual may lead to personal injuries or controller damage. The user’s manual should be stored in a safe place for further reference. -
Page 4: Device Description

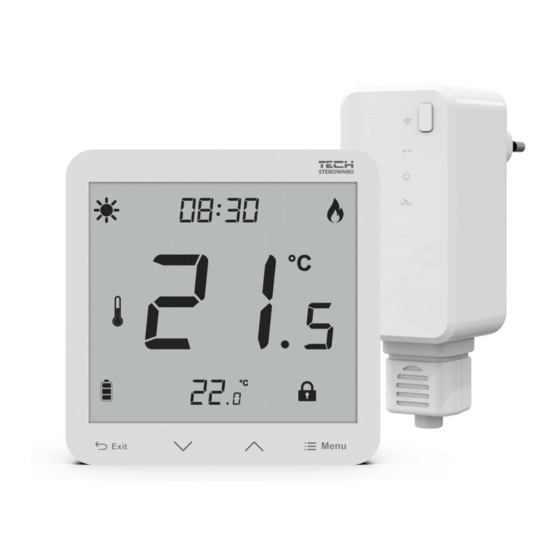

TECH DEVICE DESCRIPTION The EU-T-3.2 room regulator is intended for controlling the heating device. Its main task is to maintain the pre-set flat/floor temperature by sending a signal to the heating device (contact closing) or the main controller which controls the actuators, when the room/floor temperature is below the pre-set value. -
Page 5: How To Install The Controller
EU-T-3.2 III. HOW TO INSTALL THE CONTROLLER NOTE The device should be installed by a qualified person. - Page 6 TECH In order to mount the regulator on the wall, screw the rear cover onto the wall, insert batteries and slide the device into the cover.
- Page 7 EU-T-3.2 The EU-T-3.2 room regulator - connection diagram Use the diagram below to connect the regulator - a two-wire communication cable should be connected to the appropriate connectors on the receiver. Floor sensor...
- Page 8 TECH The room regulator should be connected to the heating device with a two-core cable. The cable connection between both devices is shown in the diagram below:: NOTE The regulator is powered with batteries - it is recommended to check the batteries from time to time and replace them at least once every heating season.
-
Page 9: Wireless Controller Receiver
15 minutes. FIRST START-UP In order for the EU-T-3.2 controller to work properly, it is necessary to follow these steps when starting the device for the first time: 1. Insert the batteries - in order to to do it, remove the front cover of the controller. -
Page 10: How To Use The Controller
PRINCIPLE OF OPERATION The EU-T-3.2 room regulator is designed to maintain the pre-set room temperature by sending a signal to the heating device or the main controller when the pre- set room temperature has been reached. After receiving such a signal, the heating device turns off. -
Page 11: Main Screen Description
EU-T-3.2 1. Display 2. EXIT – press this button to display the room temperature/ floor temperature or to disable manual mode. – press this button to decrease the edited value. – press this button to increase the edited value. 5. MENU – hold this button to enable manual mode and to set calibration. Press the MENU button to move on to edit next parameters. -
Page 12: Controller Functions
TECH VIII. CONTROLLER FUNCTIONS The user navigates in the menu structure using touch buttons: EXIT, and MENU. In order to edit particular parameters, press MENU. By pressing MENU the user may preview the controller functions. The edited parameter is flashing. Use the buttons to change the parameter settings. -
Page 13: Day From
EU-T-3.2 1.3. DAY FROM This function enables the user to define the exact time of entering the day mode. To configure this parameter, press MENU until a flashing icon appears on the screen. to set the time of day mode activation. -
Page 14: Floor Heating On/Off
TECH 1.7. FLOOR HEATING ON/OFF This function is used to enable (ON) or disable (OFF) the underfloor heating, with the use of When the underfloor heating is enabled (icon ), the user may configure the following parameters: Maximum temperature - in order to set the maximum floor temperature, press MENU until the floor heating icon appears on the screen. -
Page 15: Button Lock On/Off
EU-T-3.2 1.8. BUTTON LOCK ON/OFF It is possible to activate button lock. In order to do it, press the MENU button until the icon appears on the screen and select ON. In order to unlock the screen, press and hold any button. -
Page 16: Software Version
TECH 2.4. SOFTWARE VERSION After pressing the MENU button the user may check the software version number. The number is necessary while contacting the service staff. 2.5. DEFAULT SETTINGS This function is used to restore factory settings. In order to do it, change the flashing digit 0 to 1. -
Page 17: How To Register Eu-T-3.2
Once registration has been activated in EU-MW-3, it is necessary to press the registration button on the EU-T-3.2 regulator within 2 minutes. When the time is over, the pairing attempt will fail. the EU-T-3.2 regulator screen displays SUC and all the control lights in EU-MW-3 are flashing simultaneously - the registration has been successful; ... -
Page 18: Technical Data
TECH TECHNICAL DATA EU-T-3.2 C ÷ 35 Temperature adjustment range 2xAAA 1,5V batteries Power supply ± 0,5 Measurement error 868MHz Operation frequency EU-MW-3 230V ± 10% / 50Hz Power supply 5°C ÷ 50°C Operation temperature <1W Maximum power consumption 230V AC / 0,5A (AC1) * Potential-free cont. - Page 19 EU-T-3.2 Hereby, we declare under our sole responsibility that EU-T-3.2 manufactured by TECH STEROWNIKI, head-quartered in Wieprz Biała Droga 31, 34-122 Wieprz, is compliant with Directive 2014/53/EU of the European parliament and of the Council of 16 April 2014 on the harmonisation of the laws of the Member States relating to the making available on the...
