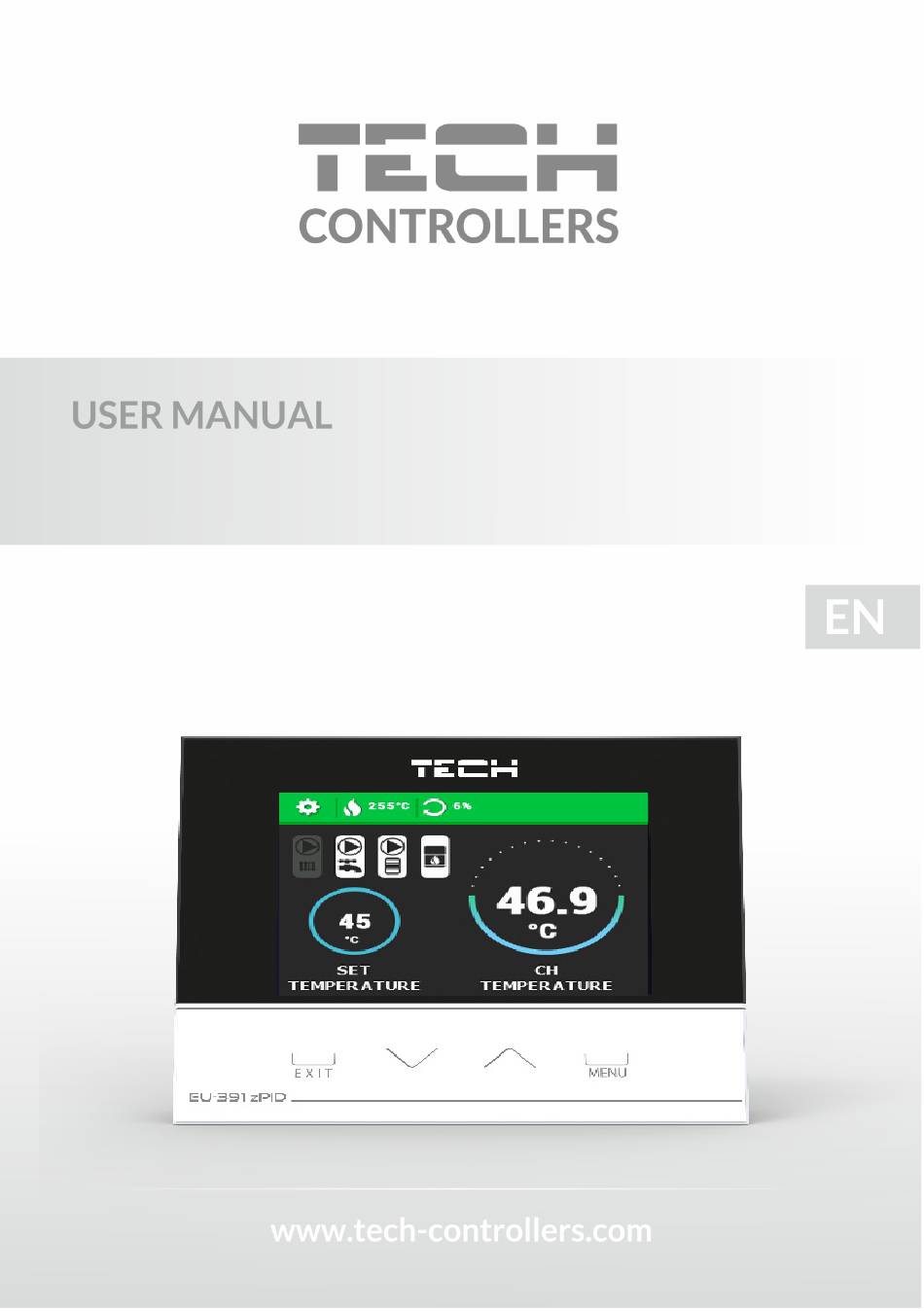

- Page 1 EU-391 zPID...
- Page 2 User’s Manual...
-
Page 3: Table Of Contents
EU-391 z PID Table of contents Safety Description III. Installation How to use the controller Principle of operation - operation stages Controller menu VI.a) Block diagram VI.b) Fire-up (Throttle ON/OFF) VI.c) Manual mode VI.d) Operation modes VI.e) CH settings VI.f) Additional pump settings VI.g) Throttle calibration... -
Page 4: Safety
User’s Manual I. Safety Before using the device for the first time the user should read the following regulations carefully. Not obeying the rules included in this manual may lead to personal injuries or controller damage. The user’s manual should be stored in a safe place for further reference. -
Page 5: Description
EU-391 z PID Description EU–391 temperature regulator with a throttle is intended for controlling the combustion process in a home fireplace. It controls the CH pump, additional pumps (DHW or floor pump), throttle and a voltage-free output (controlling an additional device). Functions offered by the controller: •... -
Page 6: Installation
User’s Manual III. Installation The controller should be installed by a qualified person. WARNING Risk of fatal electric shock from touching live connections. Before working on the controller switch off the power supply and prevent it from being accidentally switched on. WARNING Incorrect connection of the wires may lead to controller damage! - Page 7 EU-391 z PID...
-
Page 8: How To Use The Controller

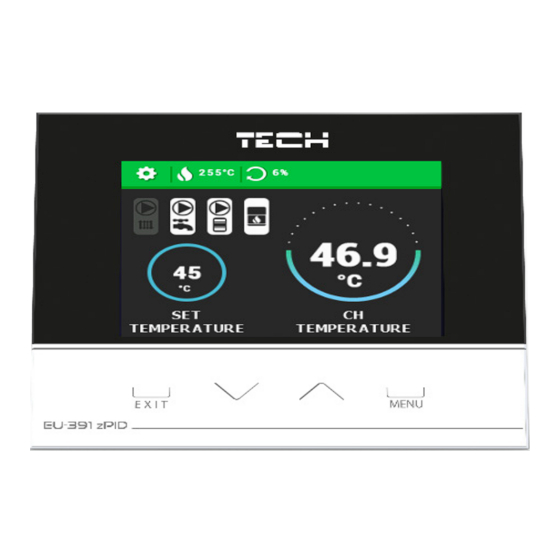

User’s Manual IV. How to use the controller 1. Controller display 2. EXIT button - in the main screen view it is used to open up the screen view selection panel. In the menu it is used to exit the menu and cancel the settings. 3. - Page 9 EU-391 z PID Press EXIT button to select the operating parameters to be displayed: The user may choose from the following screen views: • CH temperature • Floor temperature - DHW temperature. (alternatively, depending on the type of additional pump selected) •...
- Page 10 User’s Manual Controller operation modes - the icons are explained in the table below: Icon Mode Icon Mode Icon Mode Flue gas sensor Fireplace damped Supervision test Alarm Fire-up Operation Fire-up failure Damping Blow-by 2. Current flue gas temperature 3. Degree of throttle opening 4.
-
Page 11: Principle Of Operation - Operation Stages
EU-391 z PID Principle of operation - operation stages 1. Fire-up This phase starts when the fire-up function is selected in the controller menu, and lasts until CH temperature reaches at least 400C and the flue gas temperature reaches at least 1000C (default fire-up threshold), provided that the temperature does not drop below these values for 4 minutes (default fire-up time). -
Page 12: Controller Menu
User’s Manual Controller menu VI.a) Block diagram Due to a wide range of functions offered by the controller, the menu is divided into Main Menu and Fitter’s menu. -
Page 13: Vi.b) Fire-Up (Throttle On/Off)
EU-391 z PID VI.b) Fire-up (Throttle ON/OFF) The aim of this function is to achieve optimum flame in the shortest time possible.The fire- up effectiveness is enhanced by throttle operation. This phase lasts until CH temperature reaches a pre-defined value required to enter the operation mode. Once the controller enters operation mode, instead of Fire-up function, Throttle ON/OFF appears in the menu. -
Page 14: Vi.e) Ch Settings
User’s Manual VI.e) CH settings CH settings enable the user to activate (or deactivate) voltage-free contact and buffer sensor. If buffer sensor is active (Switching on buffer option selected), the pump is enabled when CH temperature exceeds activation temperature and is higher than buffer temperature by hysteresis value. -
Page 15: Vi.f) Additional Pump Settings
EU-391 z PID VI.f) Additional pump settings Additional pump settings enable the user to select the type of additional pump : floor pump / DHW pump. The type of pump influences the range of temperature settings and protections in case of alarms. In the case of DHW pump, the user may change its activation temperature. -
Page 16: Vi.g) Throttle Calibration
User’s Manual VI.g) Throttle calibration Throttle calibration is performed automatically every few hours (and every time the controller is switched on). This function is used to activate throttle calibration manually. Once this option is selected, the throttle moves slightly above its current position, reaches ‘0’ position and moves back to its original position. -
Page 17: Vi.k) Factory Settings
EU-391 z PID VI.k) Factory settings The controller is pre-configured for operation. However, the settings should be customized to the user’s needs. Return to factory settings is possible at any time. When the factory settings option is activated, all customized settings of fireplace controller are lost and replaced with the manufacturer’s settings. - Page 18 User’s Manual VI.l.2) Internet module NOTE This type of control is available only after purchasing and connecting an additional controlling module ST-505 which is not included in the standard controller set. Internet module is a device enabling the user remote control of the CH boiler via the Internet at www. emodul.pl.
- Page 19 EU-391 z PID EU Declaration of conformity Hereby, we declare under our sole responsibility that EU-391 z PID manufactured by TECH STEROWNIKI, head-quartered in Wieprz Biała Droga 31, 34-122 Wieprz, is compliant with Directive 2014/35/EU of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of Member States relating to the making available on the market of electrical equipment designed for use within certain voltage limits (EU OJ L 96, of 29.03.2014, p.
