MAIN SCREEN DESCRIPTION

The device is controlled using the touch screen.

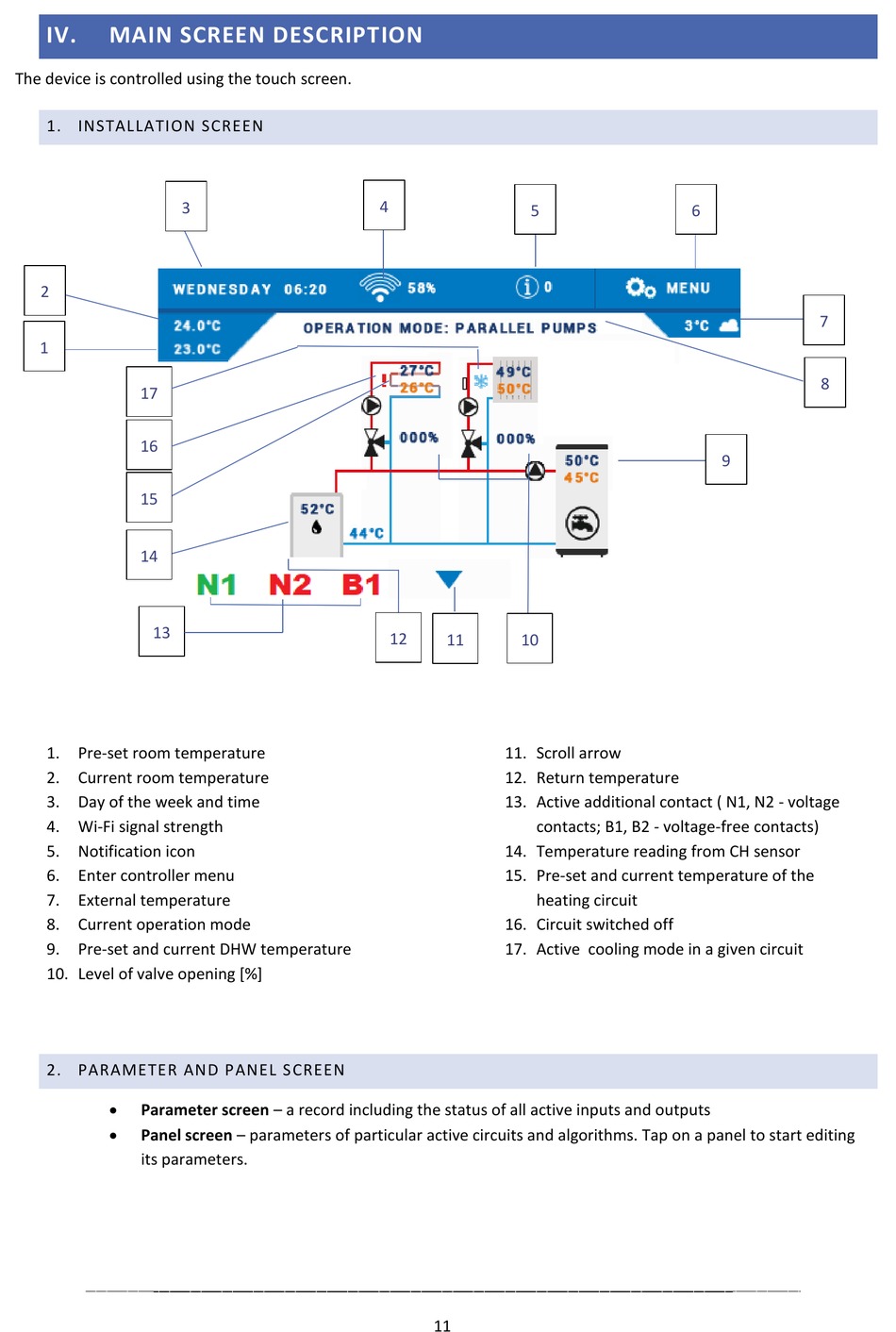

1. INSTALLATION SCREEN

3
2
1
17
16
15
14
13
1. Pre-set room temperature
2. Current room temperature
3. Day of the week and time
4. Wi-Fi signal strength
5. Notification icon
6. Enter controller menu
7. External temperature
8. Current operation mode
9. Pre-set and current DHW temperature
10. Level of valve opening [%]

2. PARAMETER AND PANEL S CREEN


Parameter screen – a record including the status of all active inputs and outputs

Panel screen – parameters of particular active circuits and algorithms. Tap on a panel to start editing
its parameters.
4
5
12
11 10
11. Scroll arrow
12. Return temperature
13. Active additional contact ( N1, N2 - voltage
contacts; B1, B2 - voltage-free contacts)
14. Temperature reading from CH sensor
15. Pre-set and current temperature of the
heating circuit
16. Circuit switched off
17. Active cooling mode in a given circuit
11
6
7
8
9
