IV. MAIN SCREEN DESCRIPTION
The device is controlled using the touch screen.

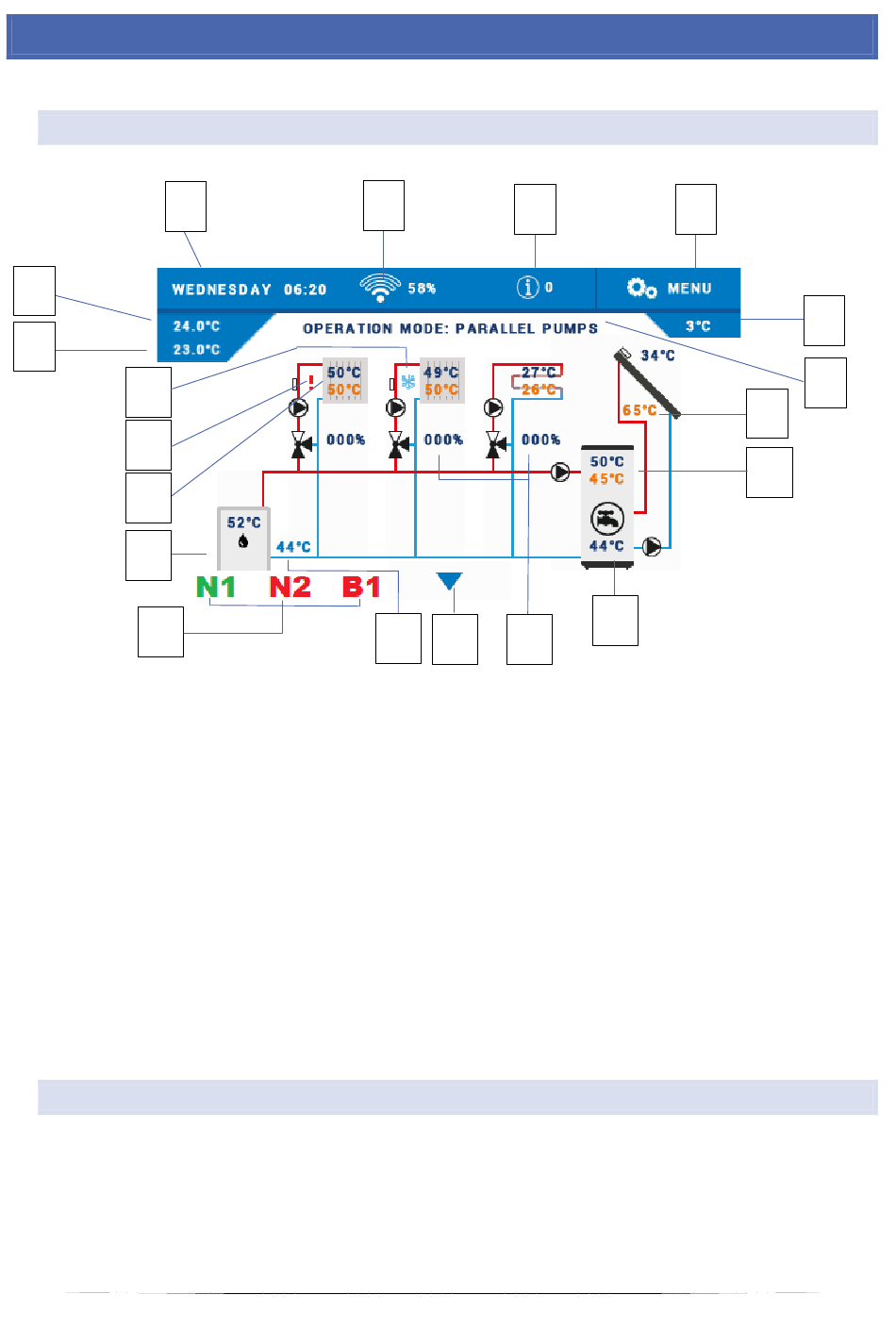

1. INSTALLATION SCREEN

3
2
1
19
18
17
16
15
1. Pre-set room temperature
2. Current room temperature
3. Day of the week and time
4. Wi-Fi signal strength
5. Notification icon
6. Enter controller menu
7. External temperature
8. Current operation mode
9. Solar collector temperature
10. Pre-set and current DHW temperature
11. Accumulation tank temperature

2. PARAMETER AND PANEL SCREEN

•
Parameter screen – a record including the status of all active inputs and outputs
•
Panel screen – parameters of particular active circuits and algorithms. Tap on a panel to start editing
its parameters.
4
5
14
13 12
12. Level of valve opening [%]
13. Scroll arrow
14. Return temperature
15. Active additional contact ( N1, N2 - voltage
contacts; B1, B2 - voltage-free contacts)
16. Temperature reading from CH sensor
17. Pre-set and current temperature of the
heating circuit
18. Circuit switched off
19. Active cooling mode in a given circuit
