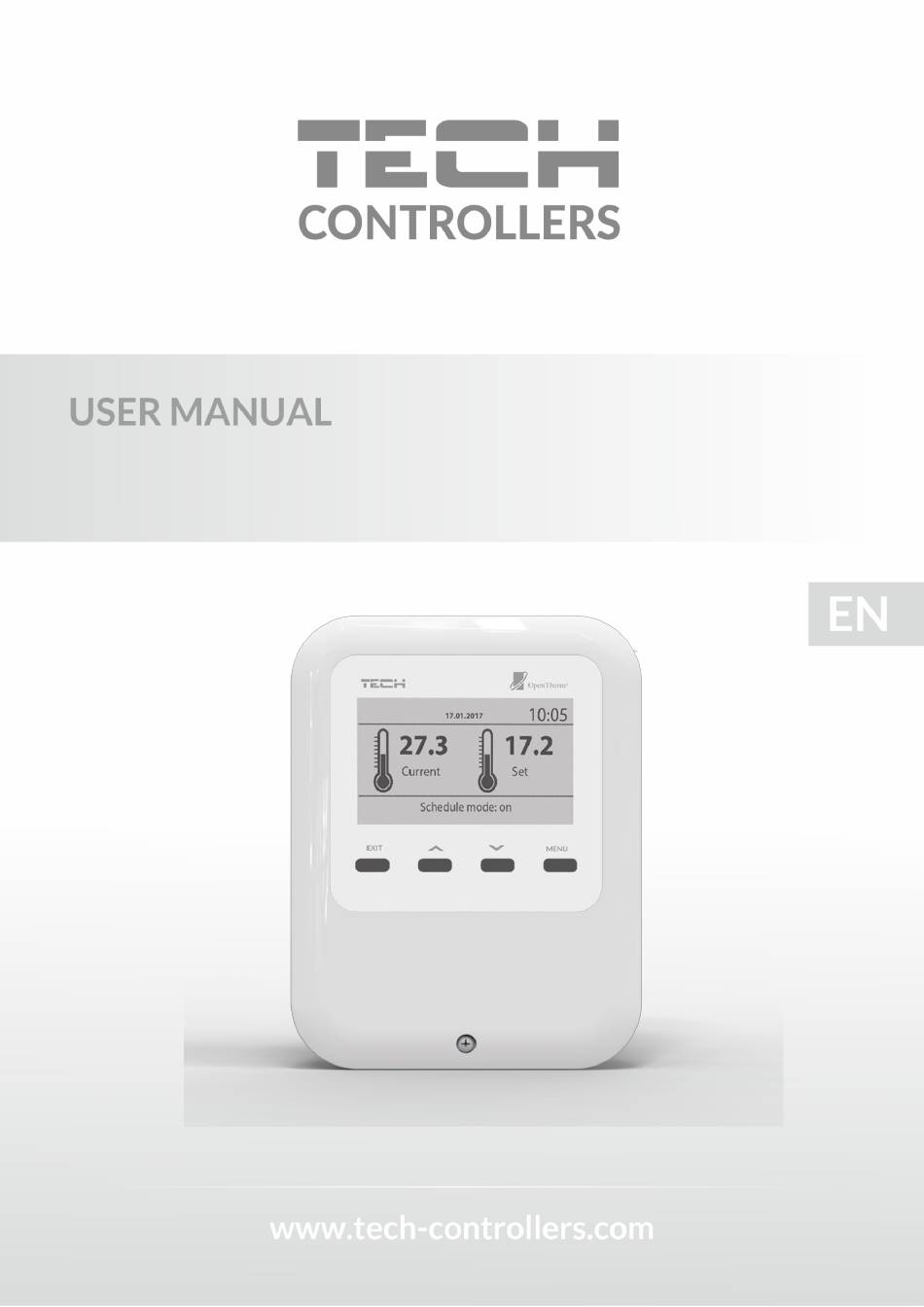

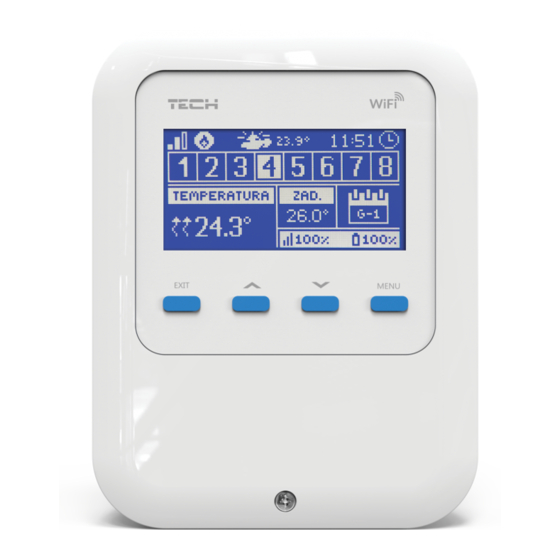

  • Page 1 EU-WiFi OT...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Safety ..................................4 Device description ..............................5 III. First start-up ................................5 How to configure internet connection ........................6 External weather temperature sensor - wired ......................6 How to configure external sensor ..........................7 How to configure room sensors/room regulators ....................7 Main screen description ............................
  • Page 3 Service menu ................................13 Controlling heating system via website ........................14 Home tab ................................15 Menu tab ................................15 Alarm log tab ................................16 Statistics tab ................................16 Settings tab ................................17 VII. Software update ..............................18 VIII. Technical data ................................18 Protections and alarms ............................

  • Page 4: Safety

    SAFETY Before using the device for the first time the user should read the following regulations carefully. Not obeying the rules included in this manual may lead to personal injuries or controller damage. The user’s manual should be stored in a safe place for further reference.

  • Page 5: Device Description

    II. DEVICE DESCRIPTION Its main task is to maintain the pre-set temperature in the The regulator is intended for controlling the heating device. zone by sending a signal to the heating device when the zone needs heating to reach the desired temperature Controller functions: ...

  • Page 6: How To Configure Internet Connection

    Pictorial diagram presenting communication with other devices in the system: HOW TO CONFIGURE INT ERNET CONNECTION The regulator has a built-in Internet module which enables the user to monitor the heating system online. First, connect to the Internet selecting the WiFi network in <WiFi network selection> in the controller menu. Internet module parameters such as IP address, IP mask, Gate address may be set manually or by activating DHCP option (default ON).

  • Page 7: How To Configure External Sensor

    HOW TO CONFIGURE EXT ERNAL SENSOR The user may choose the type of external sensor used (Main menu > Heating > Floor sensor). It is necessary to register wireless sensors by selecting <Registration> in the main controller and pressing the communication button on the external sensor (one quick press).

  • Page 8: Main Screen Description

    IV. MAIN SCREEN DESCRIPTION The user may change the screen view using <Screen view> option in Settings > Screen settings or by pressing EXIT button in the main screen view.  WiFi 1. Active WiFi network 2. Current day of the week 3.
  • Page 9 1. Current CH boiler temperature 2. Current external temperature 3. Current time 4. Pre-set CH boiler temperature 5. Active time heating program  Domestic hot water 1. Current DHW temperature 2. Icon indicating DHW heating 3. Current external temperature 4. Current time 5.

  • Page 10: Controller Functions

    V. CONTROLLER FUNCTIONS BLOCK DIAGRAM – CONTROLLER MENU Party mode Economical mode Holiday mode Time heating program Pre-set room temperature Heating Reduced pre-set room temperature Hysteresis Room sensor Weather sensor Heating curve Operating program Active once Domestic hot water Pre-set DHW temperature DHW time program Registration WiFi module...

  • Page 11: Time Heating Program

    2.4. TIME HEATING PROGRAM This program is used to define the time periods when the <Pre-set room temperature> will apply. The user may copy the settings into other days of the week. NOTE The user may set 4 time periods for one day. Outside these periods <Reduced pre-set room temperature> will apply.

  • Page 12: Weather Sensor

    2.9. WEATHER SENSOR  Calibration – Room sensor calibration is performed while mounting or after it has been used for a long time, if the zone temperature displayed differs from the actual temperature. Calibration range is from -10⁰C to +10⁰C with the accuracy of 0,1⁰C.

  • Page 13: Wifi Network Selection

    4.2. WIFI NETWORK SELEC TION This submenu presents a list of available networks. Select the network and confirm by pressing MENU. If the network is secured, it is necessary to enter the password. Use + and – to select each letter of the password and press EXIT to complete the procedure.

  • Page 14: Controlling Heating System Via Website

    CONTROLLING HEATING SYSTEM VIA WEBSITE The website https://emodul.eu offers a variety of ways to control the heating system operation. It is necessary to create user’s account in order to be able to use all these functions: Creating a new account at emodul.eu Once logged in, go to Settings tab and select Register module.

  • Page 15: Home Tab

    HOME TAB Home tab displays the main screen with tiles illustrating the current status of particular heating system devices (burner, pump), current CH boiler temperature, alarm (the tile is not displayed if there are no active alarms in the controller) as well as manufacturer and software details.

  • Page 16: Alarm Log Tab

    ALARM LOG TAB Alarm log tab enables the user to view the alarms which occurred in the controller in a given period of time. Alarm log view STATISTICS TAB Statistics tab enables the user to view the temperature values for different time periods e.g. 24h, a week or a month. It is also possible to view the statistics for the previous months: Example chart...

  • Page 17: Settings Tab

    SETTINGS TAB While editing the settings, the user may select the following tabs: Account, Module, Notifications and Tiles. Account tab enables the user to change the e-mail address and the account password. Module tab enables the user to register a new module, change the module name, country, postcode and time zone. It is possible to download current settings.

  • Page 18: Software Update

    VII. SOFTWARE UPDATE NOTE Software update shall be conducted only by a qualified fitter. After the software has been updated, it is not possible to restore previous settings. In order to install new software, the controller must be unplugged from the power supply. Next, insert the memory stick with the new software into the USB port.
  • Page 19 EU DECLARATION OF CONFORMITY Hereby, we declare under our sole responsibility that EU-WiFi OT manufactured by TECH STEROWNIKI, head-quartered in Wieprz Biała Droga 31, 34-122 Wieprz, is compliant with Directive 2014/53/EU of the European parliament and of the Council of 16 April 2014 on the harmonisation of the laws of the Member States relating to the making available on the...
