Summary of Contents for Fnirsi FNB58

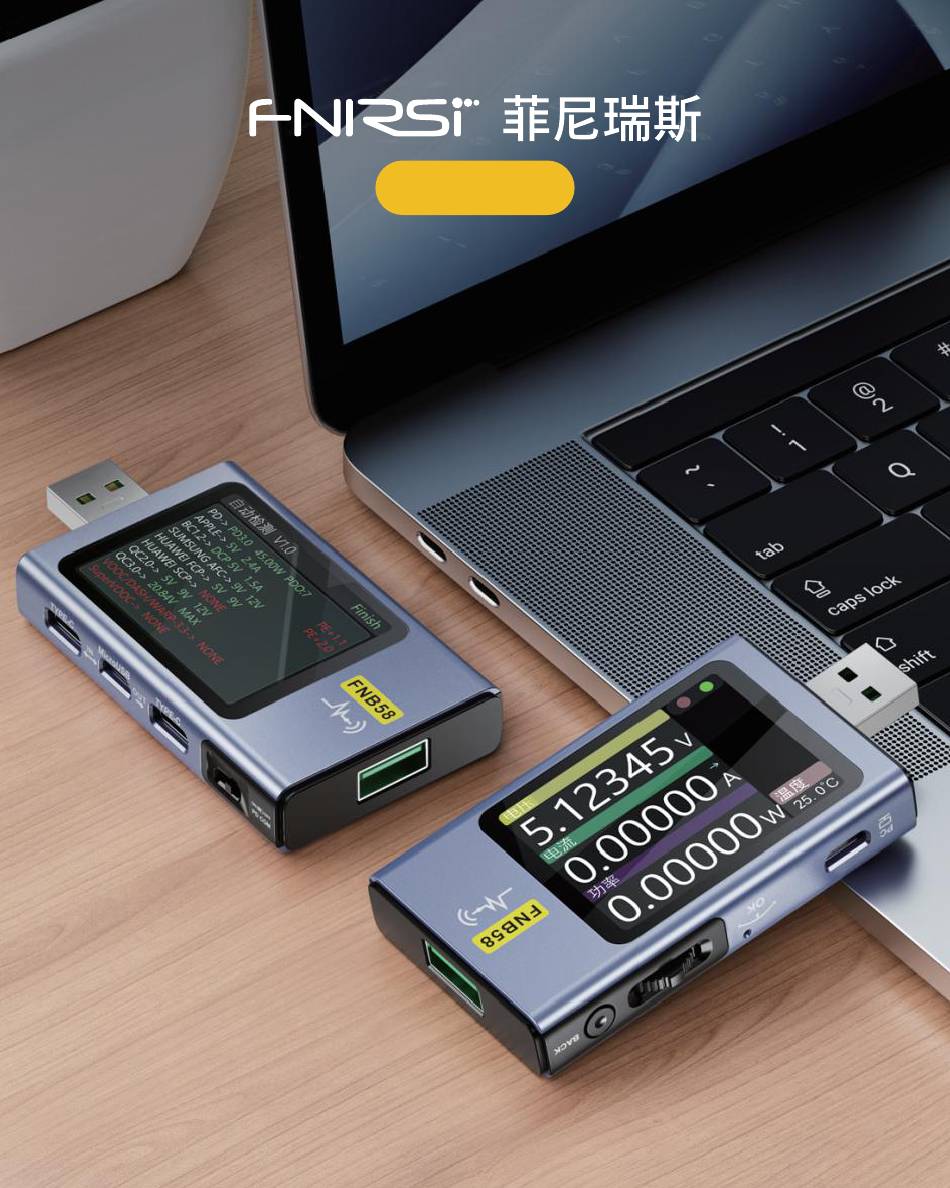

- Page 1 FNB58 USB Fast charge tester...
- Page 2 Catalog 4.0.1 Voltage and Current 4.0.2 Fast charge trigger 4.0.3 Wire identification class 4.0.4 Miscellaneous 7.0.1 Concise page 7.0.2 monitoring page 7.0.3 Waveform page 7.0.4 Application page...
- Page 3 8.0.1 Automatic detection 8.0.2 PD Trigger 8.0.3 QC 2.0 Trigger 8.0.4 QC 3.0 Trigger 8.0.5 FCP Trigger 8.0.6 SCP Trigger 8.0.7 AFC Trigger 8.0.8 VOOC/WARP Trigger 8.0.9 SVOOC 1.0/SVOOC 2.0 Trigger 9.0.1 Energy statistics 9.0.2 Battery capacity calculation 9.0.3 Offline recording 10.0.1Cable resistance detection 10.0.2 PD Listener 10.0.3 PD Converter...
- Page 4 10.0.6 Soft DASH Cable 10.0.7Soft APPLE 2.4A accelerator 11.0.1 General 11.0.2 Record 11.0.3 Trigger 11.0.4 System 11.0.5 About...
- Page 5 1、 Versions and Updates As instrument products have many functions and frequent software andhardware updates, the manual may be updated at any time,please be aware.Please get the latest update information on the official website. 2、 Overview The FNB58USB tester is a high-reliability, high-safety USB voltage andcurrent detection meter and a mobile communication terminal fast chargingtrigger.It has a 2.0-inch full-color ultra-wide viewing angle TFT LCD display, integrated USB-A, Micro-USB, Type-C interface.
- Page 6 4、 Performance description 4.0.1 Voltage and Current 1.The highest six-digit display of voltage， current and power， the highestresolution is 0.00001 (V/A/W). 2.10 sets of switchable capacity， power,and time statistics; 3.l set of voltage and current curve records， maximum support 9 hours 4.Support low-speed waveform (voltage，...
- Page 7 5、 Structure appearance l.Input monitoring port: USB-A,5-PIN male; 2.Input monitoring port: TYPE-C， 24-PIN female socket; 3.Input monitoring port: Micro-USB,5-PIN female socket; 4.output monitoring port: TYPE-C， 24-PINfemale socket; 5.PD communication switch; 6.output monitoring port: USB-A,5-PINfemale; 7.touch switch: BACK button; 8.Multi-function switches: left button， middle button， rightbutton; 9.PC connection port: Micro-USB,5-PIN female socket ②...
- Page 8 6、 Technical index Accuracy:±(a%(‰)reading + number of words) Index Range Resolution Accuracy 0.00001V ±(0.2‰+2) Monitor voltage 4～28V 0.00001A ±(0.5‰+2) Monitor current 0～7A Monitor power 0～120W 0.00001W ±(0.5‰+2) Load equivalent 0～9999.9Ω 0.0001Ω ±(0.5‰+2) internal resistance D+/D- voltage 0～3.3V 0.001V ±(1.0%+2) ℃ 1℃...
- Page 9 7、 Main page ●Except for special instructions， the left and right buttons switchpages/menus， the middle button confirms， and the BACK button cancels/returns. ●Long press the BACK button to turn off the screenbacklight,all pages are valid. 7.0.1 Concise page ●Only the three key parameters of voltage， current and power are displayed,indicates the direction of current.
- Page 10 7.0.3 Waveform page ●Long press the left button: time base minus. ●Long press the right button: time base plus ●Click the middle button: start/pause drawing the curve. ●Long press the middle button: switch modes. 7.0.4 Application page Application ●Fast Charge ●Statistics ●Toolbox ●Settings...
- Page 11 8.0.1Automatic detection In the fast charging interface, select automatic detection and press the middle button to enter ●In this mode, The meter tries to trigger various protocols in turn, Display the test results on the screen,Red is not supported,Green issupport, In the process of testing, Such as measuring PD chargers,It is normal to restart and continue testing.
- Page 12 8.0.3 QC 2.0 Trigger In the fast charge interface, select QC2.0 and press the middle button to enter ●In QC2.0 trigger mode， use the left and right keys to select the triggervoltage,click the middle button to confirm the trigger voltage, and click BACK to pop up the exit/return menu selection window.
- Page 13 8.0.7 AFC Trigger The operation method is the same as QC2.0 trigger. 8.0.8 VOOC/WARP Trigger The operation mode is the same as QC3.0 trigger 8.0.9 SVOOC 1.0/SVOOC 2.0 Trigger Supervooc requires a load greater than 500mA on the back end todeceive,And SuperVooc only has a voltage of 10.5V, Therefore，...
- Page 14 9.0.2 Battery capacity calculation 1. Set the battery voltage and energy conversion efficiency to calculate the battery capacity. Click the middle button to move the green color among the three items of group number, battery voltage and conversion efficiency. Which item is green, and the value of which item can be changed by clicking the left/right button.
- Page 15 ●Analog APPLE 2.4A 10.0.1Cable resistance detection FNB58 uses the differential pressure method to measure the internal resistance of the cable, which needs to be used with a constant current load. Click the middle button: use the current voltage and current value as the reference value.
- Page 16 10.0.2 PD Listener When using PD listener,Need to turn the PD communication switchtoON,And use a power supply not greater than 16V (usually 5V) and a Micro-USB cable,Connect the PC online port,Provide external power. Use the PD listener function,Need 2 C-C cables,Connect the chargerand PD electrical appliances from the Type-CIN interface and Type-COUTinterface respectively.When the connection is normal and the PD protocoltriggered by the PD consumer is captured,The page is represented asshown below.
- Page 17 10.0.3 PD Converter ●This function is used for only QC2.0 charger, But want to supply power to PDappliances. ●Before use, Switch the PD communication switch to ON, Then enter the PDprotocol conversion mode,after entering,Plug in PD appliances, You can performPD fast charge.
- Page 18 After entering this function,From the output Click the middle button to Type-C interface,Plug in thecable,You can switch to the figure below: read the message,As shown below: The two pictures above,The picture shows the parsed data,The secondpicture is the original data,Users can consult the relevant informationof the PD agreement by themselves,Do your.
- Page 19 ●If,The phone normally needs to use a USB-A->Type-C DASH cable,Butthere is no such thread in hand,Only FNB48 tester and a C-C cable,Butwantto trigger VOOC/WARP flash charge,At this time, the function of simulating DASH cable can be started,And use the C-C cable to connecttothe phone, You can perform VOOC/WARP flash charging.
- Page 20 11.0.1 General Left and right keys to select and press the middle key to enter various function options. ●Display brightness： Set the screen brightness, the adjustable range is 1-100. ●Standby brightness： Set the standby screen brightness,Adjustable range 0-100 level, whensetto 0,Enter the standby state and turn off the screen directly. ●Standby time：...
- Page 21 11.0.3 Trigger Left and right keys to select and press the middle key to enter various function options. ●Trigger time:Set the time to manually trigger the protocol. ●Monitor mask PD CRC:After opening,When PD is monitoring,CRC messages can be masked,Off by default. ●Boot simulation DASH:After it is turned on, turn on the analog DASH cable function atboot,which is turned off...
- Page 22 Production information...
