If the field "On Timer" is checked, the gateway sends the KNX command cyclically;
In the field "Poll Time" the delay in ms between two KNX commands is defined (if "On Timer" is checked);
In the field "Position" insert the address of the internal array where placing the information;
In the field "Bit Mode" insert the start bit of the first byte of the field "Position" where start to insert the data read;
In the field "Lenght" the dimension of the KNX message is defined;
In the field "Mnemonic" the description for the request is defined.
Note:
If the field "On change" is checked and the "Poll Time" is different from 0, the converter sends the KNX command cyclically and also
when the data is changed.
Note:
If the field "OnCMD", "OnChange" and "OnTimer" are not checked, the converter only sniffs the bus in order to monitor the status of
the KNX message.

XML FILE:

By Pressing the "PROFINET XML" button from the main window for
SW67818 (Fig. 2) it is possible to generate the xml file to be imported
into the master PROFINET.

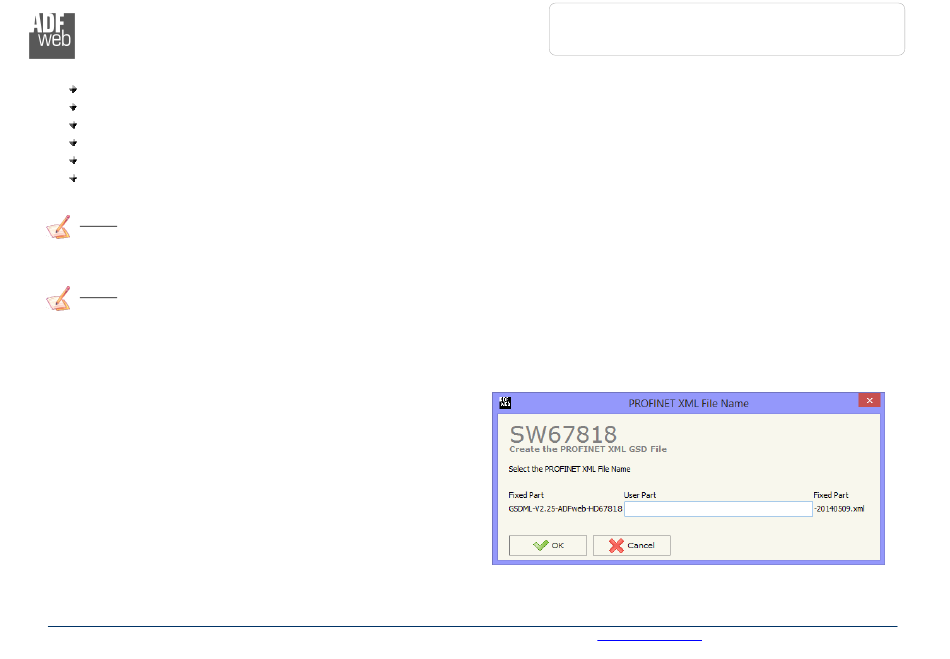

Figure 5: "PROFINET XML File Name" window
