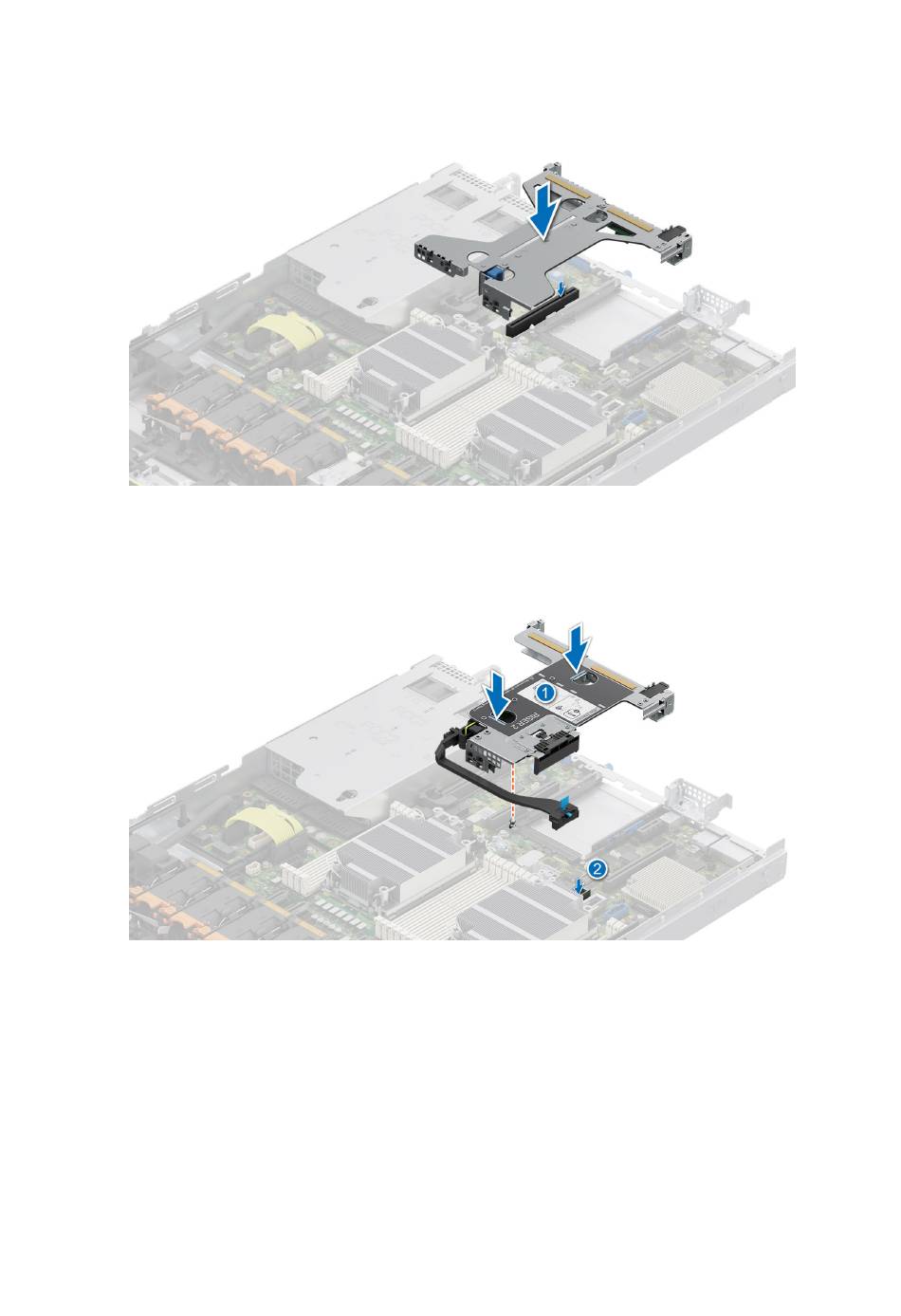

Figure 88. Installing the Riser 2a/2c
4. For Riser 2d, reconnect the cable and holding the touch points, align the expansion card riser with the connector and the
riser guide pin on the system board. Lower the expansion card riser into place until the expansion card riser connector is fully
seated in the connector.
Figure 89. Installing the Riser 2d
5. For Riser 2e, reconnect the cable and holding the touch points, align the expansion card riser with the connector and the
riser guide pin on the system board. Lower the expansion card riser into place until the expansion card riser connector is fully
seated in the connector.
Installing and removing system components 127
