UG-1026
•
The user can enable or disable some of the components by
clicking associated controllable graphics. Controllable
graphics do not automatically start a register write operation
and the user must click the Apply Changes button or the
PLL Set button to produce the related register writes.
When a controllable graphic displays as gray (see Figure 13),
the component is disabled. When a controllable graphic
displays as blue (see Figure 14), the component is enabled.

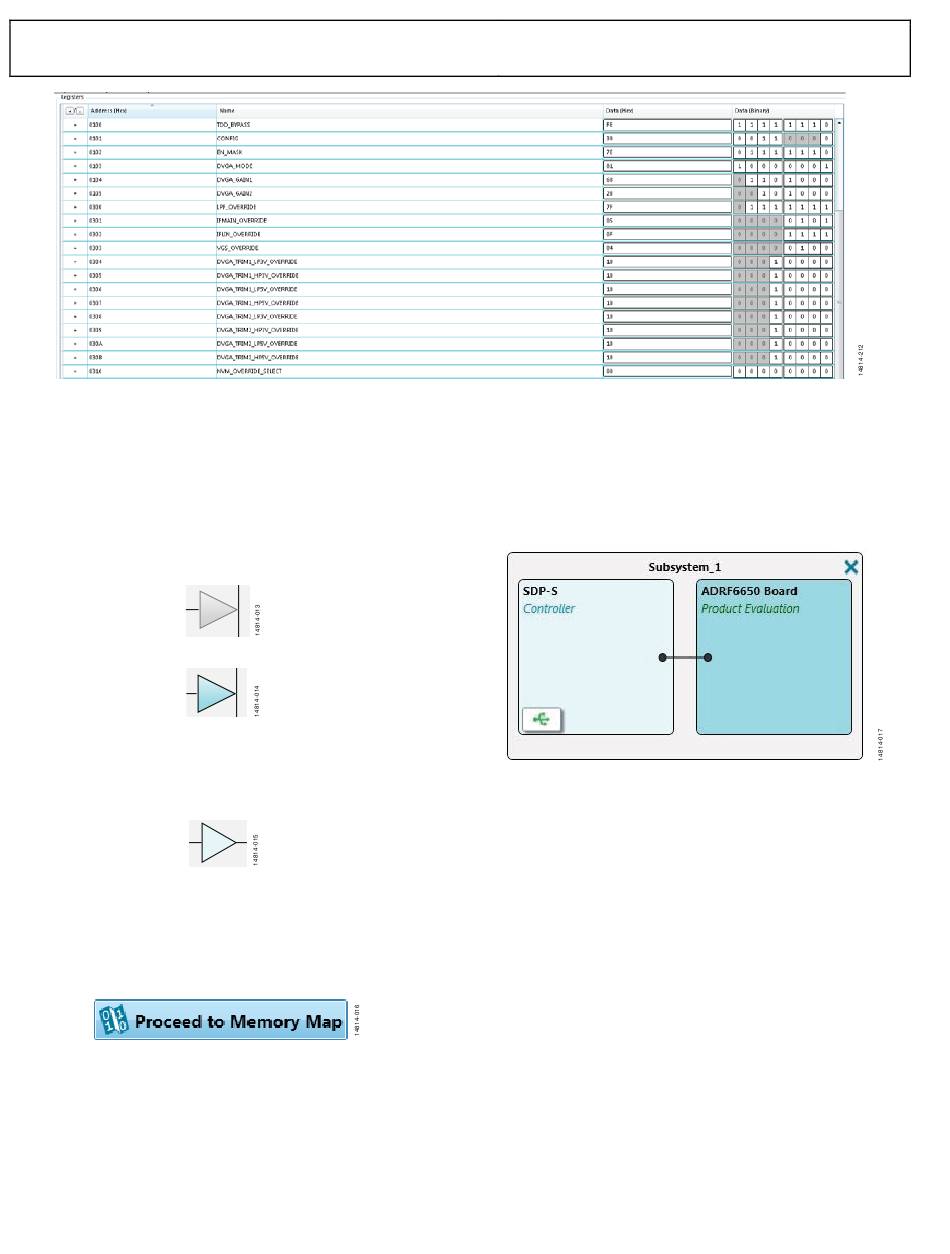

Figure 13. Disabled Component
Figure 14. Enabled Component
Some of the components have a pale blue color
(see Figure 15), indicating the graphical object is not
controllable by clicking on it.
Figure 15. Noncontrollable
ADRF6650 Memory Map Tab
The Proceed to Memory Map button (see Figure 16) in the
ADRF6650 tab directs the user to the
for bit control of the register map (see Figure 12).
Figure 16. Proceed to Memory Map Button
The register write and reads are performed with the + and −
buttons of the ADRF6650 Memory Map tab (see Figure 12). All
changes made in the GUI simultaneously apply to the
Memory Map tab and changes made in the
Map tab simultaneously apply to the GUI.
Figure 12. ADRF6650
ADRF6650 memory map
ADRF6650
ADRF6650 Memory
Rev. A | Page 8 of 17
ADRF6650-EVALZ
Memory Map Tab

CHECKING THE USB CONNECTIVITY

If the user encounters an error while configuring the device,
check the USB connectivity of the evaluation board under the
System tab (see Figure 7). Figure 17 shows the Subsystem_1
window where the user can observe the connectivity of the
SDP-S board and the ADRF6650-EVALZ.
Figure 17. ADRF6650 ACE
In the SDP-S Controller pane, there is a USB button. When the
button is green, the USB is connected. Clicking the USB button
reveals the connection options menu between the
controller board and the evaluation board. Ensure the
ADRF6650 Board option in the System tab is selected. The
ADRF6650 Board (Local Only) option does not provide
connectivity.
Users can also check USB connectivity in the status bar of the
software, located in the bottom left of the GUI. State, which
indicates the USB connectivity, must show Good at all times.
UPDATES TO THE ACE
Analog Devices periodically updates the
device plug-ins to ensure the best possible user experience.
Update the ACE software if there is indication of a new version
when running the ACE software.
User Guide
GUI System Tab
SDP-S
SOFTWARE PLUG-INS
ACE software and the
ACE
